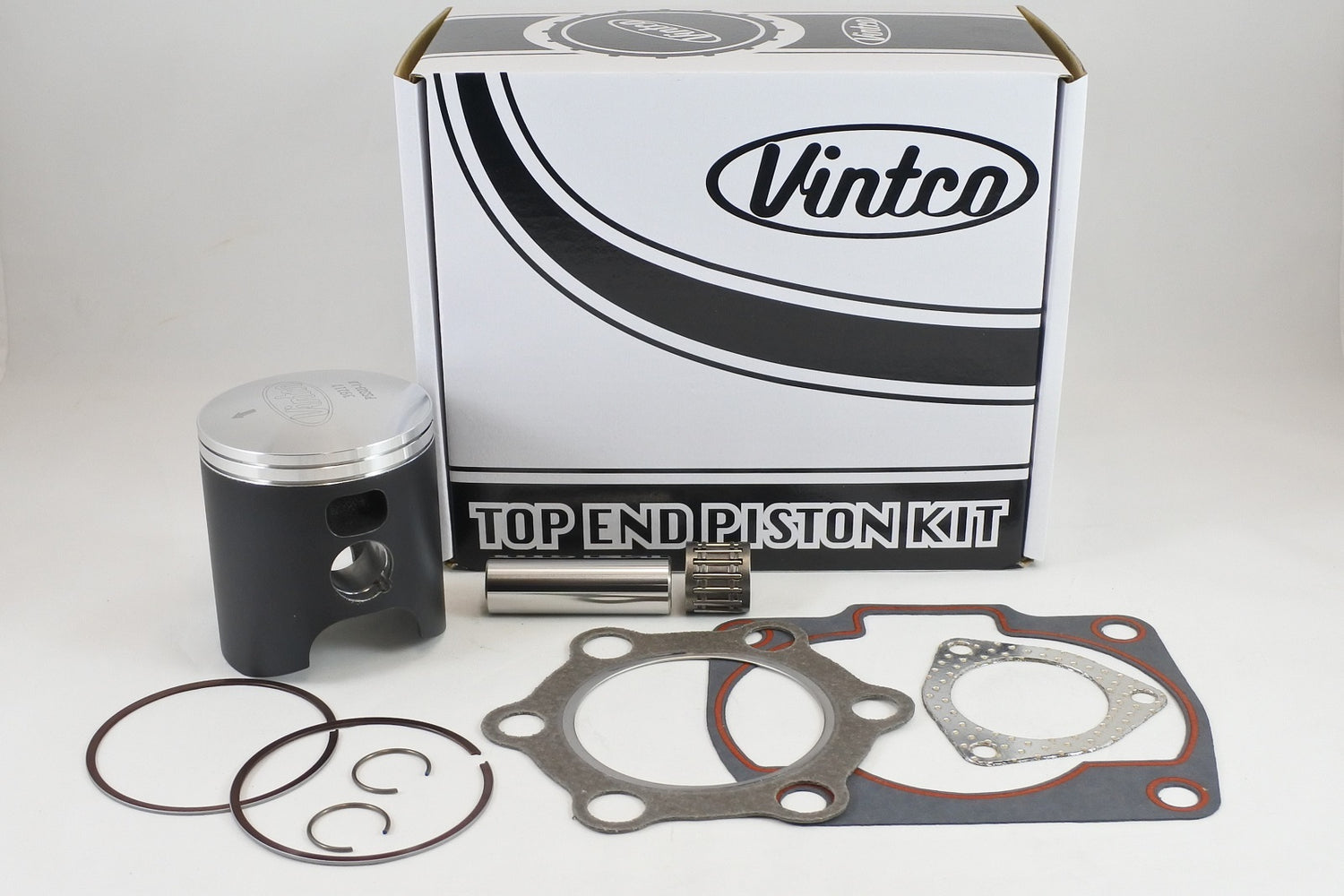

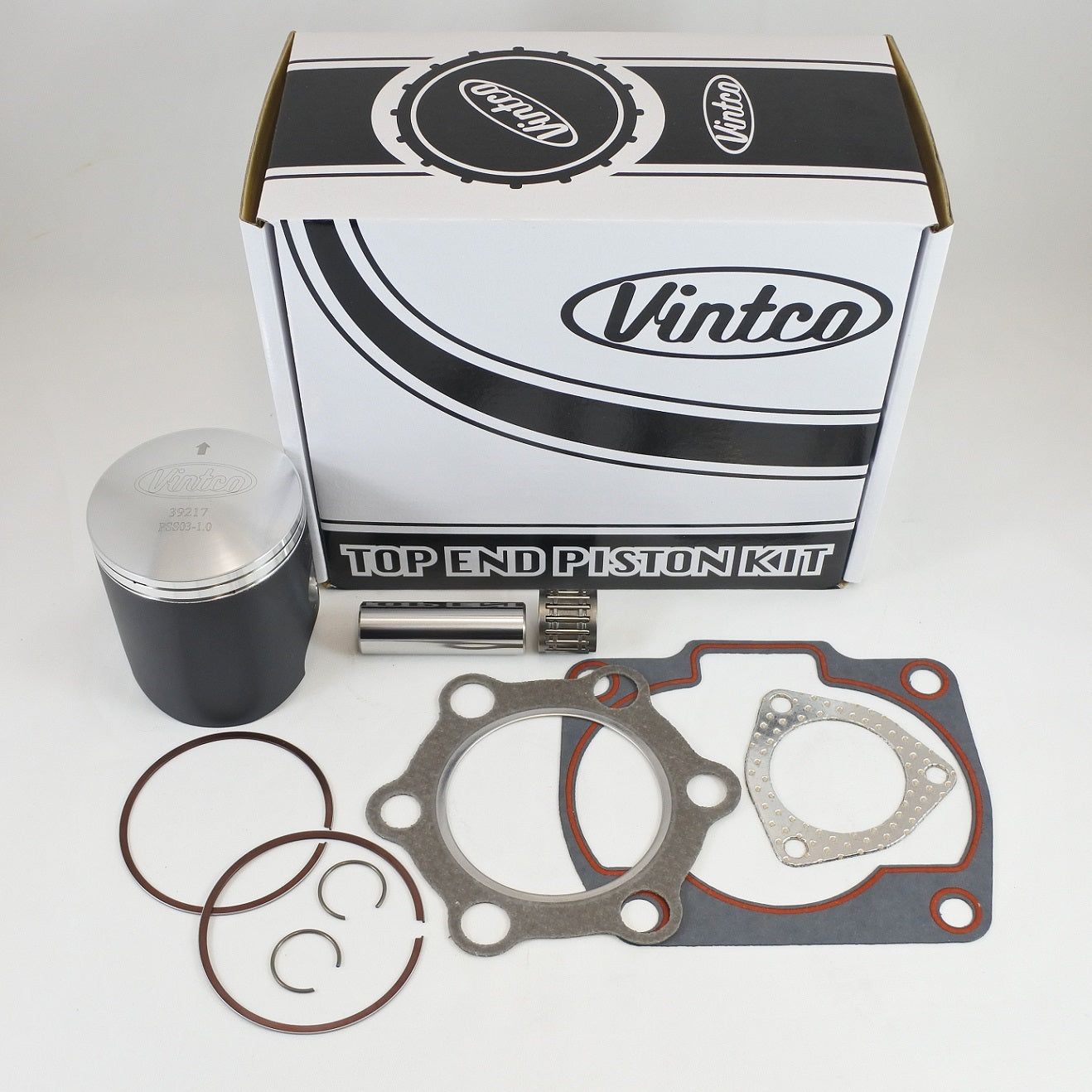

This top end piston kit is designed for the 1981 Suzuki RM250 and supplies the main components required for a top-end rebuild in one package. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. All components are produced with modern materials and manufacturing methods for OEM-level or better fitment and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Supplied as a single kit to simplify rebuild work
• OEM cross-reference numbers provided for fitment verification
• Kit price is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS05-1.0
• Piston size: 68.0 mm
• Oversize: 1.0 mm
• Piston measurement: 67.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14202
• Base gasket: 11241-14201
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18014

Vehicle Fitments

• 1981 Suzuki RM250
