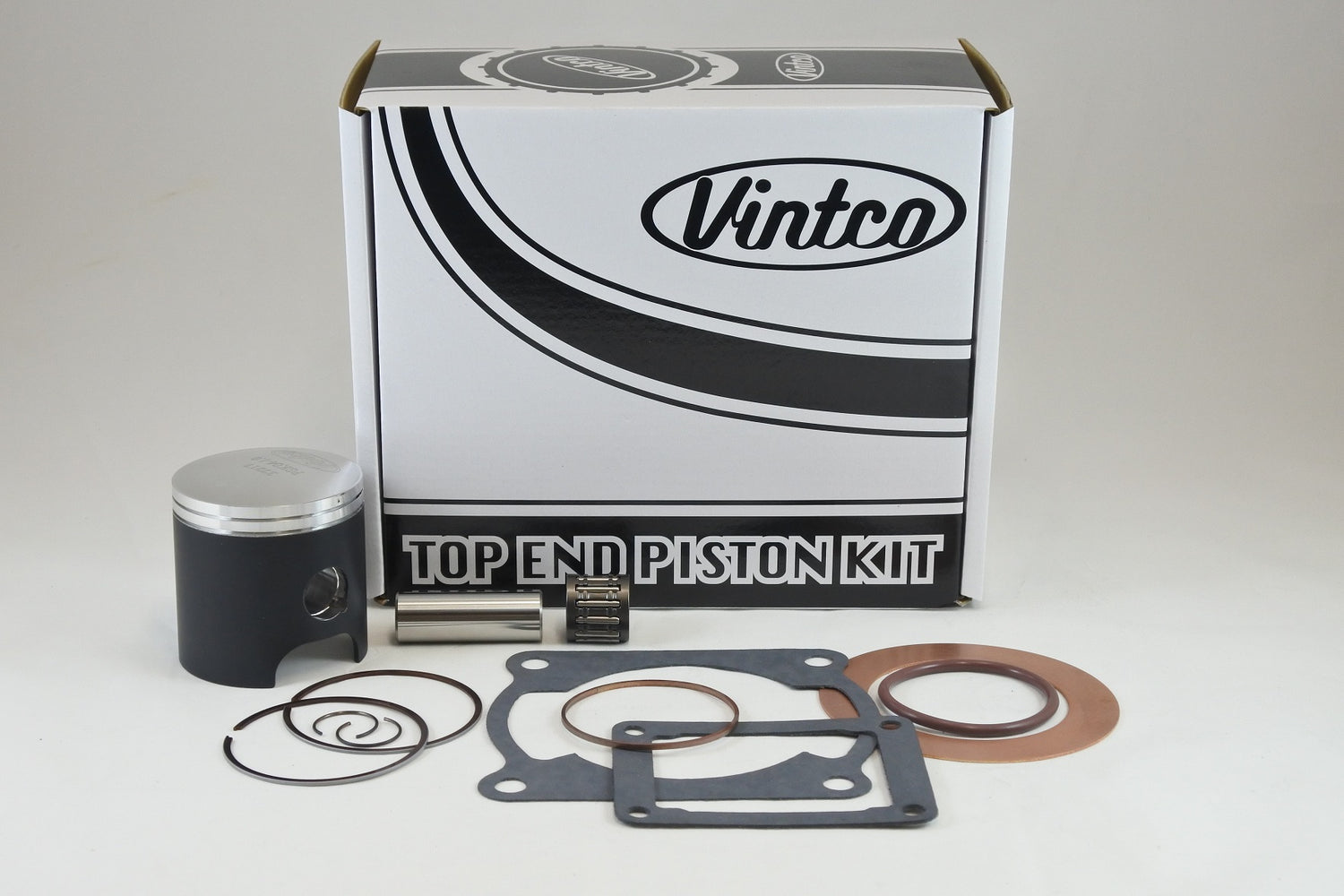

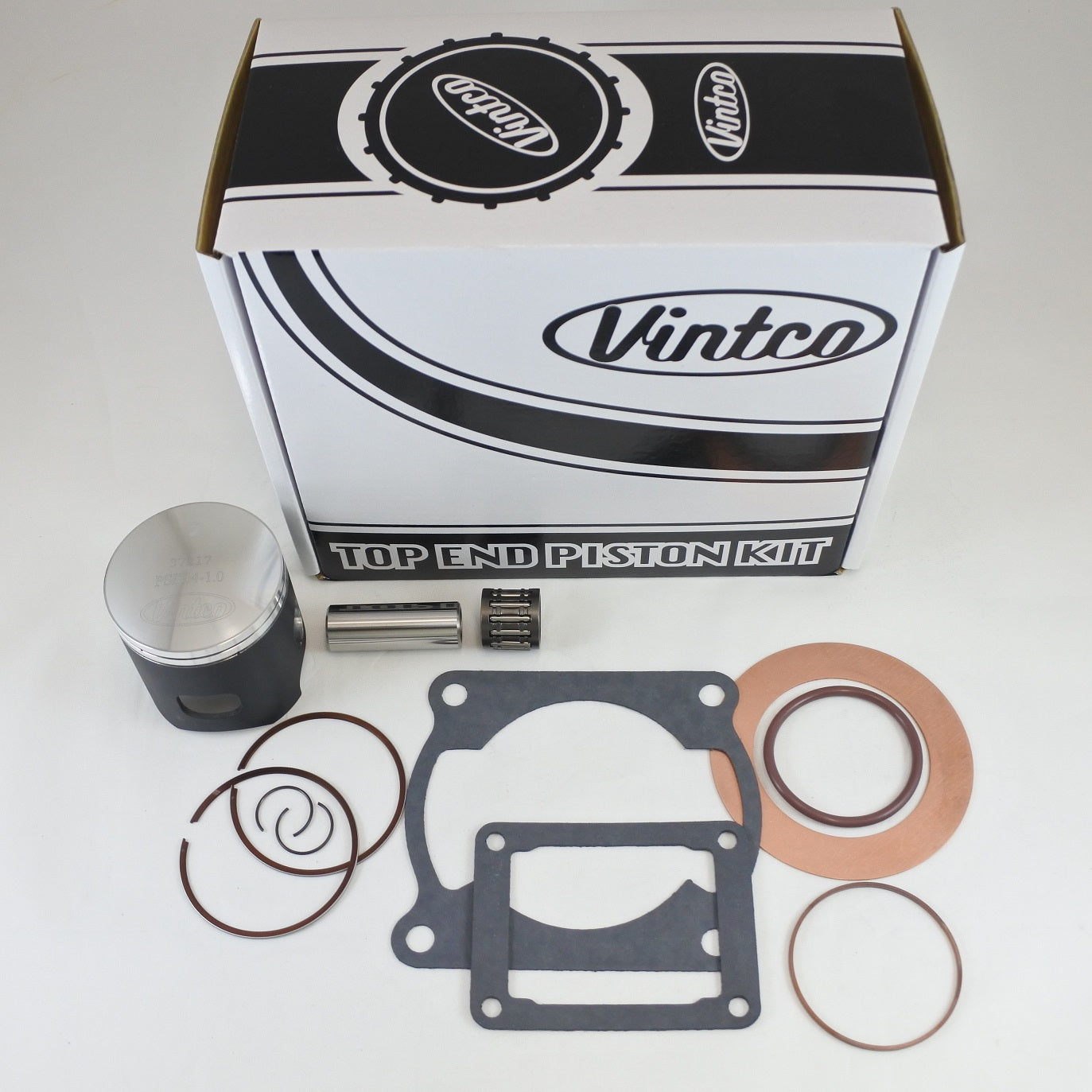

Complete top-end piston kit for the 1981 Kawasaki KX125, supplied with the components required for a top-end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top-end bearing, and a full top-end gasket kit comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance, and the kit is priced 10% lower than purchasing the items individually.

Features

• Complete kit for top-end rebuilds
• Includes piston, rings, pin and clips
• Includes top-end bearing
• Includes full top-end gasket kit
• Includes head gasket, base gasket, intake gasket and exhaust gaskets
• Designed for OEM-equivalent or better fit and performance
• More size options are available
• Kit price includes a 10% saving compared to buying the components individually

Specifications

• VintCo Part Number: KTK06-1.0
• Piston diameter: 57.0 mm
• Oversize: +1.0 mm
• Actual piston size: 56.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11004-1023
• Base gasket: 11009-1175
• Intake gasket: 11009-1018
• Exhaust gasket: 670E3045
• Exhaust gasket: 11009-1123
• Wrist pin bearing: 13033-1007

Vehicle Fitments

• 1981 Kawasaki KX125
