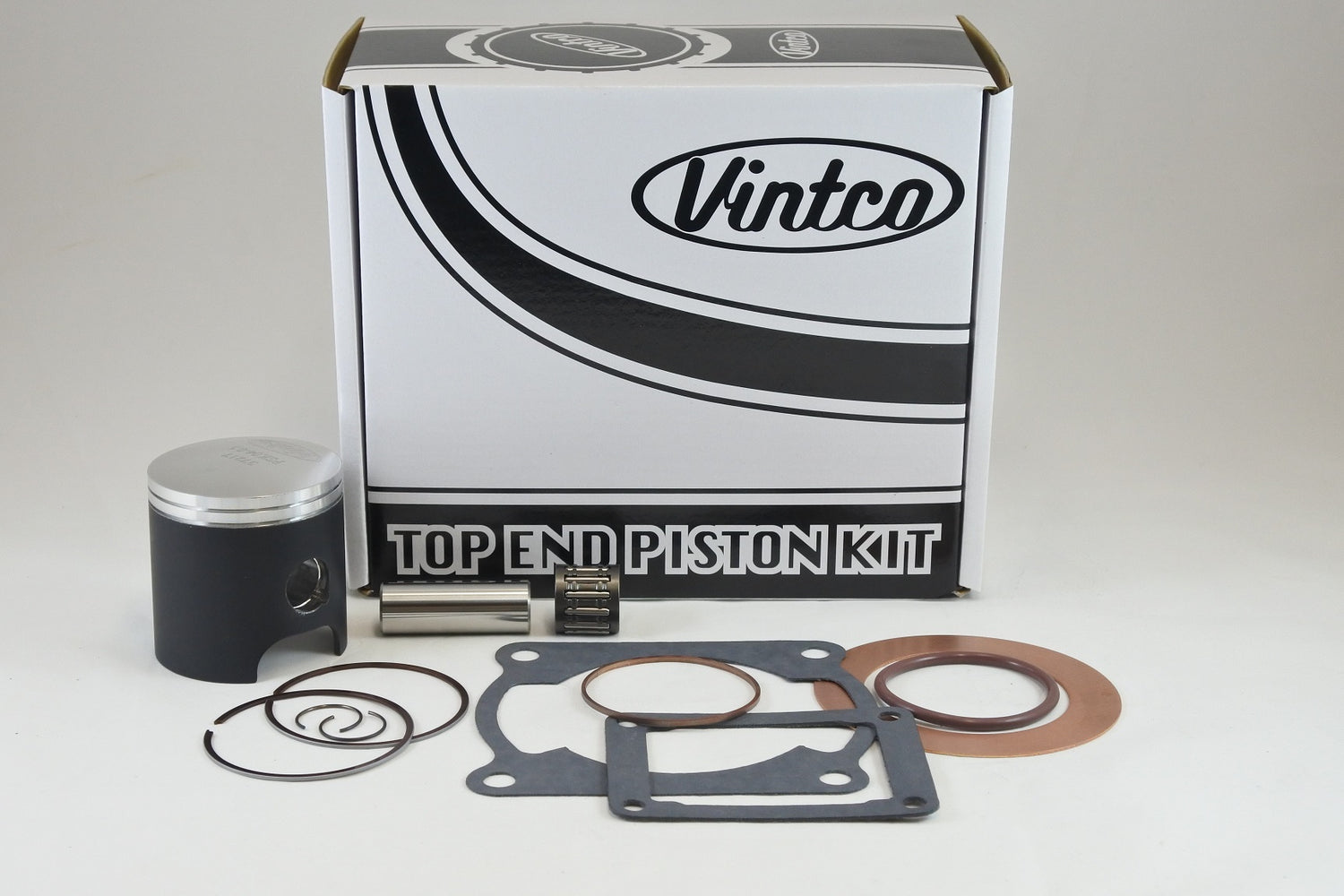

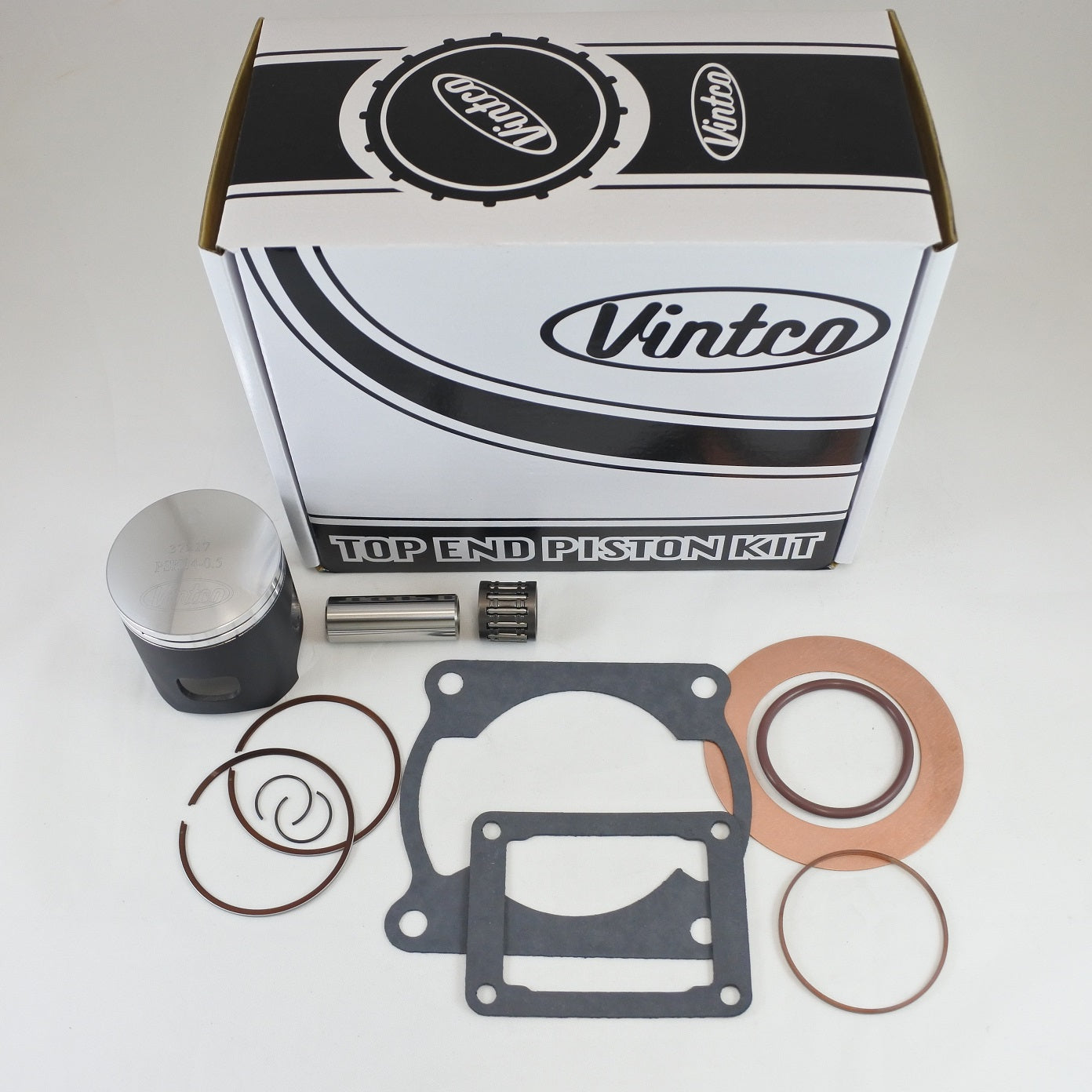

This VintCo top end piston kit is for the 1981 Kawasaki KX125 and is supplied as a complete package for a top-end rebuild. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit with head, base, intake and exhaust gaskets. The components are manufactured using modern materials and production methods for OEM or better fitment and performance, and the kit price is 10% lower than purchasing the included parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket, base gasket, intake gasket and exhaust gaskets
• Forged piston
• MoS2 coated for break-in
• Manufactured in Germany
• Designed for OEM or better fitment and performance
• Additional size options available

Specifications

• VintCo Part Number: KTK06-0.5
• Piston size: 56.5 mm
• Oversize: +0.5 mm
• Piston measurement: 56.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11004-1023
• Base gasket: 11009-1175
• Intake gasket: 11009-1018
• Exhaust gasket: 670E3045
• Exhaust gasket: 11009-1123
• Wrist pin bearing: 13033-1007

Vehicle Fitments

• 1981 Kawasaki KX125
