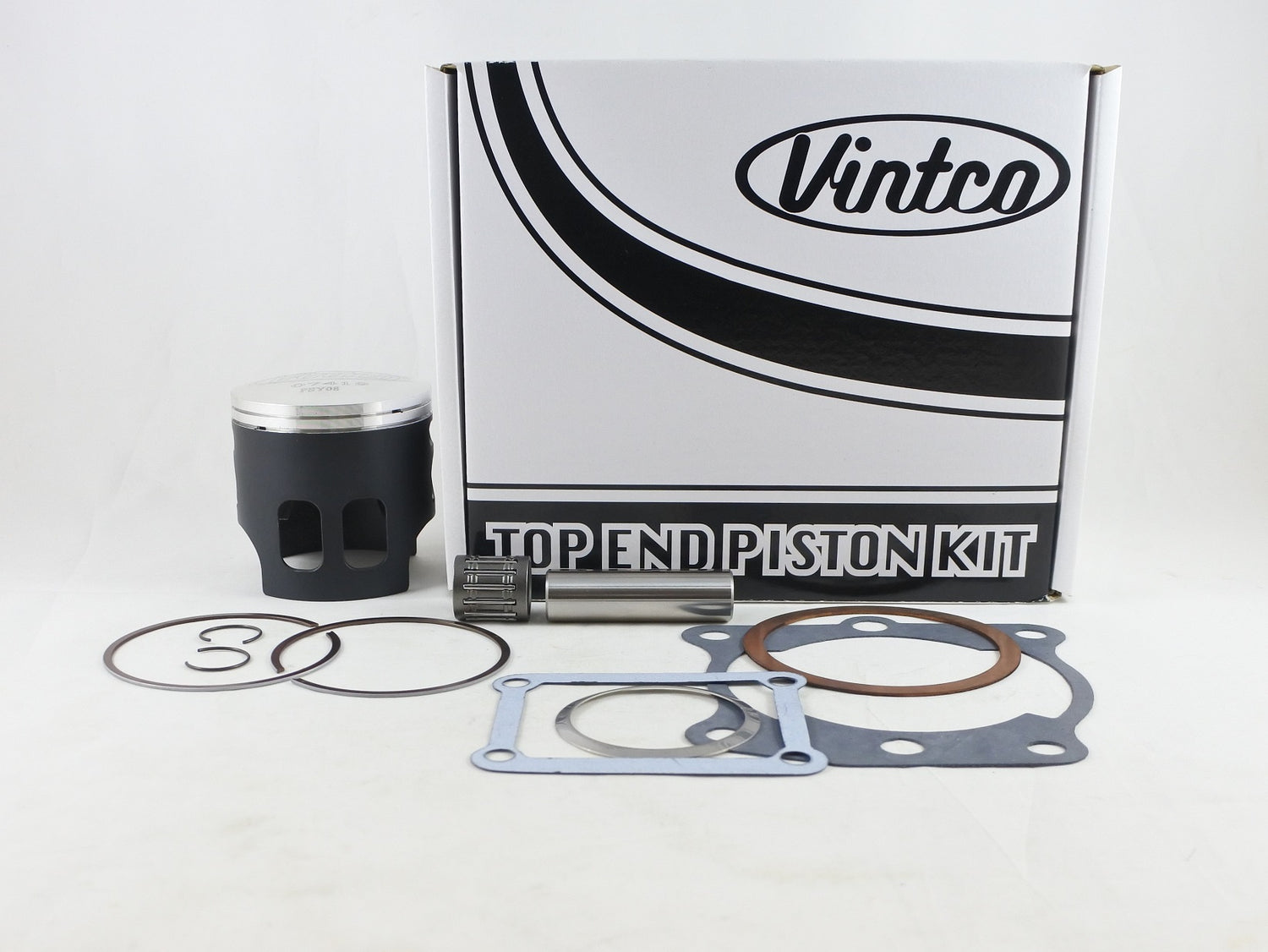

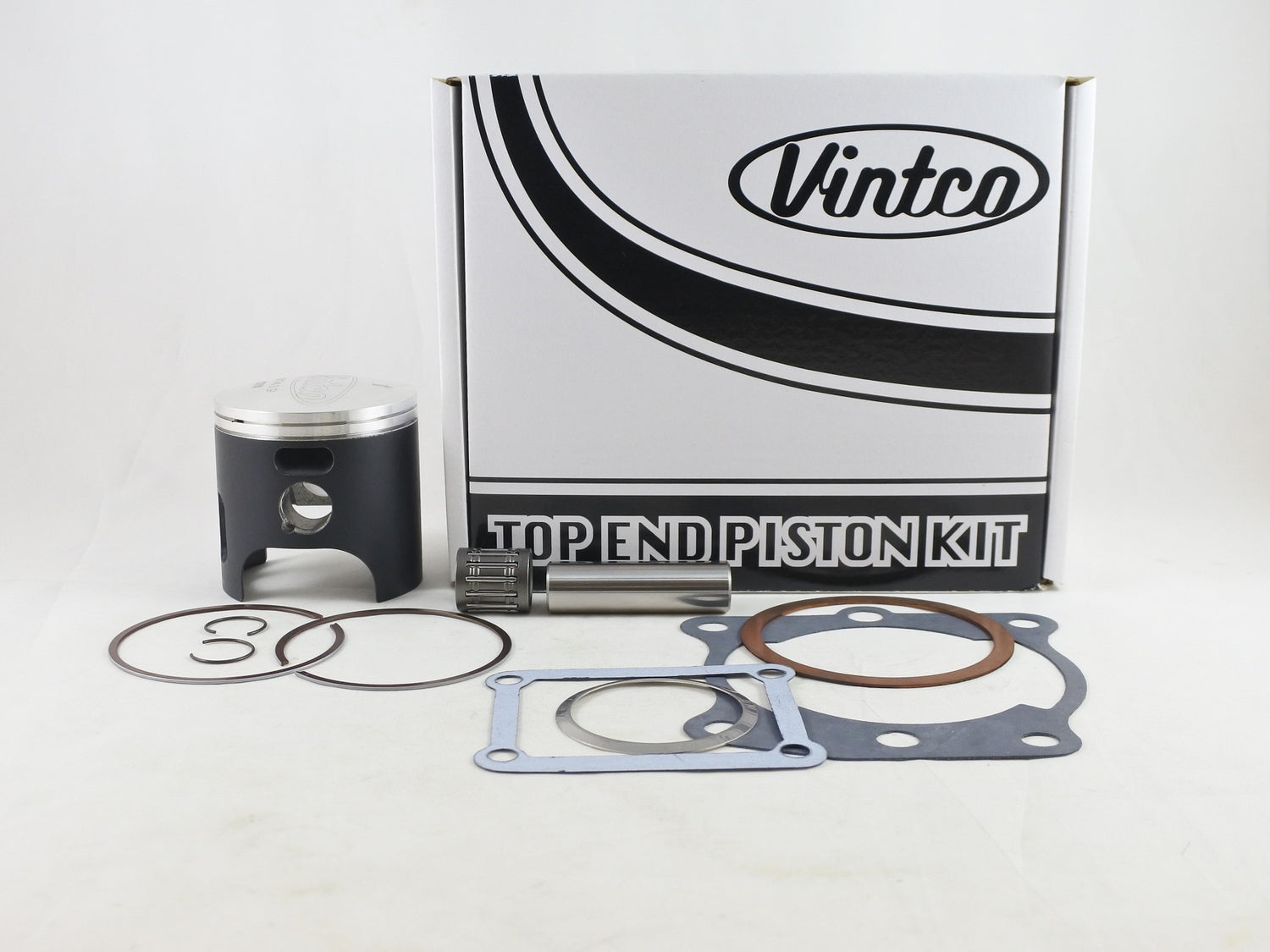

Top end piston kit for the 1980-1981 Yamaha IT175, supplied as a complete set with a forged piston, gasket set and wrist pin bearing. This 67.5 mm, 1.5 mm oversize kit is intended for top end servicing and includes a piston made in Germany with an MOS2 coating for break-in, along with the required cylinder head, cylinder base, intake and exhaust pipe gaskets.

Features

• Complete top end piston kit
• Forged piston
• Piston made in Germany
• MOS2 coated for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• Kit pricing includes a 10% discount compared with the individual items

Specifications

• VintCo Part Number: KTY28-1.5
• Nominal piston size: 67.5 mm
• Oversize: 1.5 mm over
• Measured piston size: 67.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 3R6-11181-00-00
• Cylinder Base Gasket: 3R3-11351-01-00
• Intake Gasket: 3R3-13621-01-00
• Exhaust Pipe Gasket: 3R6-14613-01-00

Vehicle Fitments

• 1980 Yamaha IT175
• 1981 Yamaha IT175
