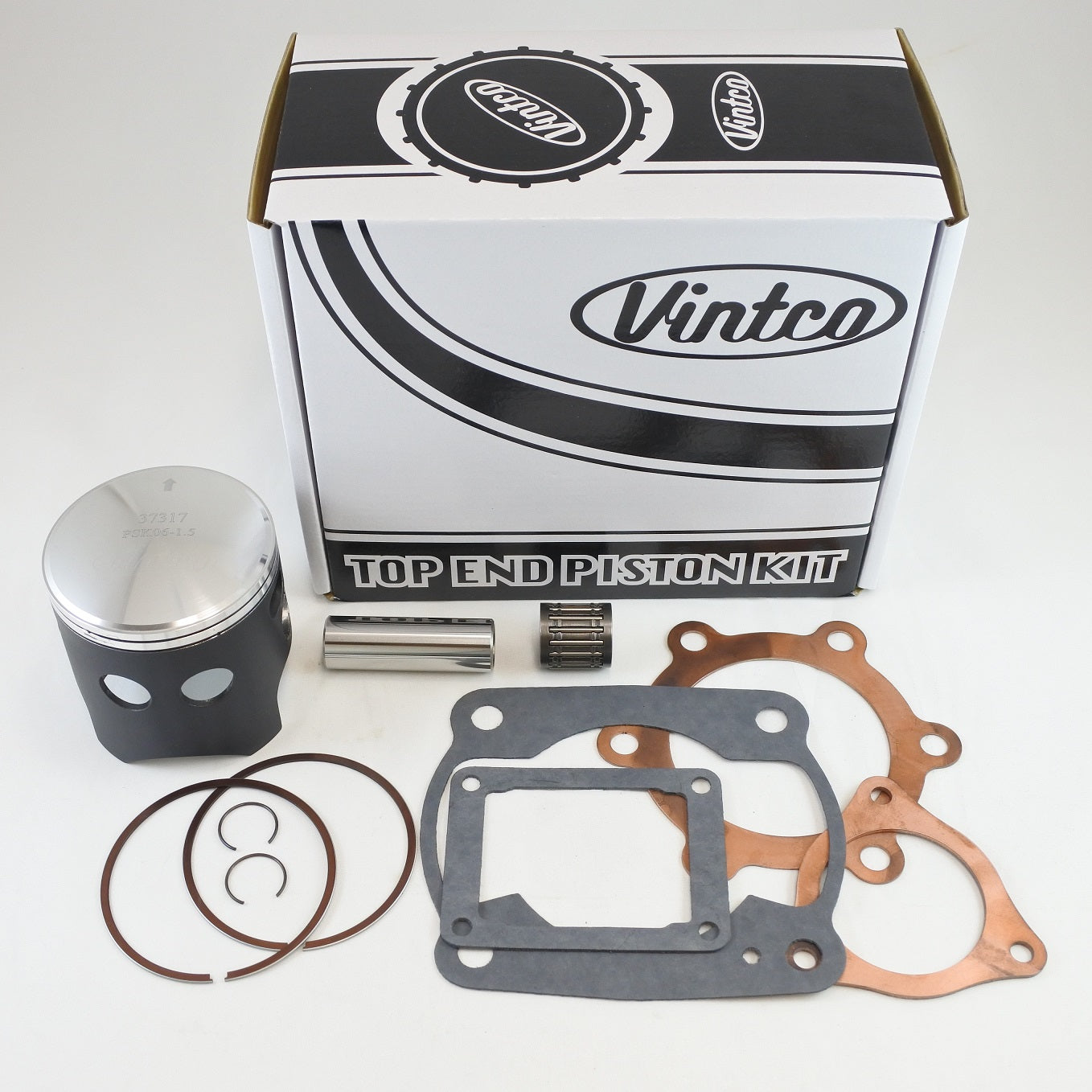

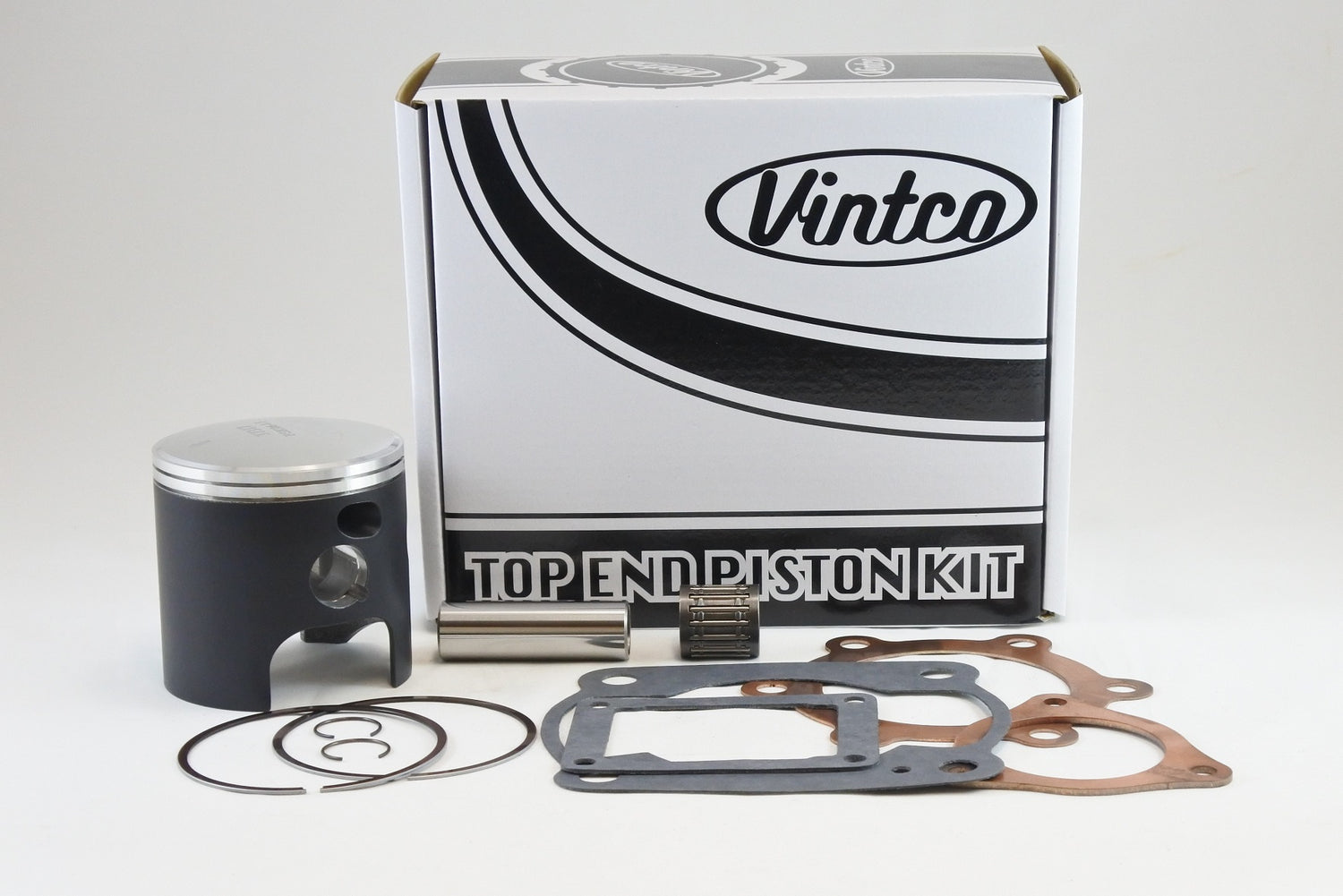

VintCo top end piston kit KTK08-1.5 is a complete rebuild kit for 1980–1981 Kawasaki KX250 models. It includes a piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. This kit is supplied in a 71.5 mm, +1.5 mm oversize configuration, with OEM cross-reference numbers provided for key components. Components are manufactured using modern materials and production methods for OEM-equivalent or better fit and performance. Kit pricing reflects a 10% reduction compared with purchasing the components individually, and other size options are available.

Features

• Complete top end rebuild kit
• Includes VintCo piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Head gasket included
• Base gasket included
• Intake gasket included
• Exhaust gasket included
• Intended for top end rebuilds
• Produced using modern manufacturing techniques
• Designed for OEM-equivalent or better fit and performance
• Kit price includes a 10% reduction compared with individual component pricing
• Additional size options available

Specifications

• VintCo Part Number: KTK08-1.5
• Nominal piston size: 71.5 mm
• Oversize: +1.5 mm
• Piston measurement listed: 71.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11004-1012
• Base gasket: 11009-038
• Intake gasket: 11009-1018
• Exhaust gasket: 11009-1017
• Wrist pin bearing: 13033-1010

Vehicle Fitments

• 1980 Kawasaki KX250
• 1981 Kawasaki KX250
