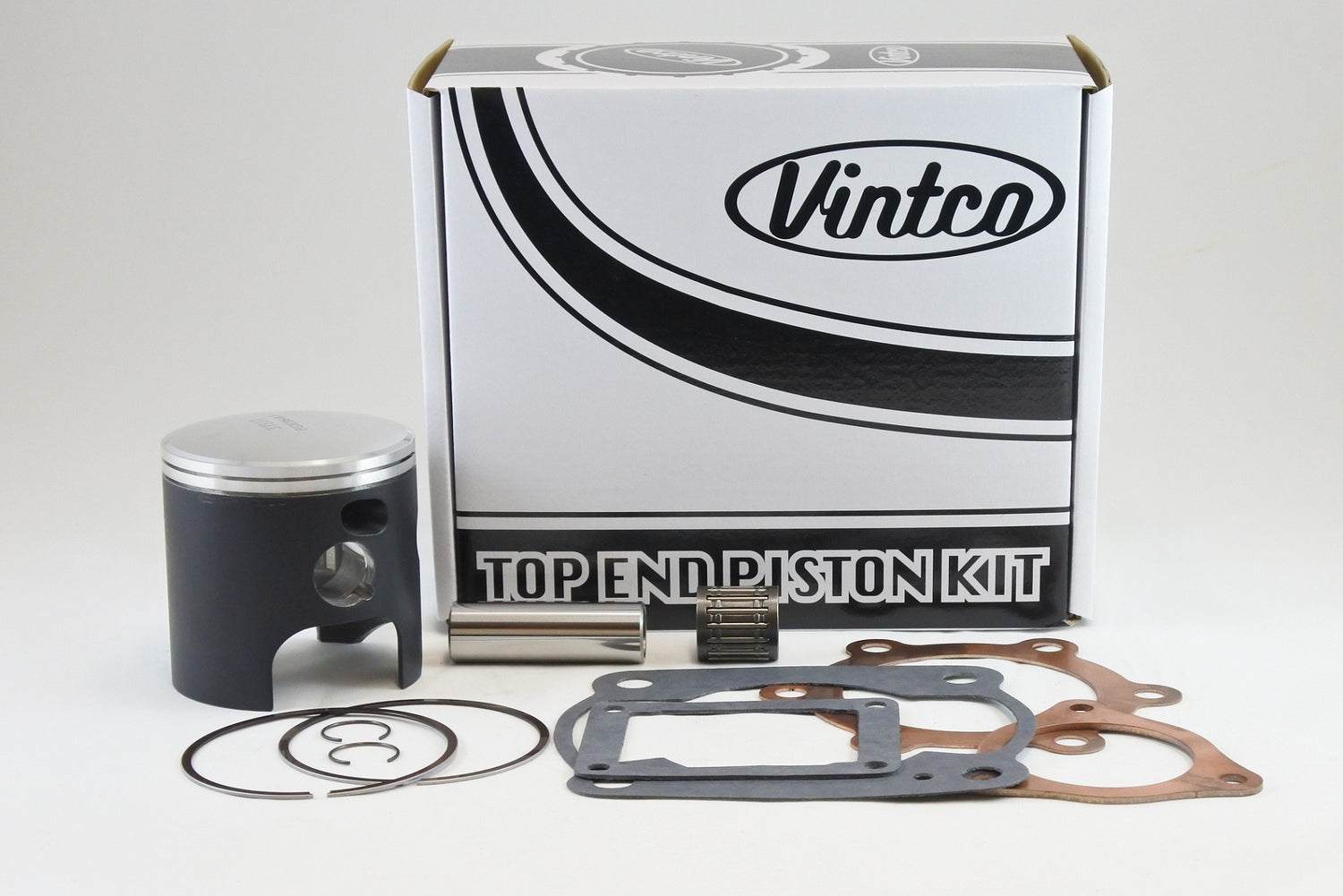

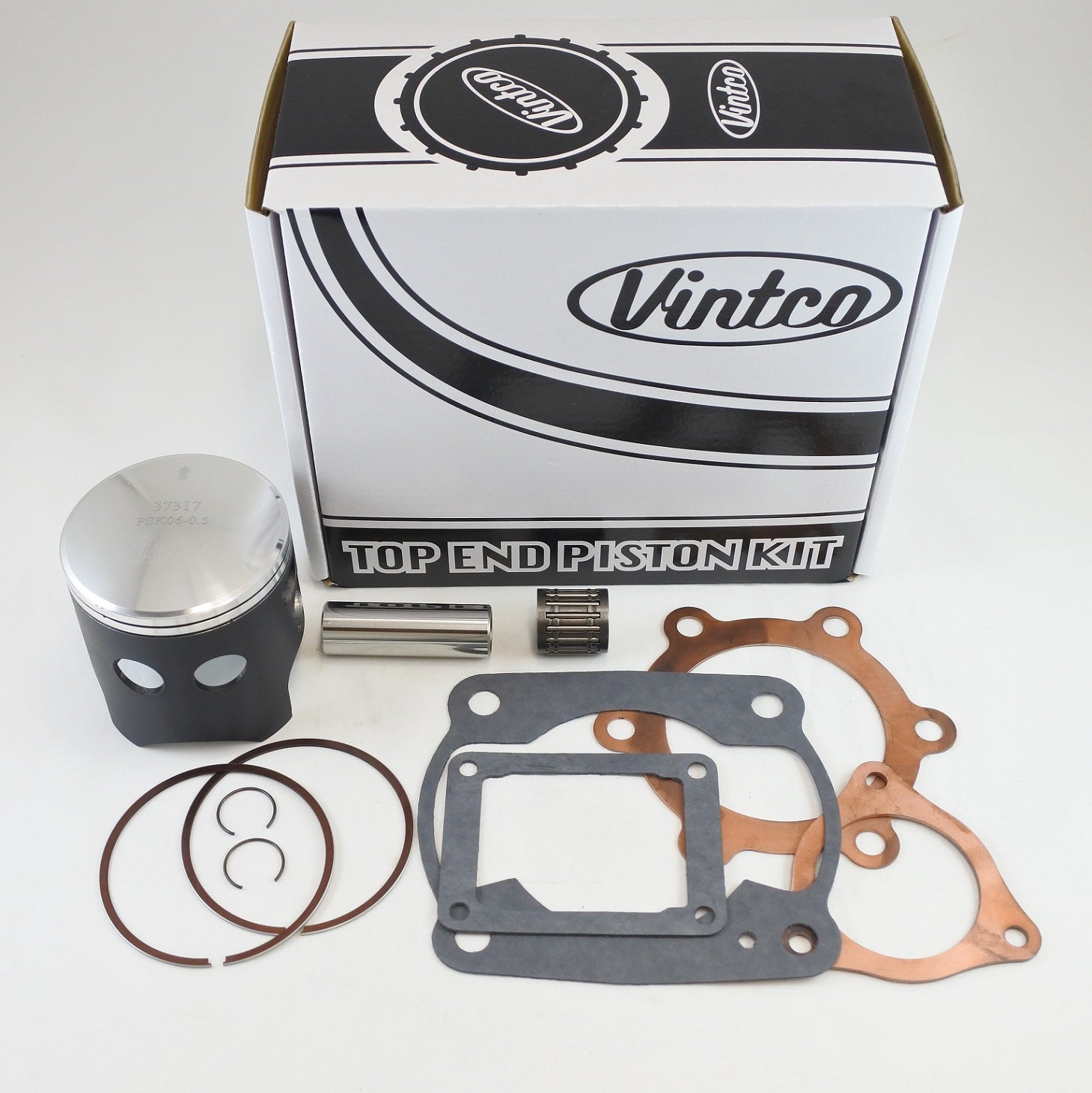

VintCo top end piston kit KTK08-0.5 is a complete rebuild kit for 1980-1981 Kawasaki KX250 models, supplied for a 70.5 mm (+0.5 mm oversize) top-end rebuild. The kit includes a piston, rings, pin and clips, a top end bearing, and a full gasket set for the head, base, intake and exhaust. The components are produced using modern materials and manufacturing techniques for OEM-equivalent fitment and performance, and the kit is priced 10% lower than purchasing the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, wrist pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket, base gasket, intake gasket and exhaust gasket
• MoS2-coated piston surface for running-in
• Intended to provide OEM-equivalent or better fitment and performance
• Kit price includes a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK08-0.5
• Product type: Top End Piston Kit
• Piston type: Forged
• Country of manufacture: Germany
• Nominal piston size: 70.5 mm
• Oversize: +0.5 mm
• Piston diameter: 70.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11004-1012
• Base gasket: 11009-038
• Intake gasket: 11009-1018
• Exhaust gasket: 11009-1017
• Wrist pin bearing: 13033-1010

Vehicle Fitments

• 1980 Kawasaki KX250
• 1981 Kawasaki KX250
