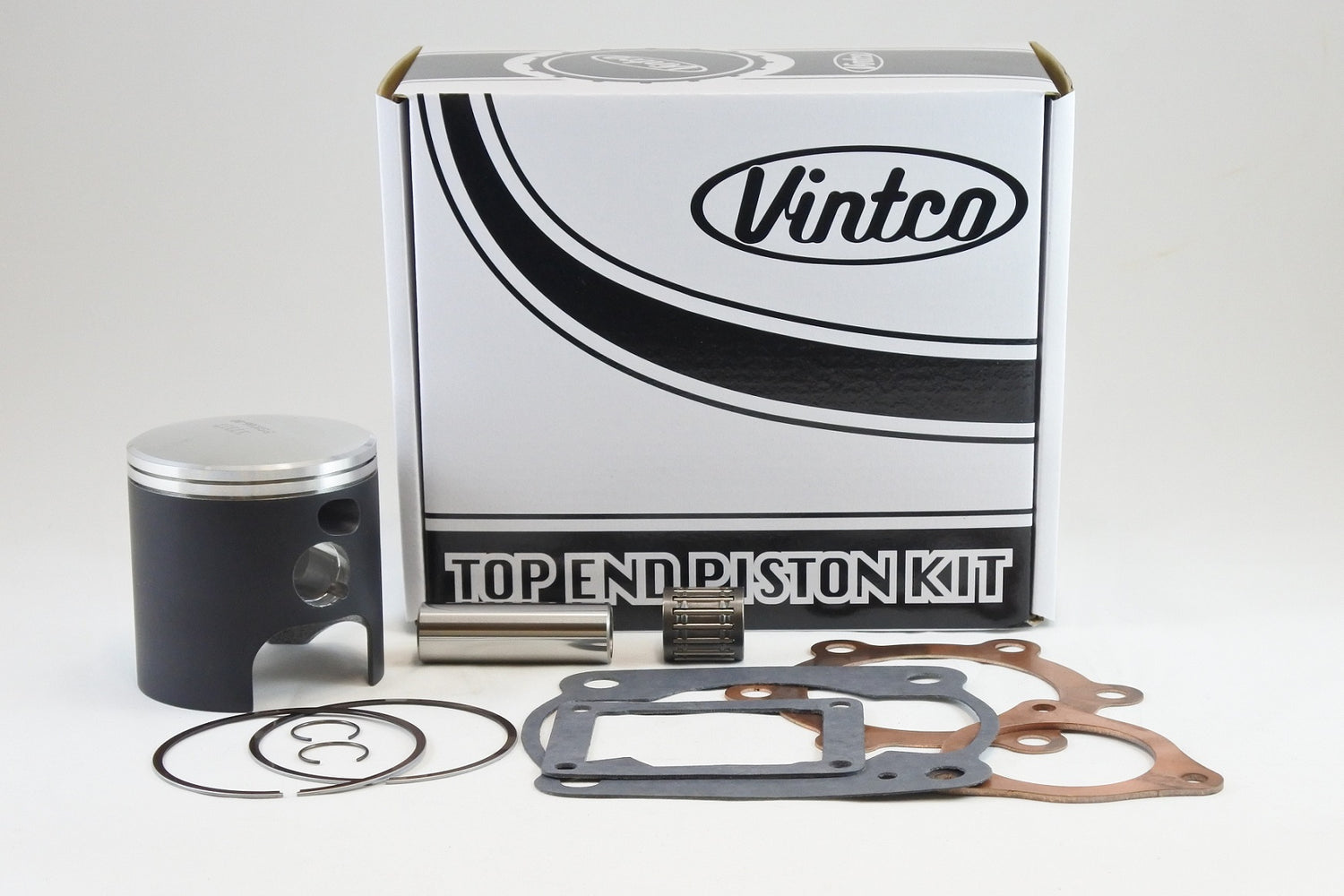

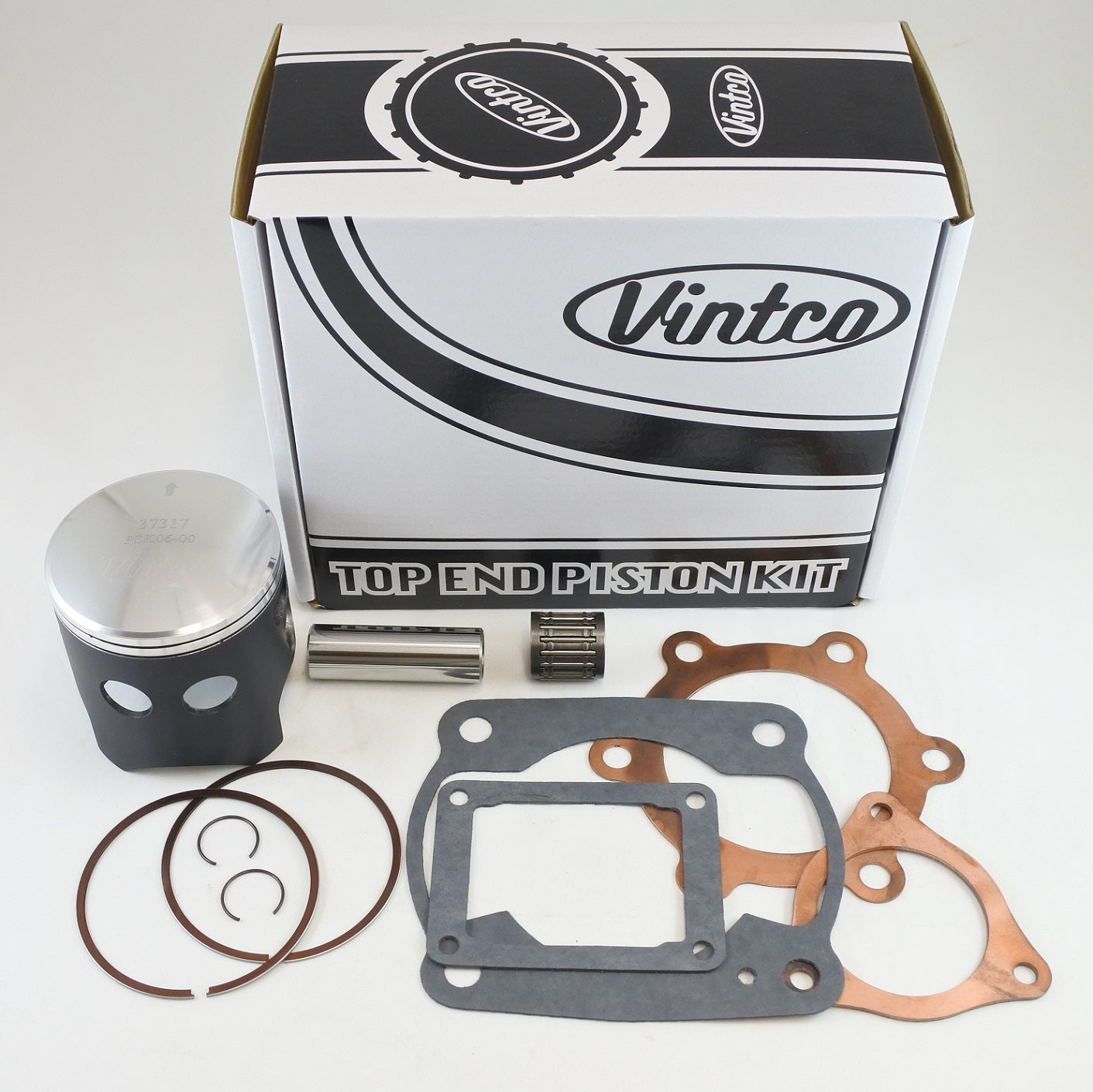

VintCo top end piston kit KTK08-00 is a complete standard-bore 70.0 mm rebuild kit for 1980-1981 Kawasaki KX250 models. It is supplied for top-end engine service and includes a piston assembly with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production methods for OEM-level or better fitment and performance.

Features

• Complete top-end rebuild kit
• Includes VintCo piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head, base, intake and exhaust gaskets
• Supplied as a complete package to simplify rebuild work
• OEM part numbers provided for exact fitment reference
• Kit price includes a 10% saving compared with purchasing the parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK08-00
• Product type: Top end piston kit
• Standard bore size: 70.0 mm
• Piston diameter: 69.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13001-1004
• Head gasket: 11004-1012
• Base gasket: 11009-038
• Intake gasket: 11009-1018
• Exhaust gasket: 11009-1017
• Wrist pin bearing: 13033-1010

Vehicle Fitments

• 1980 Kawasaki KX250
• 1981 Kawasaki KX250
