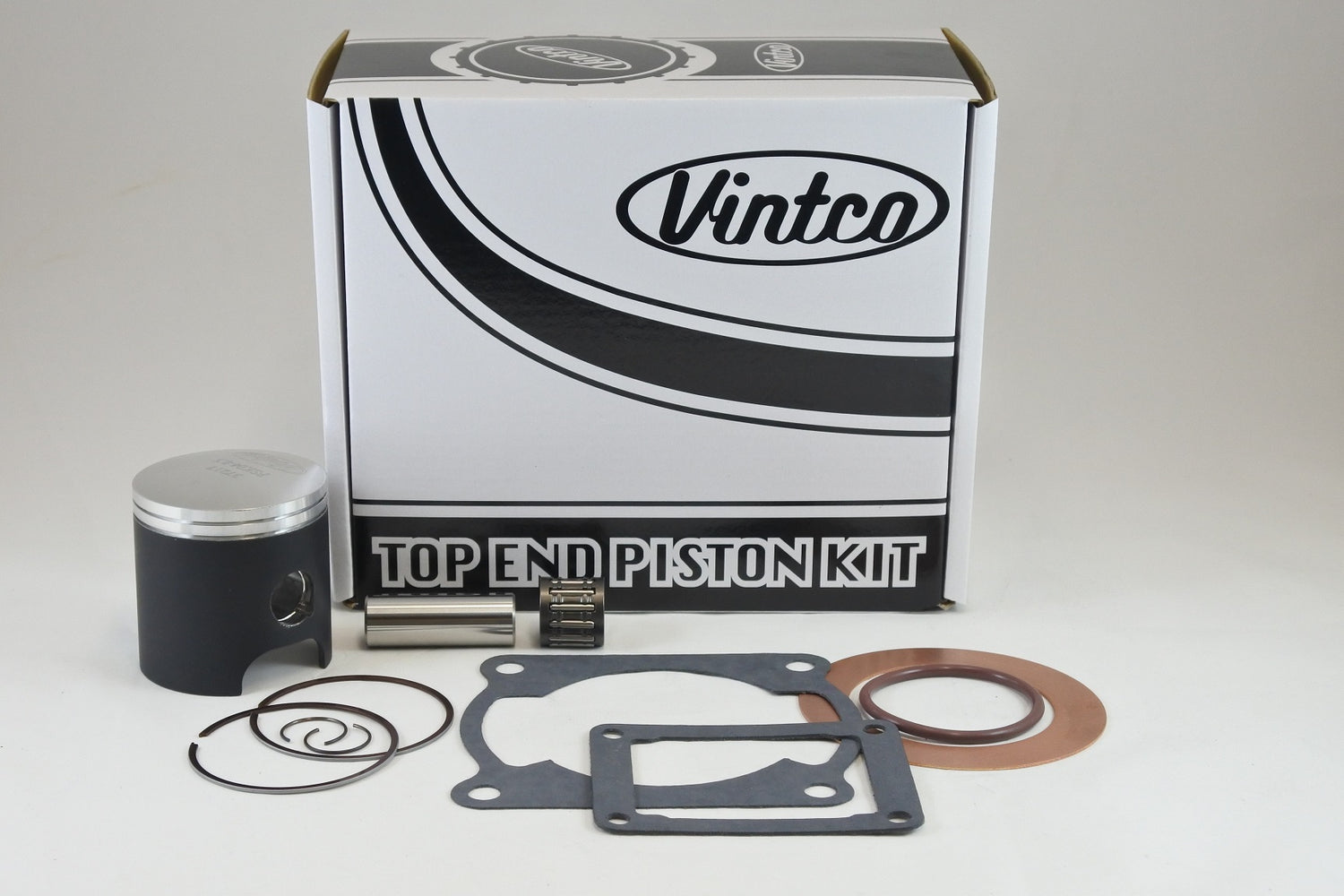

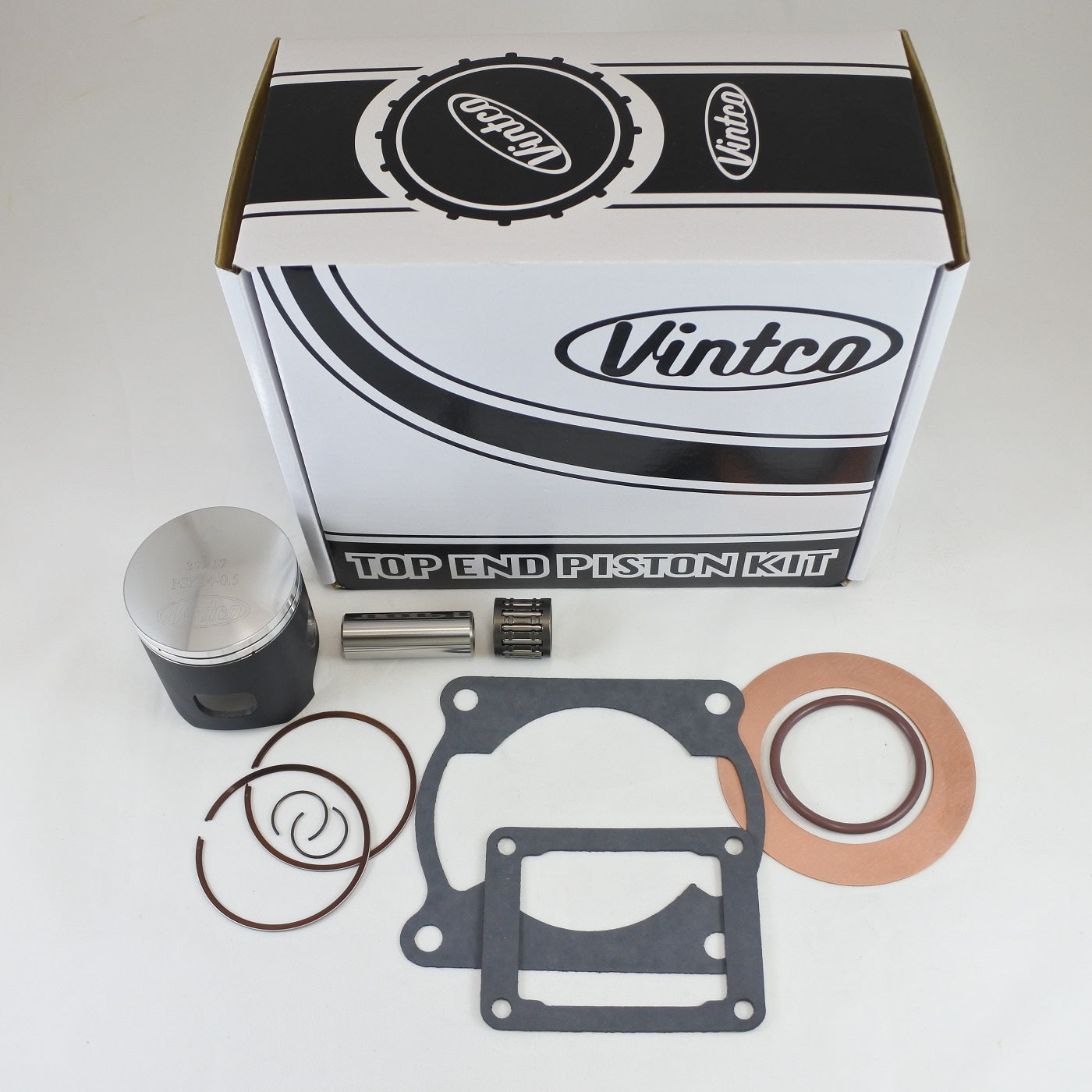

This VintCo top end piston kit is designed for the 1980 Kawasaki KX125 and is supplied as a complete rebuild package for top end service. It includes a VintCo piston kit with piston, rings, pin and clips, together with a top end bearing and a full top-end gasket set containing head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance, and the kit is priced at 10% less than purchasing the included items separately. Additional size options are also available.

Features

• Complete top end rebuild kit for the 1980 Kawasaki KX125
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust gasket
• Intended to simplify top end rebuild work
• Kit pricing is 10% lower than buying the included components individually
• OEM part numbers are provided for fitment verification

Specifications

• VintCo Part Number: KTK05-0.5
• Product type: Top end piston kit
• Piston size: 56.5 mm
• Oversize: +0.5 mm
• Piston measurement: 56.44 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 coated for break-in
• Piston manufacture: Made in Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11004-1023
• Base gasket: 11009-1175
• Intake gasket: 11009-1018
• Exhaust gasket: 670E3045
• Wrist pin bearing: 13033-1007

Vehicle Fitments

• 1980 Kawasaki KX125
