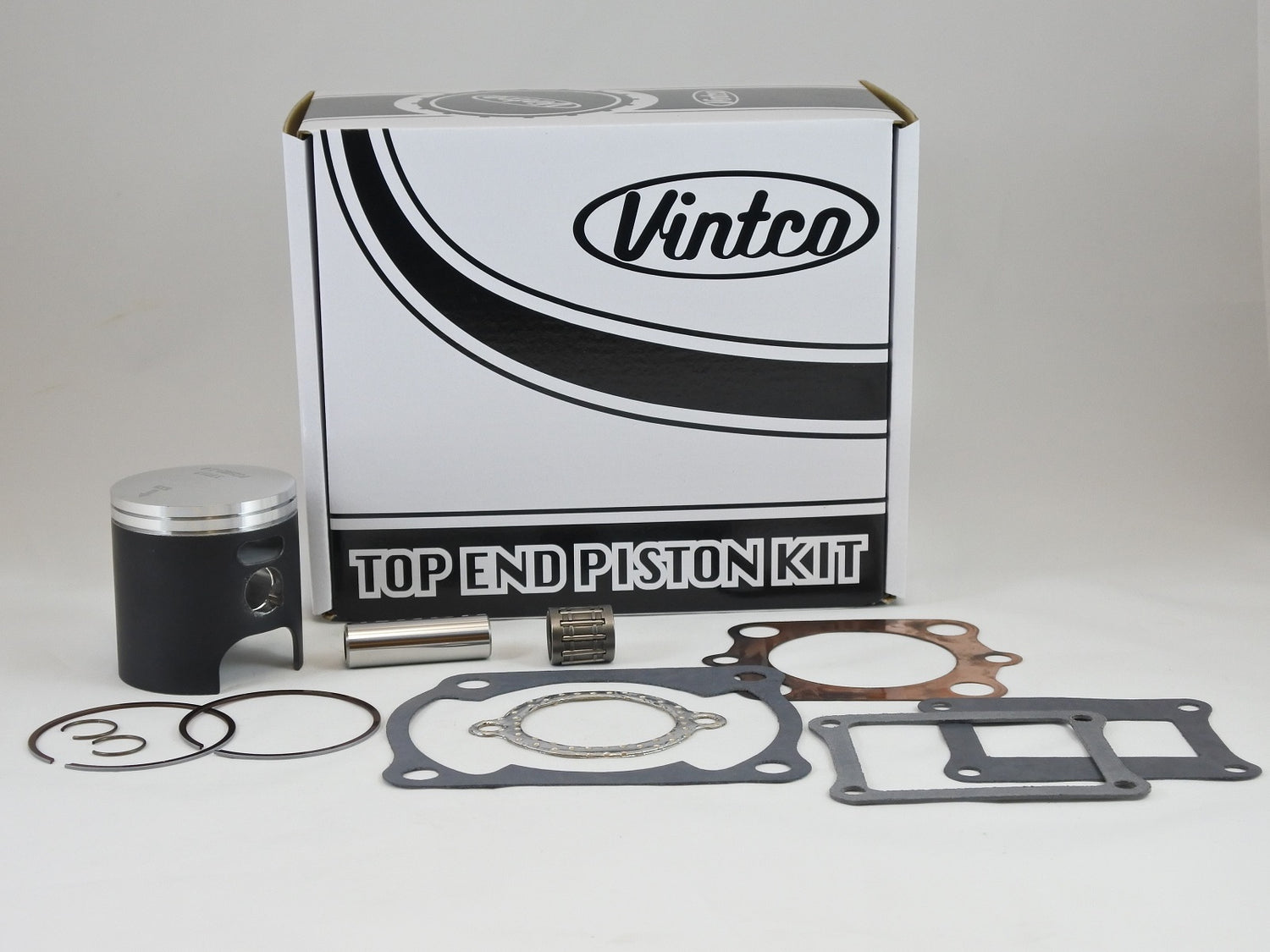

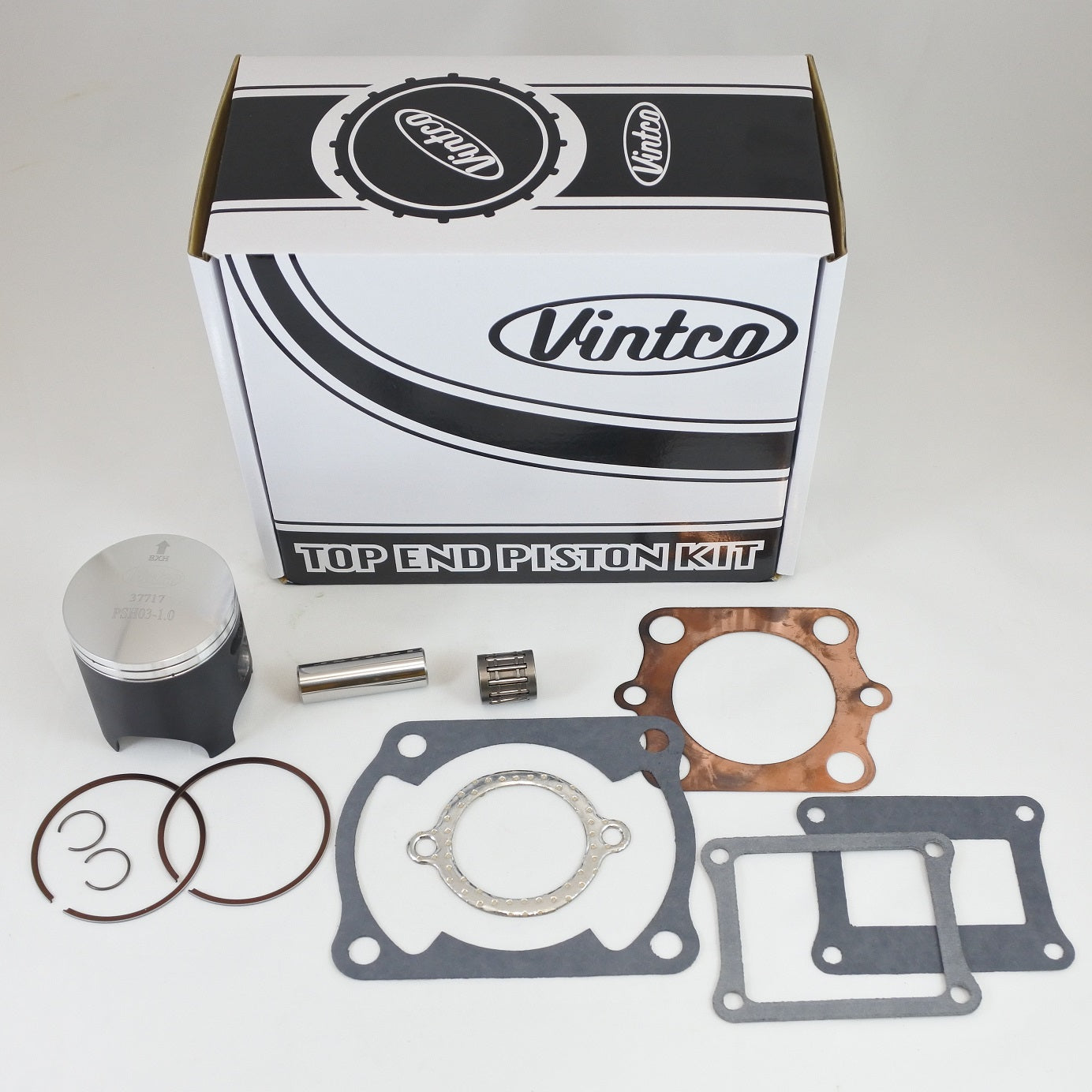

This top end piston kit is for the 1980 Honda CR125 and is supplied as a complete set for top-end rebuild work. It includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-equivalent or better fitment and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gaskets and exhaust gasket
• Designed for OEM-equivalent or better fitment and performance
• Kit pricing is 10% lower than purchasing the listed components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH04-1.0
• Piston type: Forged
• Piston coating: MoS2
• Country of manufacture: Germany
• Nominal piston size: 56.5 mm
• Piston size: 56.44 mm
• Oversize: +1.0 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12251-466-000
• Base gasket: 12191-444-306
• Intake gasket: 14131-444-306
• Intake gasket: 14132-444-306
• Exhaust gasket: 18291-466-306
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1980 Honda CR125
