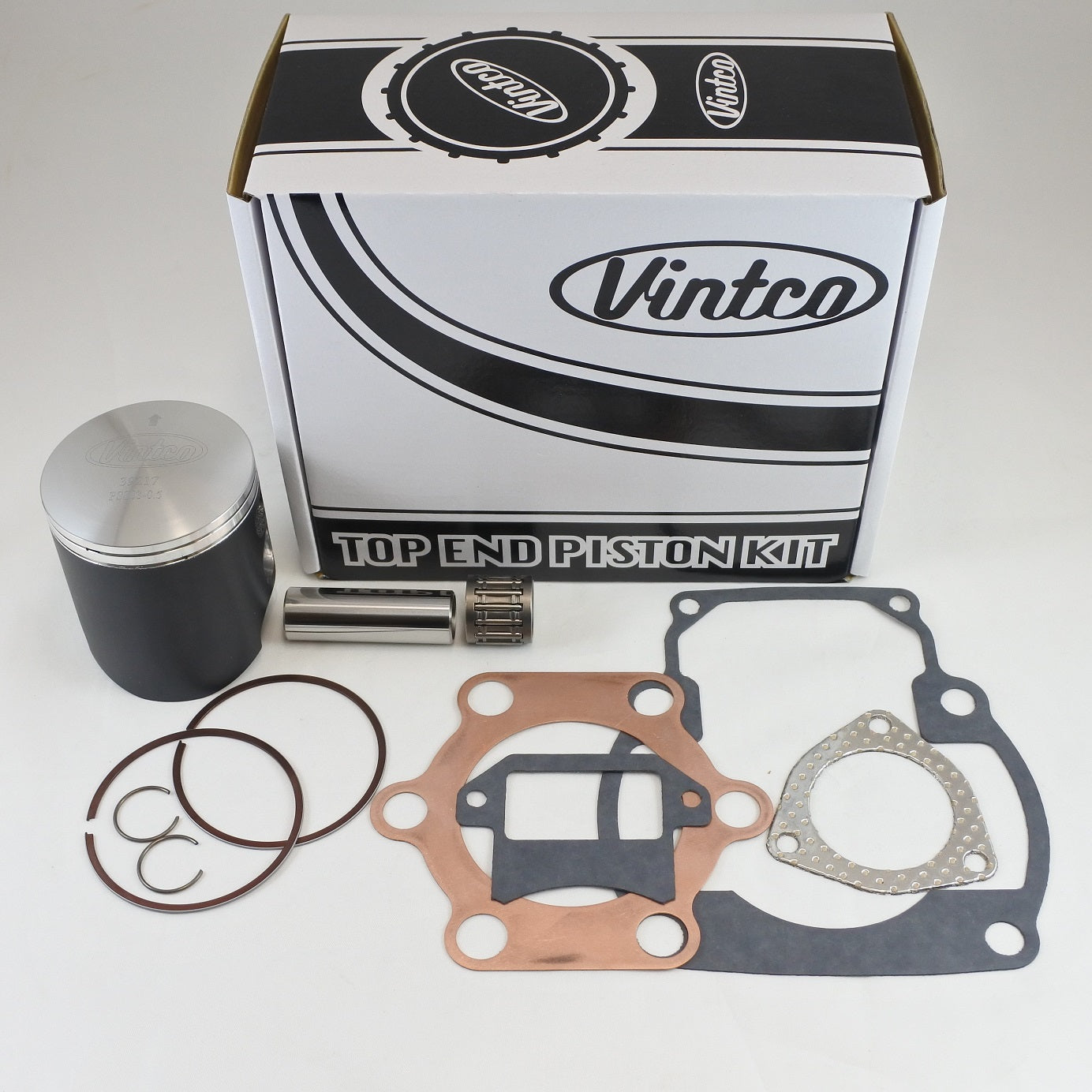

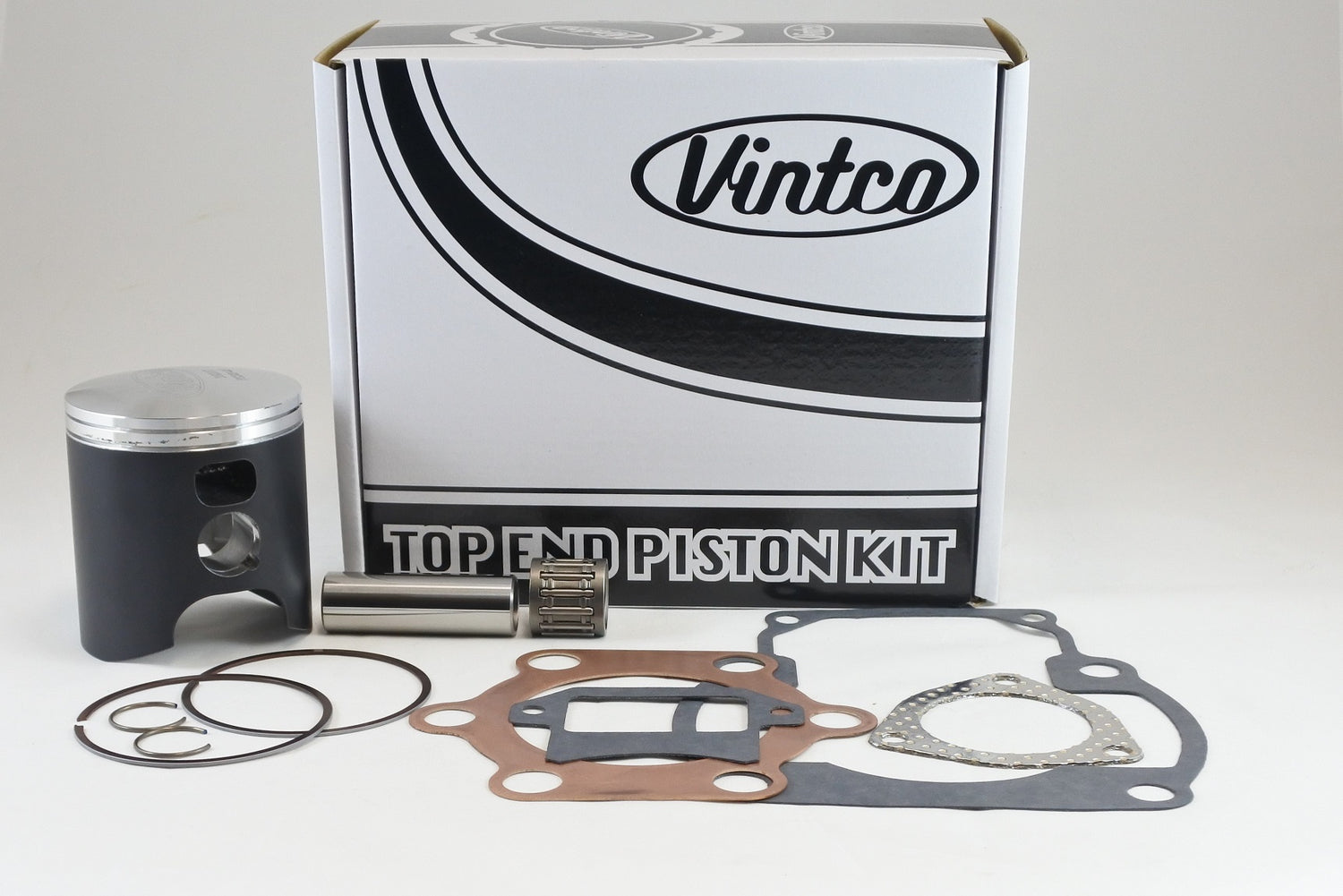

VintCo top end piston kit KTS04-0.5 is a complete rebuild kit for specified 1979-1981 Suzuki RM250, PE250 and RS250 applications. The kit includes a 67.5 mm (+0.5 mm over) piston assembly with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. The piston is forged, manufactured in Germany, and MoS2 coated for running-in. The kit is produced using modern materials and manufacturing methods for OEM-equivalent fit and performance, with kit pricing set at 10% below the cost of purchasing the components individually. Additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Designed for straightforward top-end rebuilds
• Manufactured for OEM-equivalent fit and performance
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options available

Specifications

• VintCo Part Number: KTS04-0.5
• Nominal piston size: 67.5 mm
• Oversize: +0.5 mm
• Piston diameter: 67.44 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston origin: Germany
• Head gasket thickness: 0.8 mm

Cross-Reference OEM Part Numbers

• Piston: 12110-40312-050
• Head gasket: 11141-40303
• Base gasket: 11241-40301-H17
• Intake gasket: 13156-40400-H17
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1979 Suzuki RM250
• 1980 Suzuki RM250
• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
