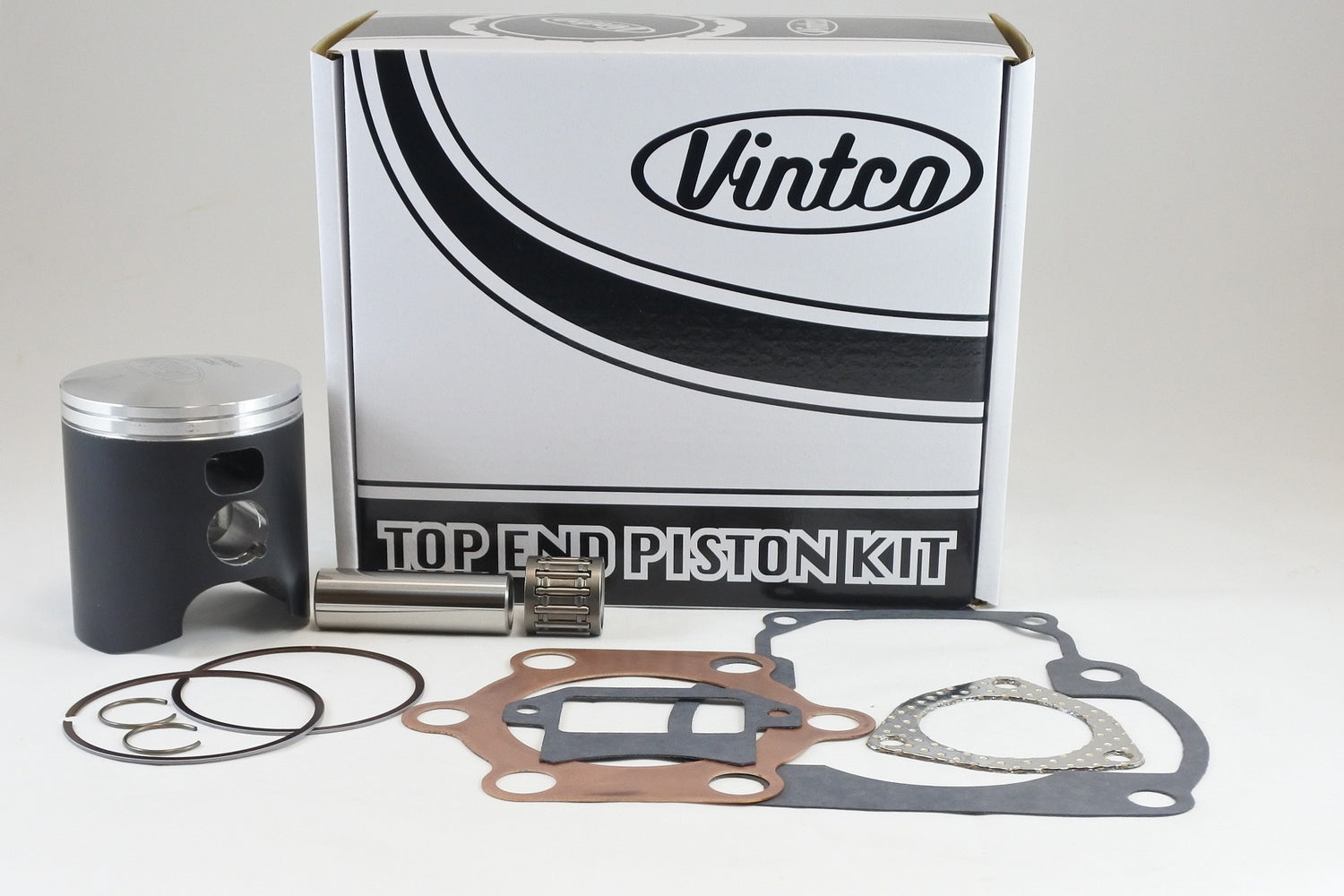

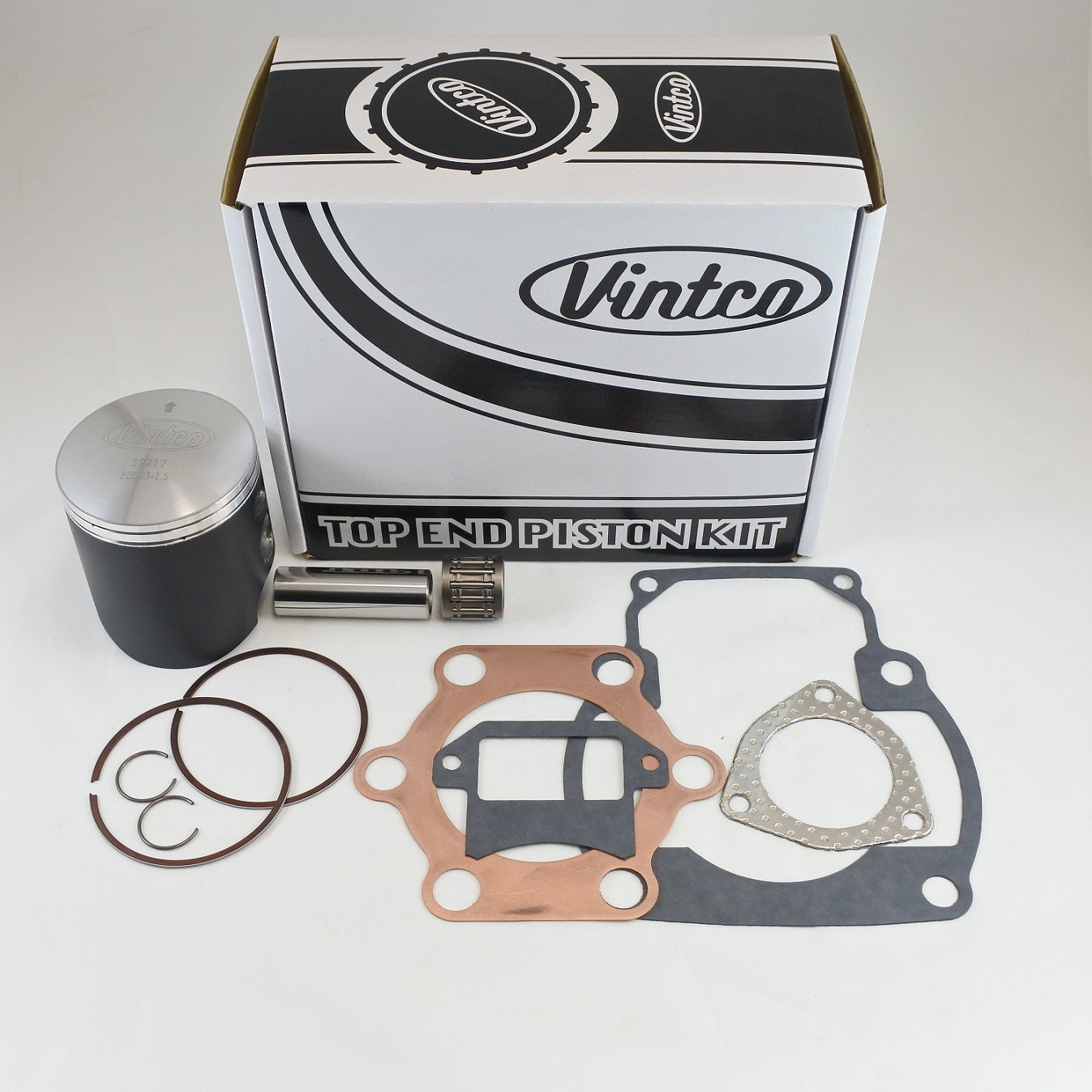

VintCo KTS04-1.5 is a complete top end piston kit for 1979-1981 Suzuki PE250, RM250 and RS250 models, intended for 68.5 mm (+1.5 mm over) rebuilds. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit with head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production methods for OEM-equivalent fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Designed for OEM-equivalent fitment and performance
• Additional size options available
• Kit price includes a 10% saving compared with purchasing components individually
• Coated piston for running-in

Specifications

• VintCo Part Number: KTS04-1.5
• Product type: Top End Piston Kit
• Nominal size: 68.5 mm
• Oversize: +1.5 mm
• Piston size: 68.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston origin: Germany
• Head gasket thickness: 0.8 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-40303
• Base gasket: 11241-40301-H17
• Intake gasket: 13156-40400-H17
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1979 Suzuki RM250
• 1980 Suzuki RM250
• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
