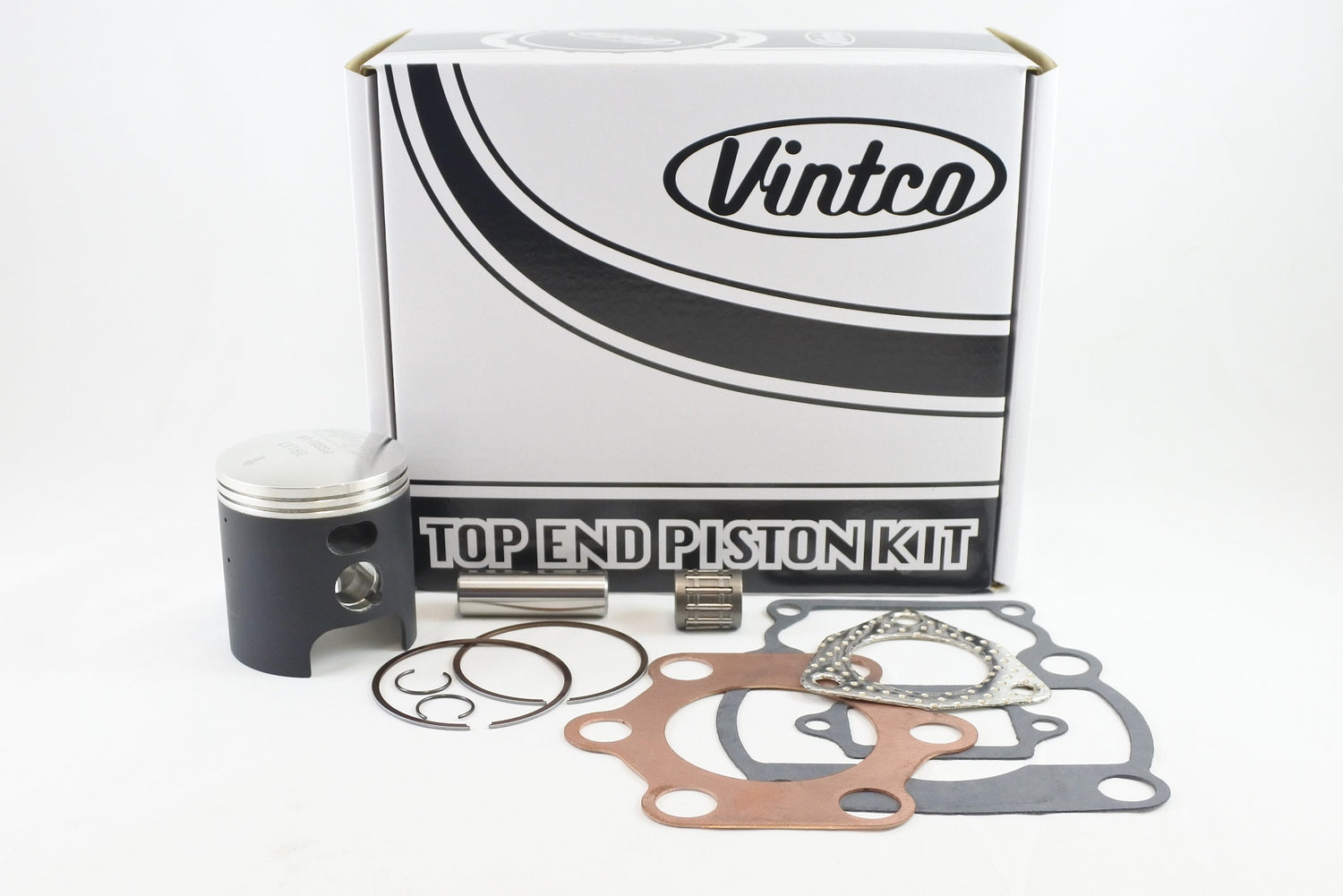

This VintCo top end piston kit is a complete rebuild set for 1979-1980 Suzuki RM125 models. It includes a piston kit with piston, rings, pin and clips, together with a top end bearing and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance, and the kit pricing is stated as 10% lower than purchasing the items individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Head gasket included
• Base gasket included
• Intake gasket included
• Exhaust gasket included
• OEM part numbers provided for fitment verification
• Kit pricing stated as 10% lower than buying the parts individually
• Additional size options available

Specifications

• VintCo Part Number: KTS02-1.0
• Product type: Top End Piston Kit
• Nominal piston size: 55.0 mm
• Oversize: +1.0 mm
• Listed piston measurement: 54.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 coated for break-in
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11141-40201
• Base gasket: 11241-40201-H17
• Intake gasket: 13156-40200-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 13033-035

Vehicle Fitments

• 1979 Suzuki RM125
• 1980 Suzuki RM125
