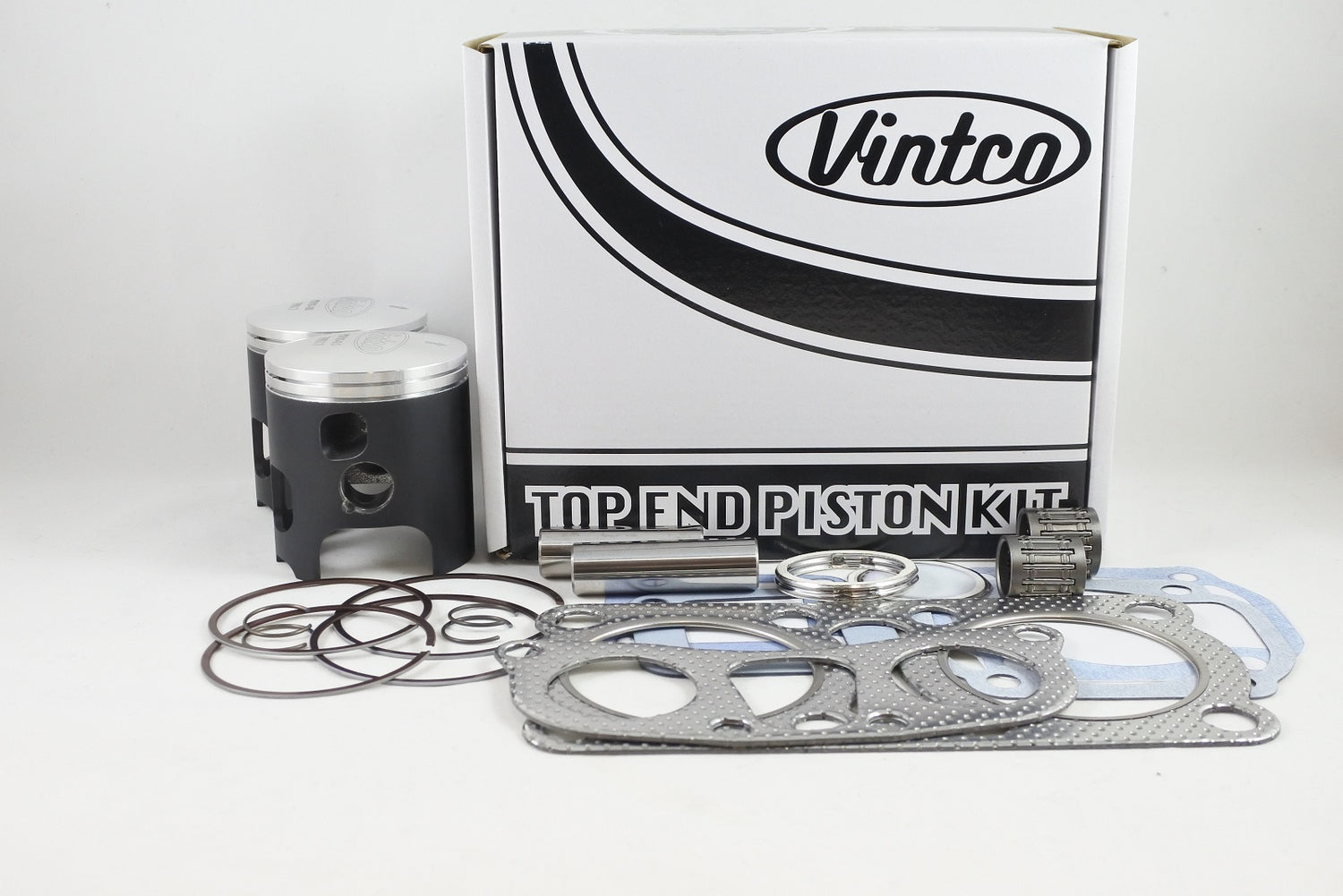

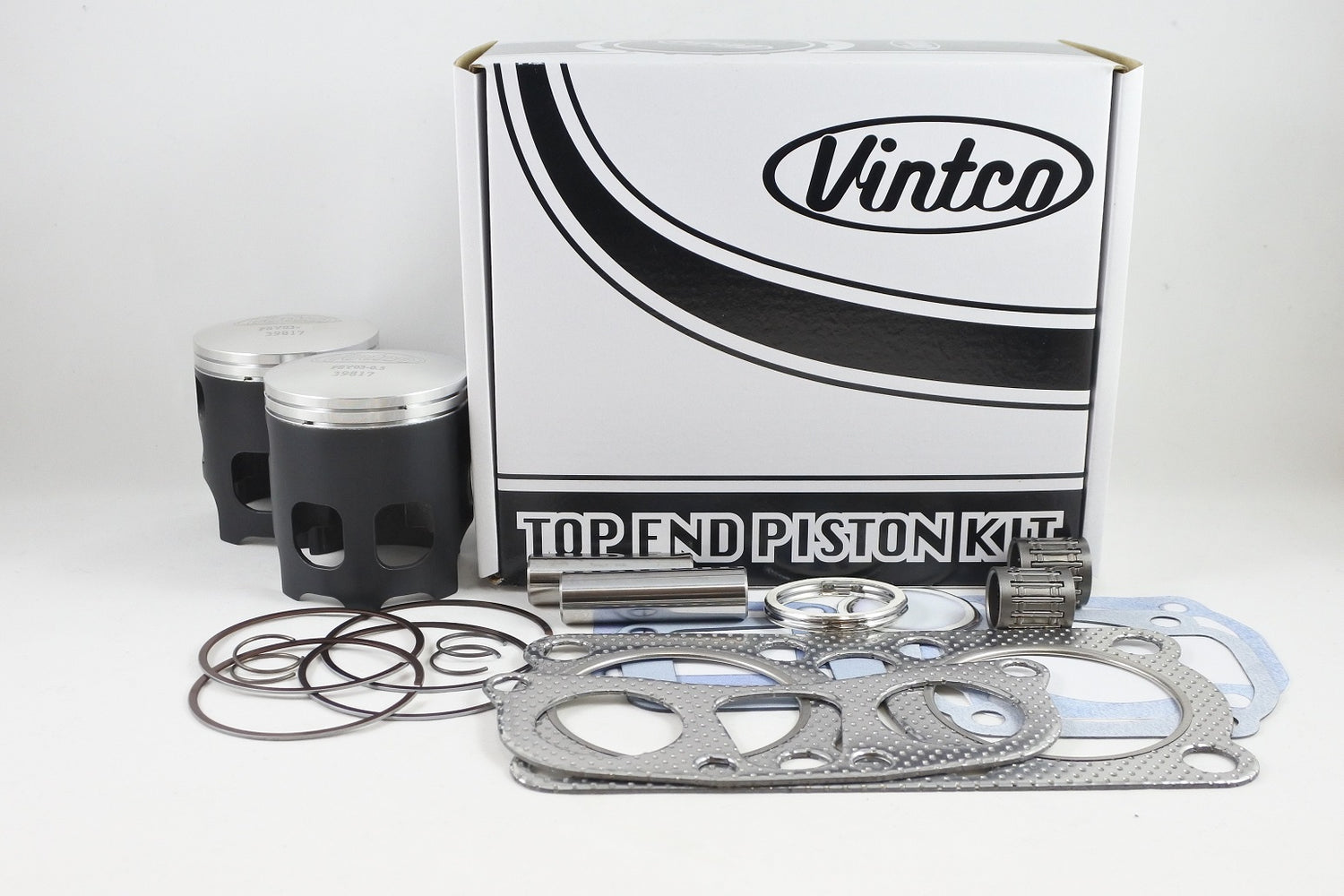

VintCo top end piston kit for the 1979 Yamaha RD400, supplied in 64.5 mm size with 0.5 mm oversize. The kit includes a forged piston made in Germany with MoS2 coating for break-in, along with cylinder base gaskets, an intake gasket, exhaust pipe gaskets and wrist pin bearings.

Features

• Complete top end piston kit
• Includes forged piston
• Includes cylinder base gaskets
• Includes intake gasket
• Includes exhaust pipe gaskets
• Includes wrist pin bearings
• MoS2-coated piston for break-in

Specifications

• VintCo Part Number: KTY18-0.5
• Piston size: 64.5 mm
• Oversize: 0.5 mm over
• Piston diameter: 64.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 360-11636-03-00
• Piston: 1A1-11636-00-00
• Cylinder Base Gasket: 2V0-11181-10-00
• Cylinder Base Gasket: 278-11351-11-00
• Intake Gasket: 87A-13621-00-00
• Exhaust Pipe Gasket: 3PA-14613-10-00
• Exhaust Pipe Gasket: 2V0-14613-10-00

Vehicle Fitments

• 1979 Yamaha RD400
