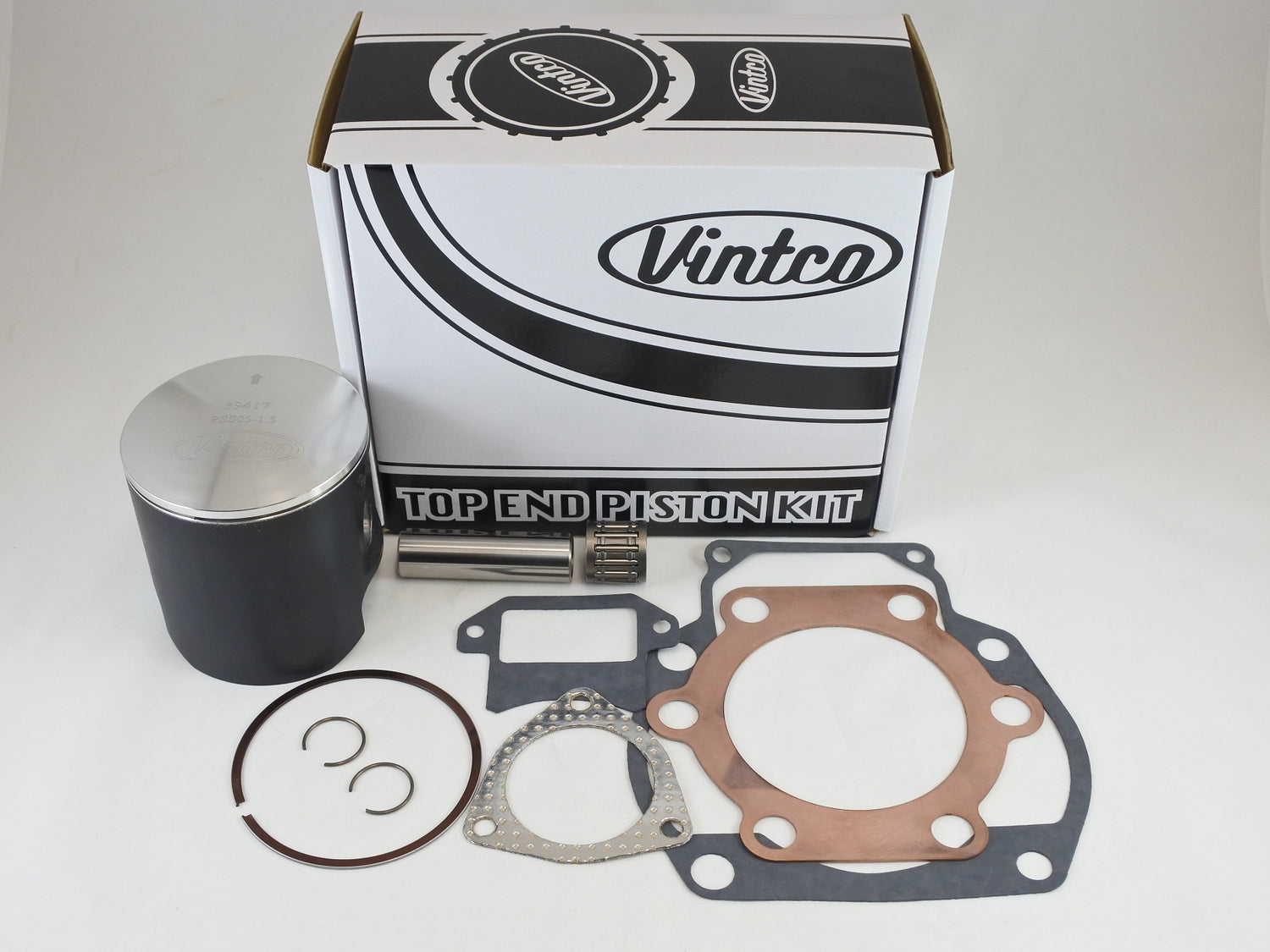

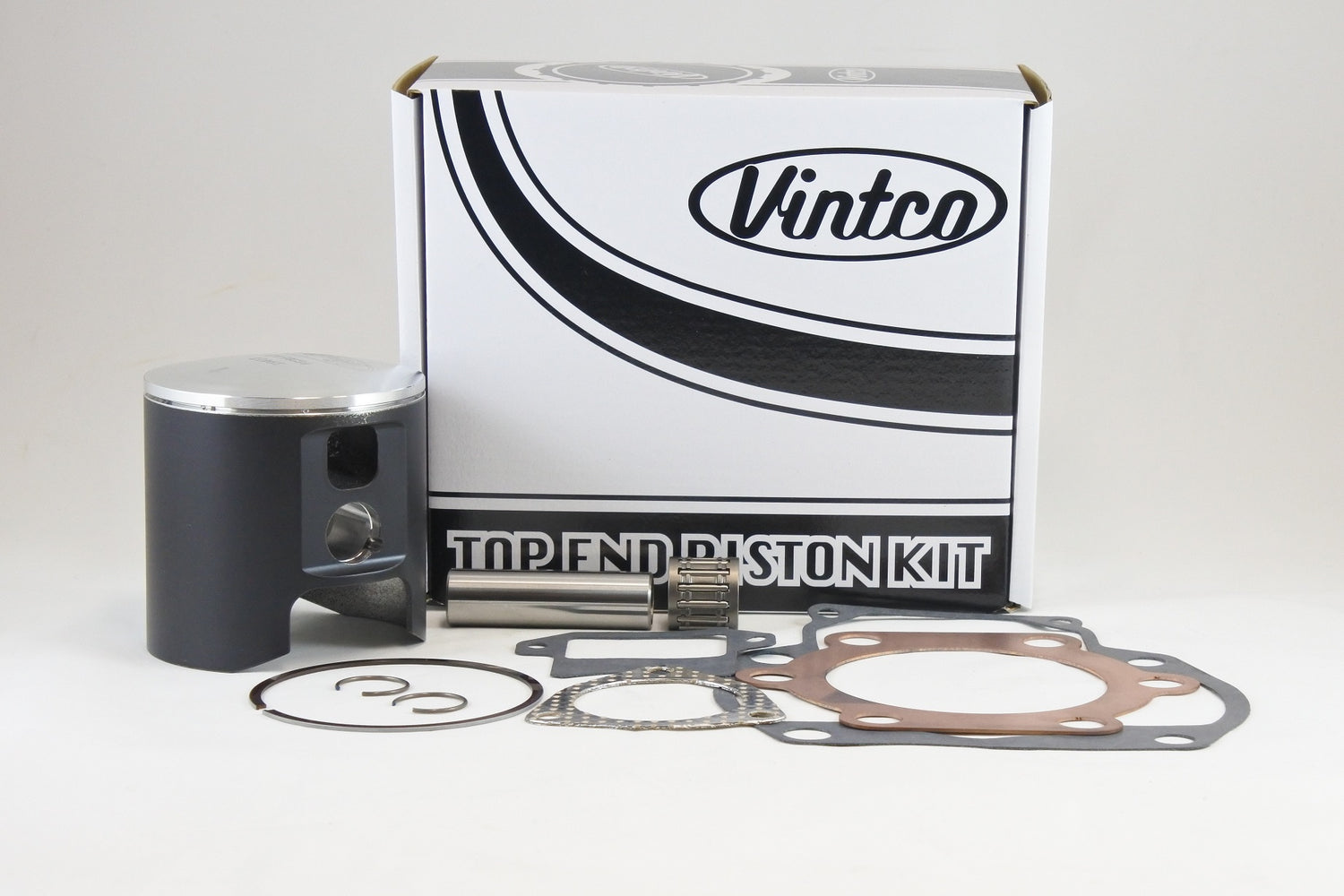

VintCo top end piston kit KTS08-1.5 is a complete rebuild kit for the 1979 Suzuki RM400, supplied with a piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set including head, base, intake and exhaust gaskets. The kit is designed to simplify top-end rebuild work and uses modern materials and manufacturing methods for OEM-equivalent fitment and performance. It includes a piston manufactured in Germany and is supplied in an 81.5 mm, +1.5 mm oversize configuration.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• MoS2-coated piston for break-in
• Intended for OEM-equivalent fitment and performance
• Kit price is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS08-1.5
• Piston size: 81.5 mm
• Oversize: +1.5 mm
• Piston diameter: 81.43 mm
• Piston clearance: 0.07 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-40400
• Base gasket: 11241-40402
• Intake gasket: 13156-40400-H17
• Exhaust gasket: 14181-41201-H17
• Wrist pin bearing: 09263-18014

Vehicle Fitments

• 1979 Suzuki RM400
