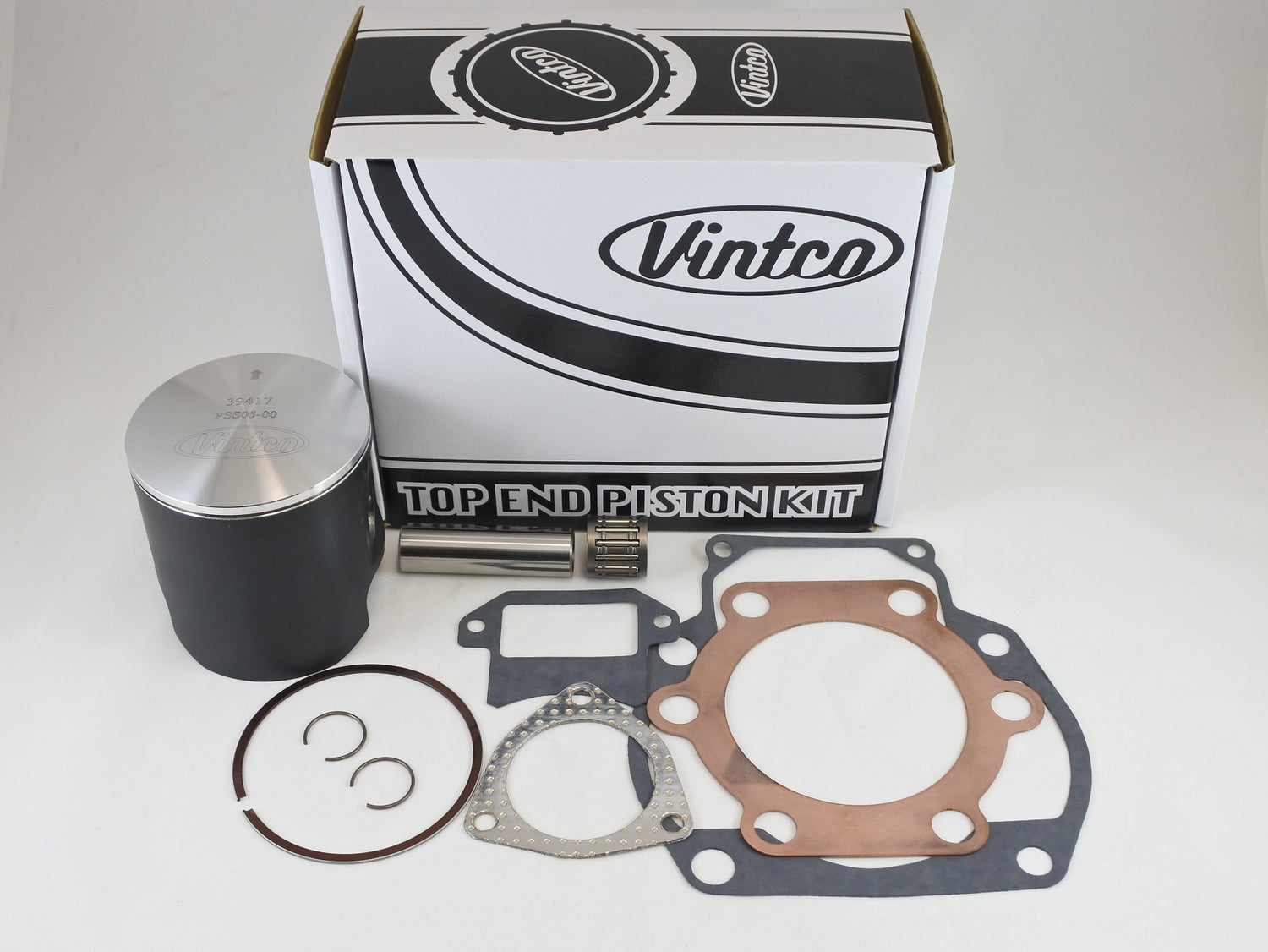

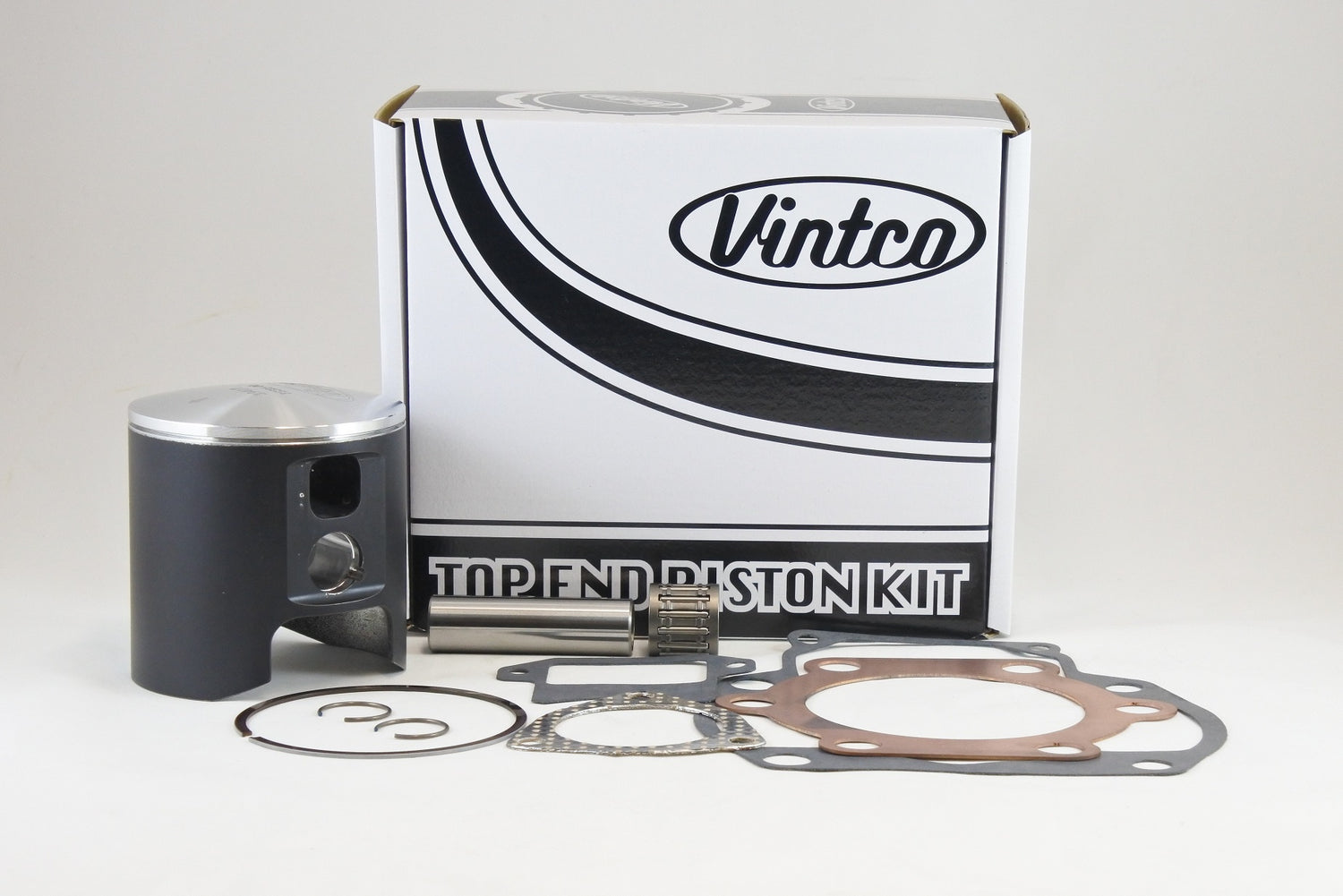

VintCo top end piston kit KTS08-00 is a complete rebuild kit for the 1979 Suzuki RM400, supplied in standard 80.0 mm size. It includes the piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The components are manufactured using modern materials and production methods for OEM-equivalent fitment and performance, and the kit pricing is stated as 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust gasket
• Manufactured for OEM-equivalent fitment and performance
• Kit pricing stated as 10% lower than buying the parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS08-00
• Product Type: Top End Piston Kit
• Nominal piston size: 80.0 mm
• Size: Standard
• Piston diameter: 79.93 mm
• Piston clearance: 0.07 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2 coating for break-in

Cross-Reference OEM Part Numbers

• Piston: 12110-40400
• Head Gasket: 11141-40400
• Base Gasket: 11241-40402
• Intake Gasket: 13156-40400-H17
• Exhaust Gasket: 14181-41201-H17
• Wrist Pin Bearing: 09263-18014

Vehicle Fitments

• 1979 Suzuki RM400
