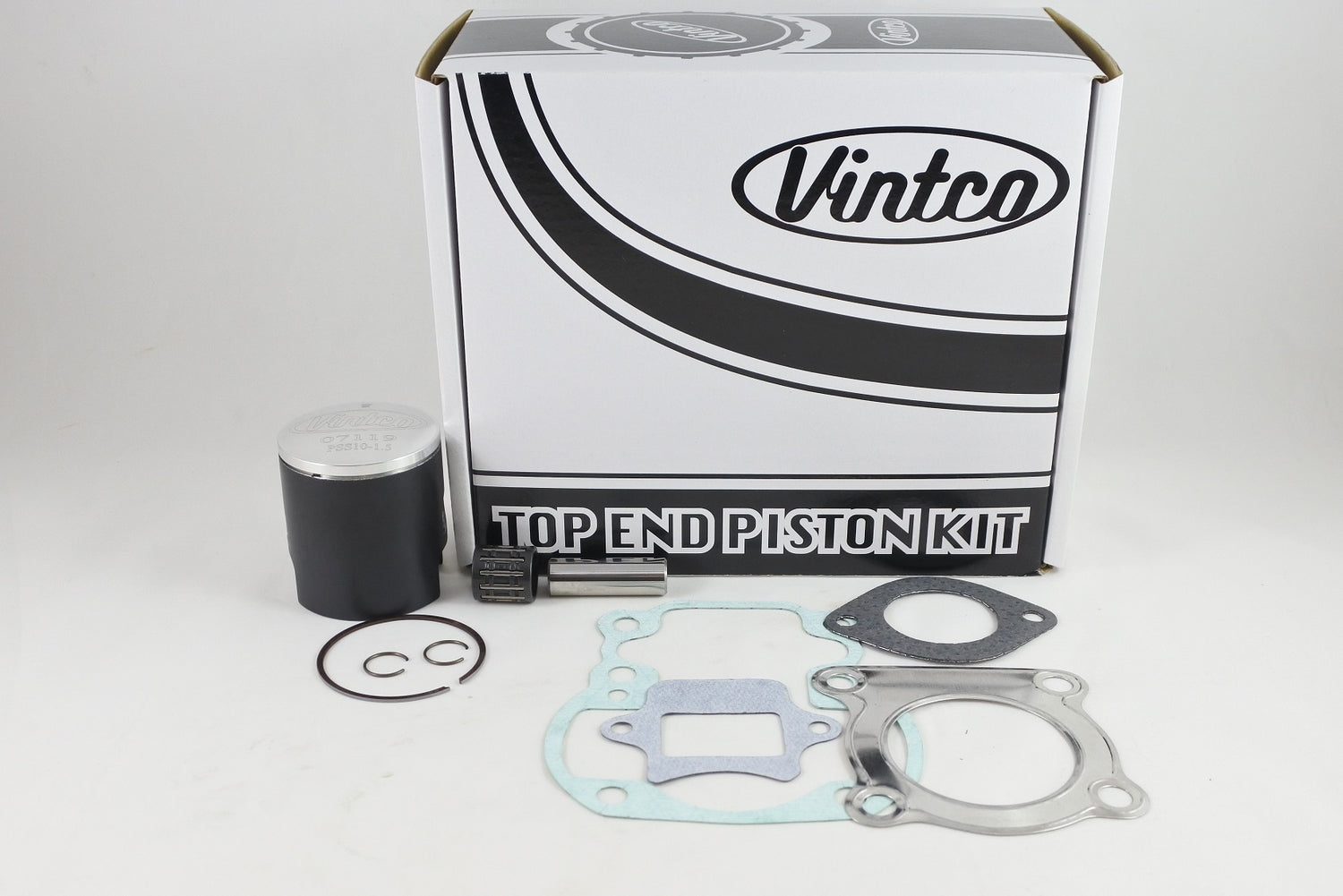

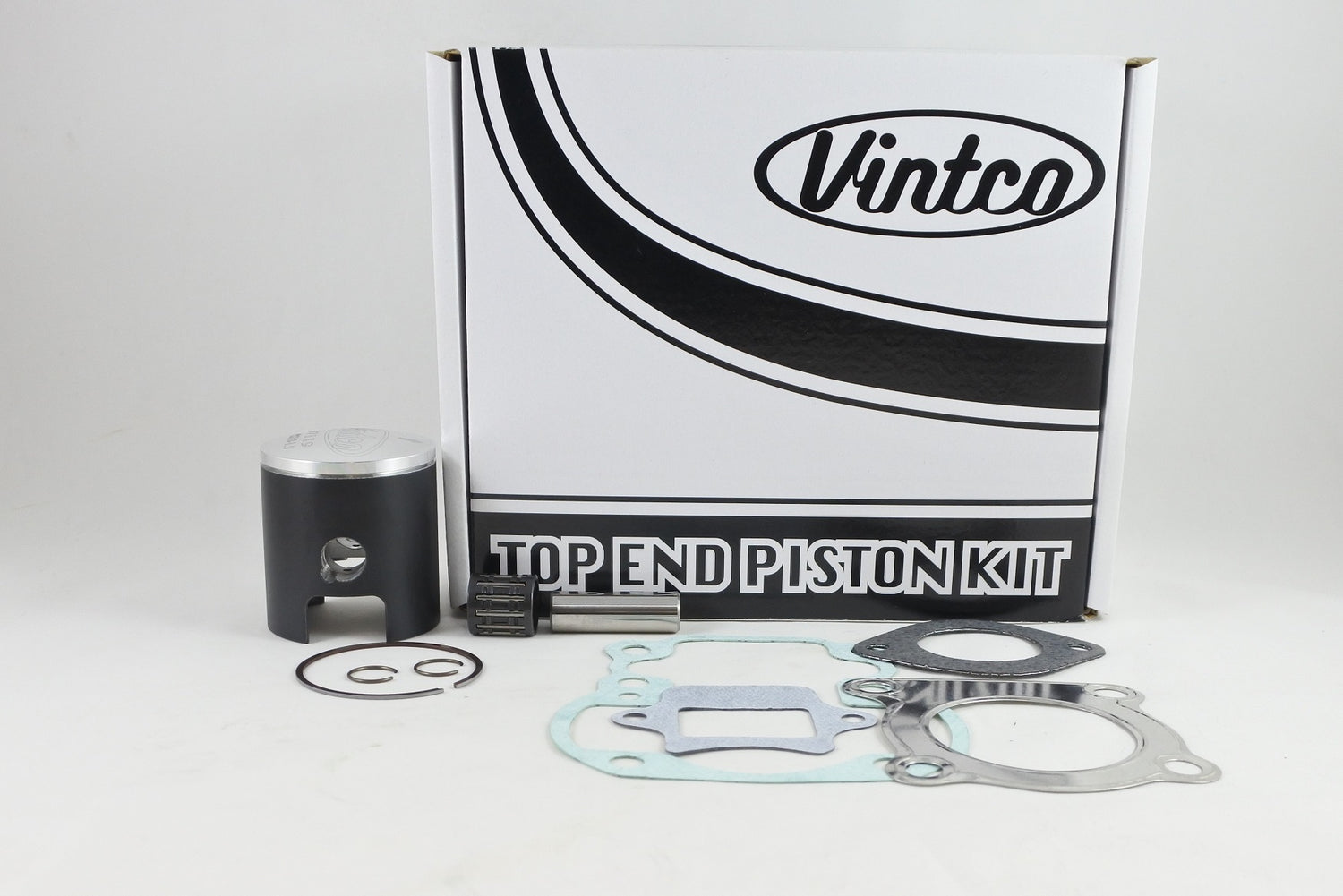

VintCo top end piston kit for Suzuki RM80 models from 1978 to 1981, supplied as a complete set for top-end rebuild work. The kit includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake, and exhaust gaskets. It is intended for 1.5 mm oversize applications and is designed to provide OEM-equivalent or better fitment and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gasket, and exhaust gasket
• Intended for oversize top-end rebuild applications
• Designed for OEM-equivalent or better fitment and performance
• Manufactured using modern materials and manufacturing techniques
• Kit price includes a 10% saving compared with purchasing the components individually

Specifications

• VintCo Part Number: KTS12-1.5
• Piston size: 50.45 mm
• Nominal size reference: 50.5 mm
• Oversize: +1.5 mm
• Clearance: 0.05 mm
• Piston type: Forged
• Piston coating: German MoS2 coating

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46900-H17
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1978 Suzuki RM80
• 1979 Suzuki RM80
• 1980 Suzuki RM80
• 1981 Suzuki RM80
