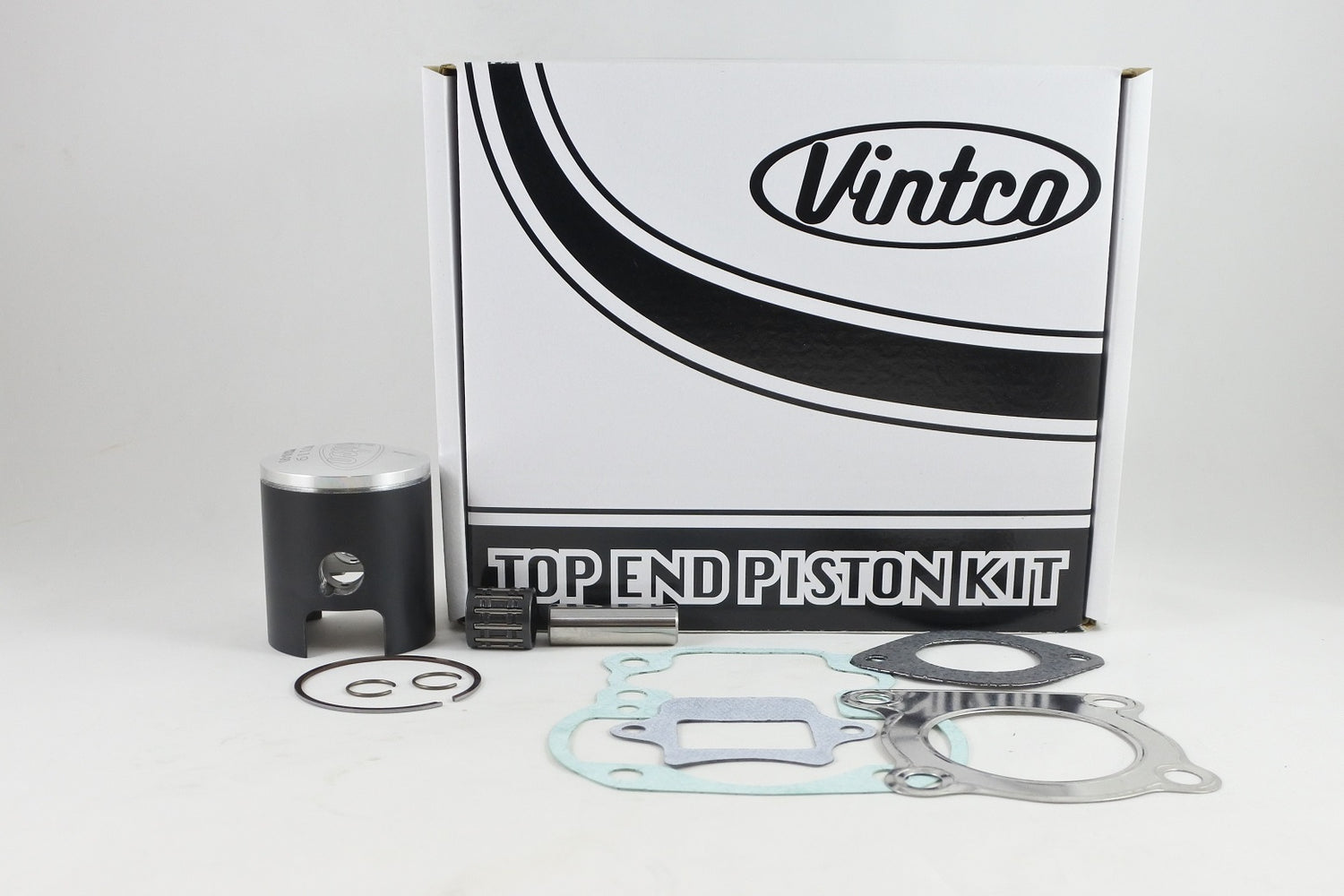

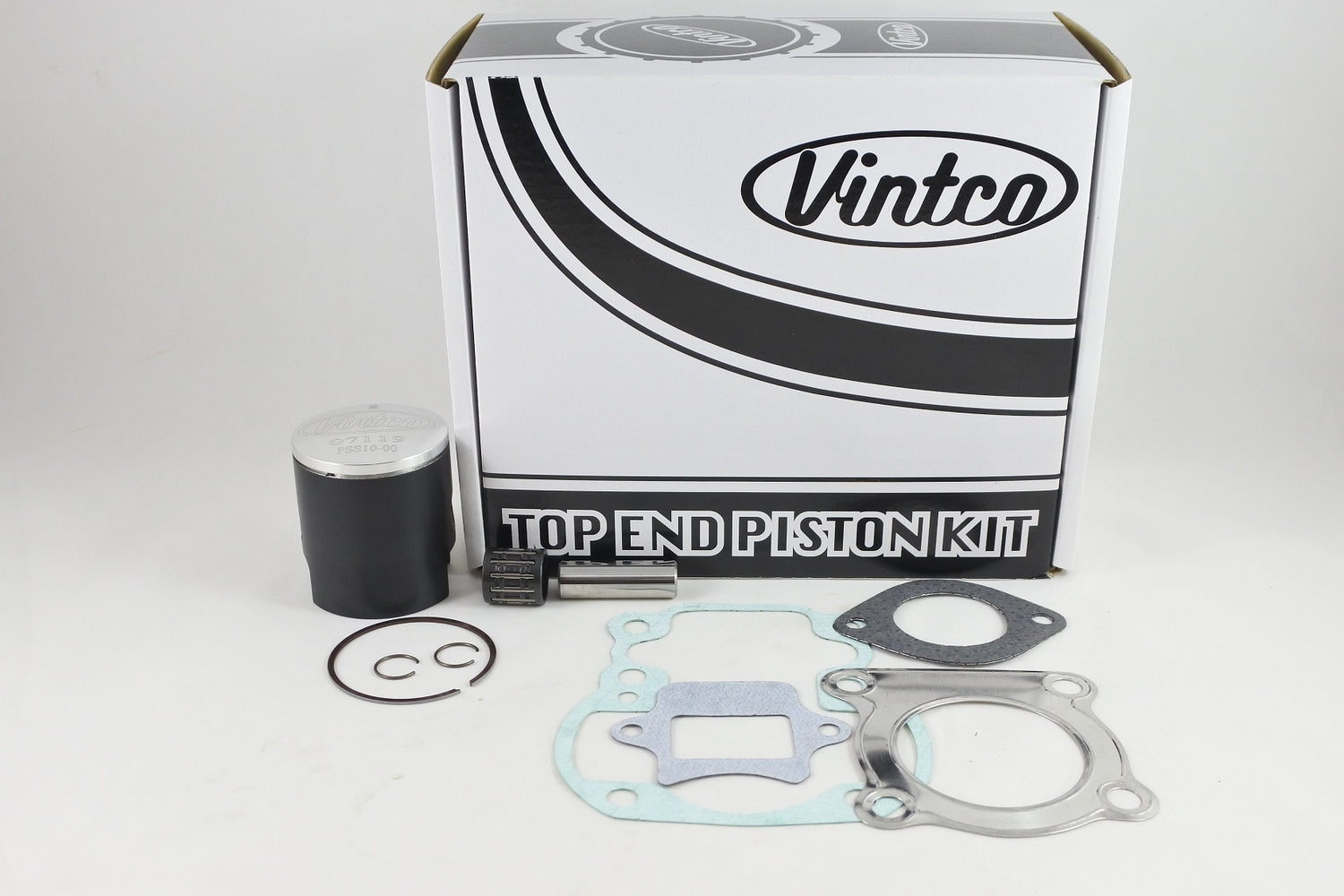

This VintCo top end piston kit is a complete rebuild set for 1978-1981 Suzuki RM80 models in standard size. It includes the piston assembly components, a top end bearing, and a full top-end gasket set to support a straightforward top-end rebuild. The kit is manufactured using modern materials and production methods to provide OEM-equivalent or better fit and performance, and the kit price reflects a 10% saving compared with purchasing the components individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust gasket
• Designed for straightforward and cost-effective rebuild work
• OEM part numbers provided for exact application matching
• Other size options are available

Specifications

• VintCo Part Number: KTS12-00
• Standard size piston kit
• Piston diameter: 48.95 mm
• Piston clearance: 0.05 mm
• Forged piston
• German MoS2-coated piston for running-in
• Item category: Top End Piston Kits

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46900-H17
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1978 Suzuki RM80
• 1979 Suzuki RM80
• 1980 Suzuki RM80
• 1981 Suzuki RM80
