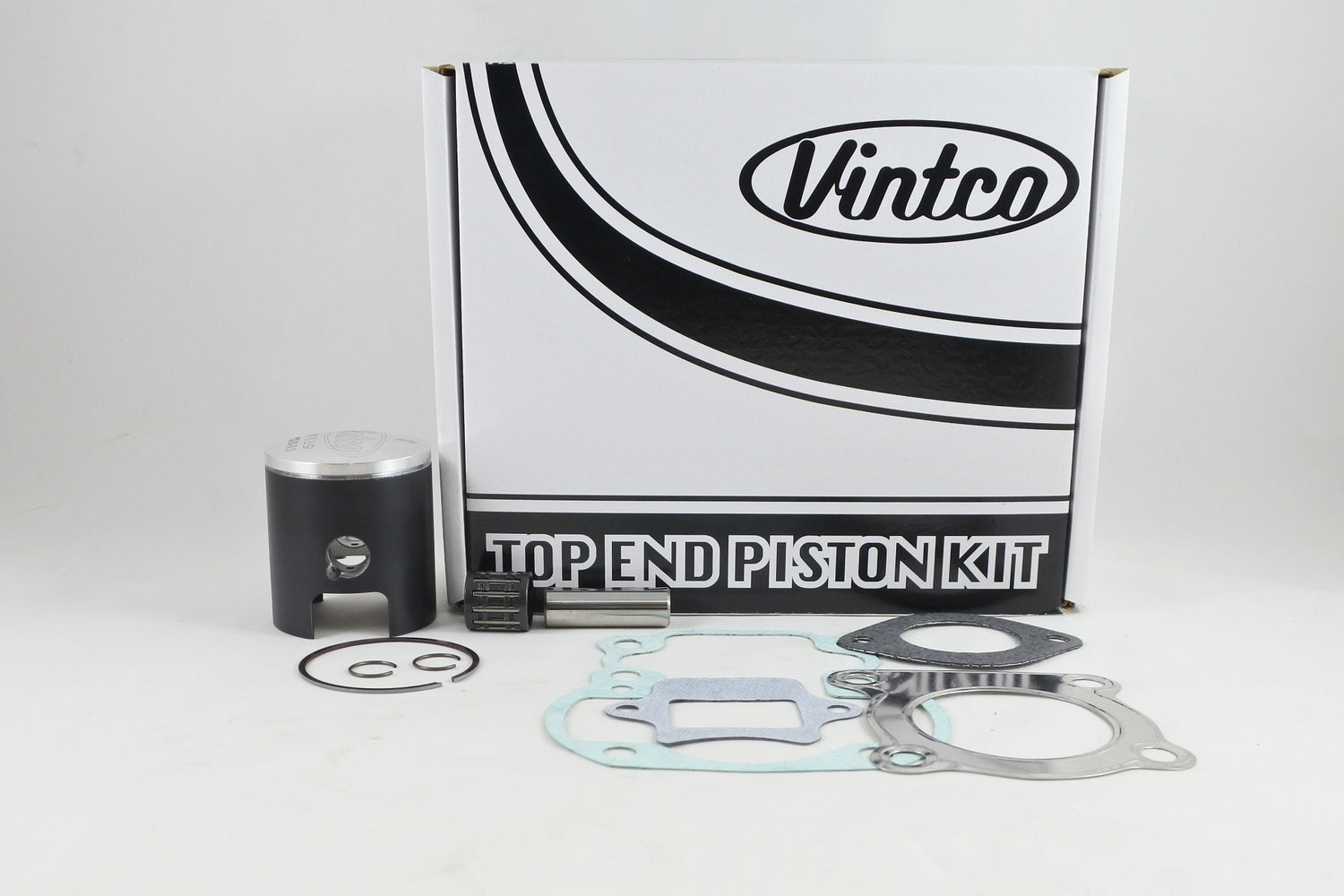

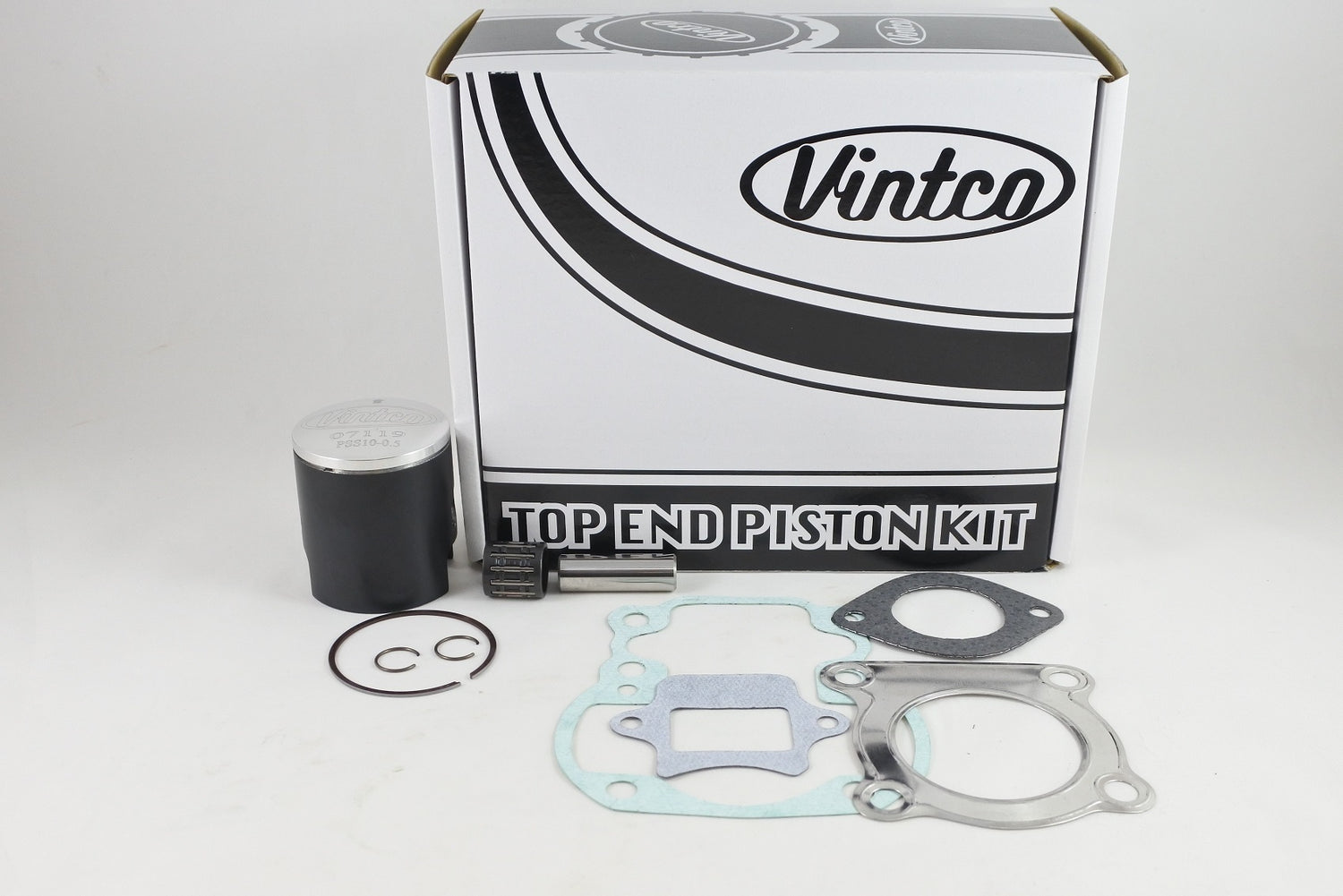

VintCo top end piston kit KTS12-0.5 is a complete rebuild kit for 1978-1981 Suzuki RM80 models. It includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. Manufactured using modern materials and manufacturing techniques, this kit is intended to provide OEM-equivalent fitment and performance for top-end service.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust pipe gasket
• Intended for straightforward and cost-effective rebuild work
• Kit price includes a 10% discount compared with purchasing the parts individually
• OEM part numbers provided for exact fitment
• More size options are available

Specifications

• VintCo Part Number: KTS12-0.5
• Nominal piston size: 49.5 mm
• Piston diameter: 49.45 mm
• Oversize: +0.5 mm
• Piston clearance: 0.05 mm
• Piston construction: forged
• Piston coating: German MoS2 coated for break-in

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46900-H17
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1978 Suzuki RM80
• 1979 Suzuki RM80
• 1980 Suzuki RM80
• 1981 Suzuki RM80
