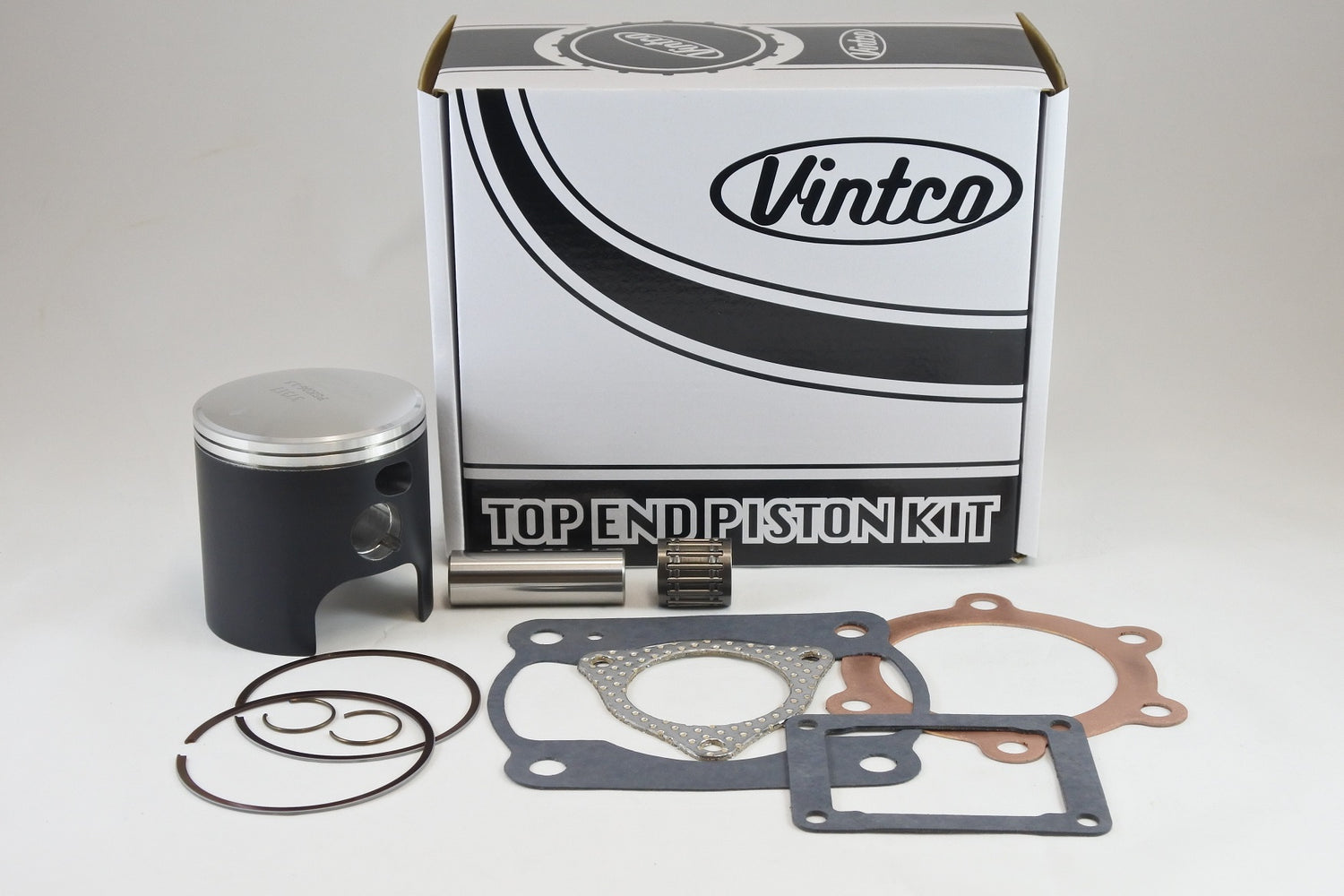

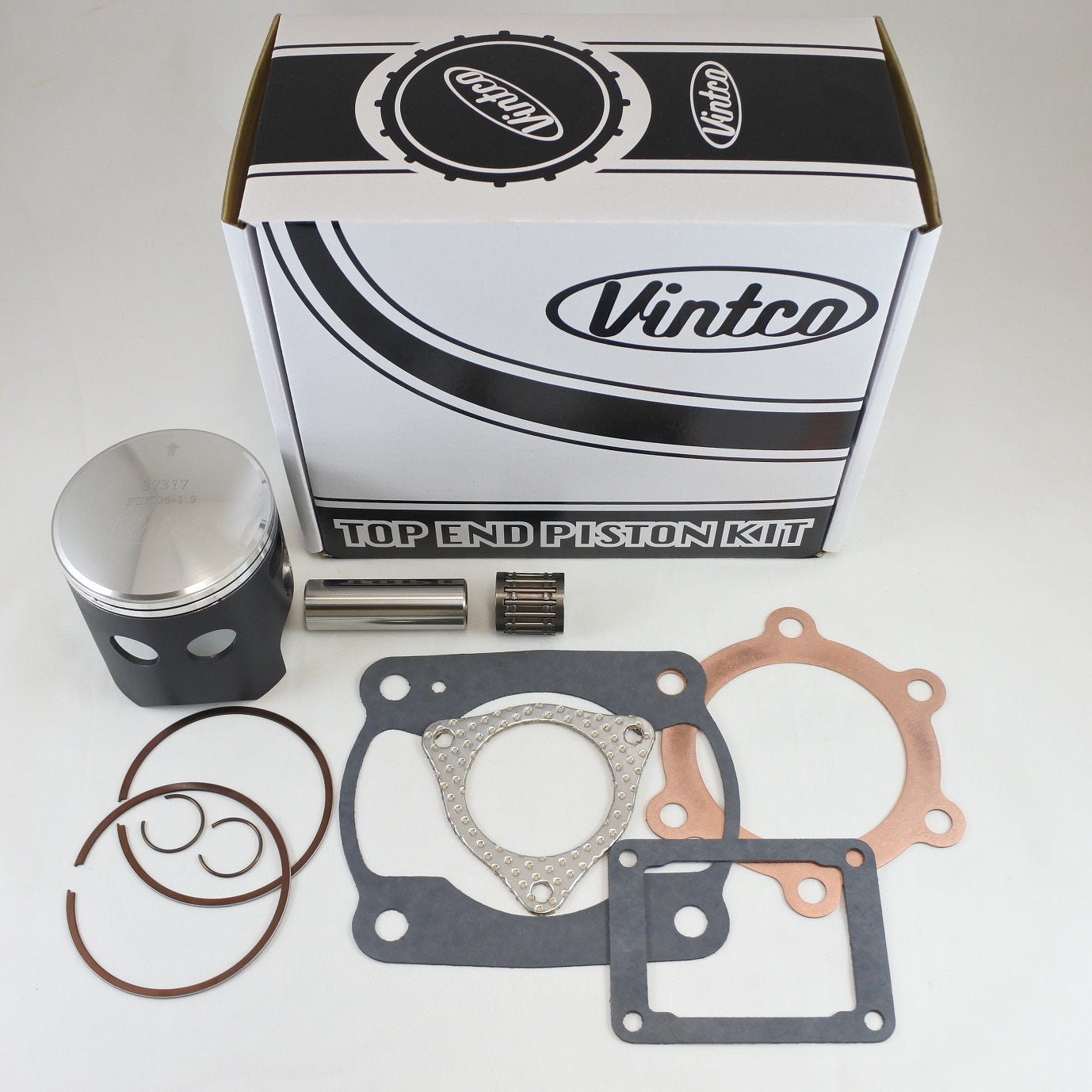

VintCo KTK07-1.5 is a complete top-end piston kit for the 1978–1979 Kawasaki KX250, supplied in a 71.5 mm (+1.5 mm over) size for top-end rebuild work. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top-end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top-end bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gasket and exhaust gaskets
• Forged piston with coating to assist break-in
• Built using modern materials and manufacturing techniques
• Intended to provide OEM-equivalent or better fitment and performance
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK07-1.5
• Product Type: Top End Piston Kit
• Nominal Piston Size: 71.5 mm
• Oversize: +1.5 mm
• Piston Diameter: 71.44 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2
• Piston Origin: Germany

Cross-Reference OEM Part Numbers

• Head Gasket: 11004-1012
• Base Gasket: 11009-038
• Intake Gasket: 11009-1018
• Exhaust Gasket: 11009-1017
• Exhaust Gasket: 11009-1123
• Wrist Pin Bearing: 13033-1010

Vehicle Fitments

• 1978 Kawasaki KX250
• 1979 Kawasaki KX250
