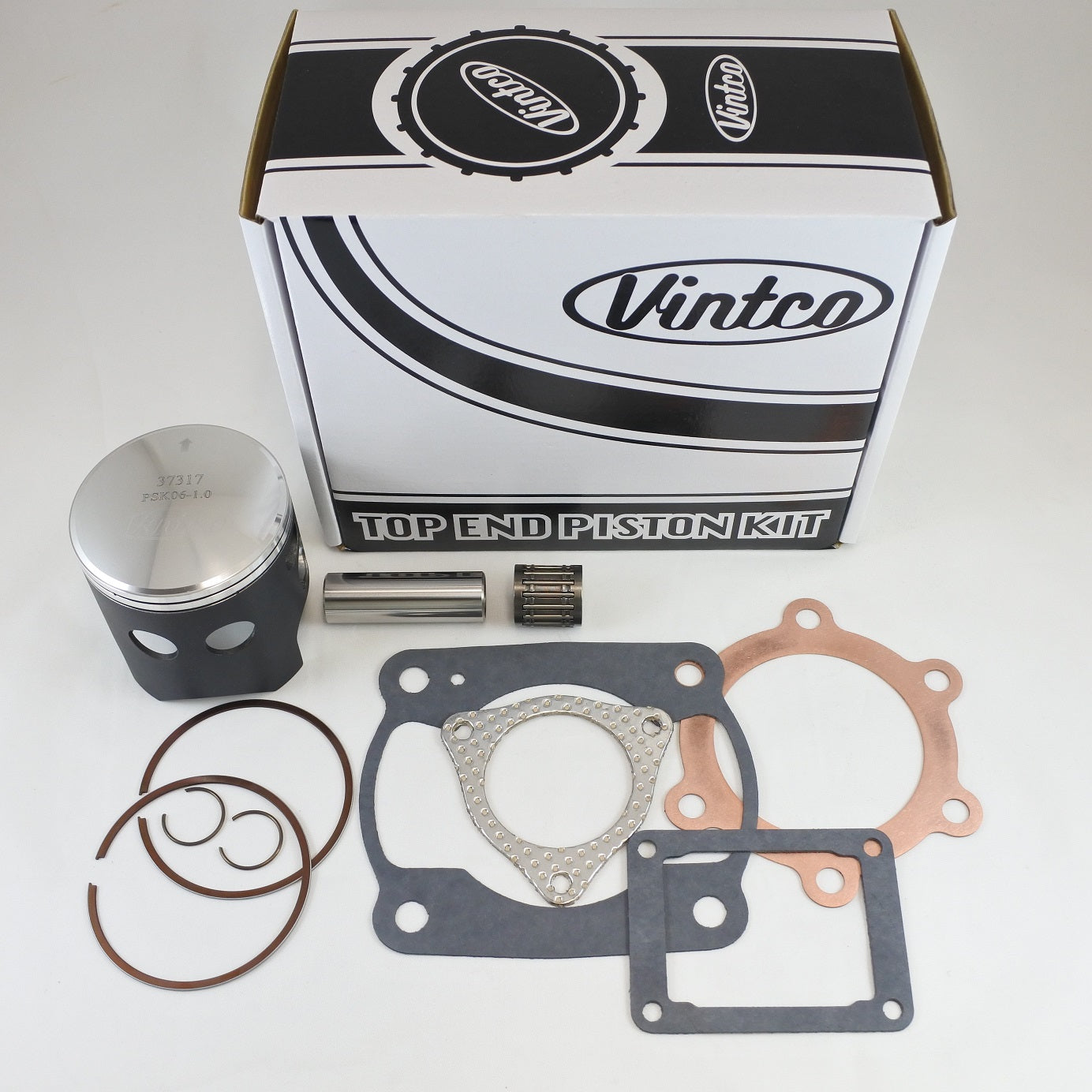

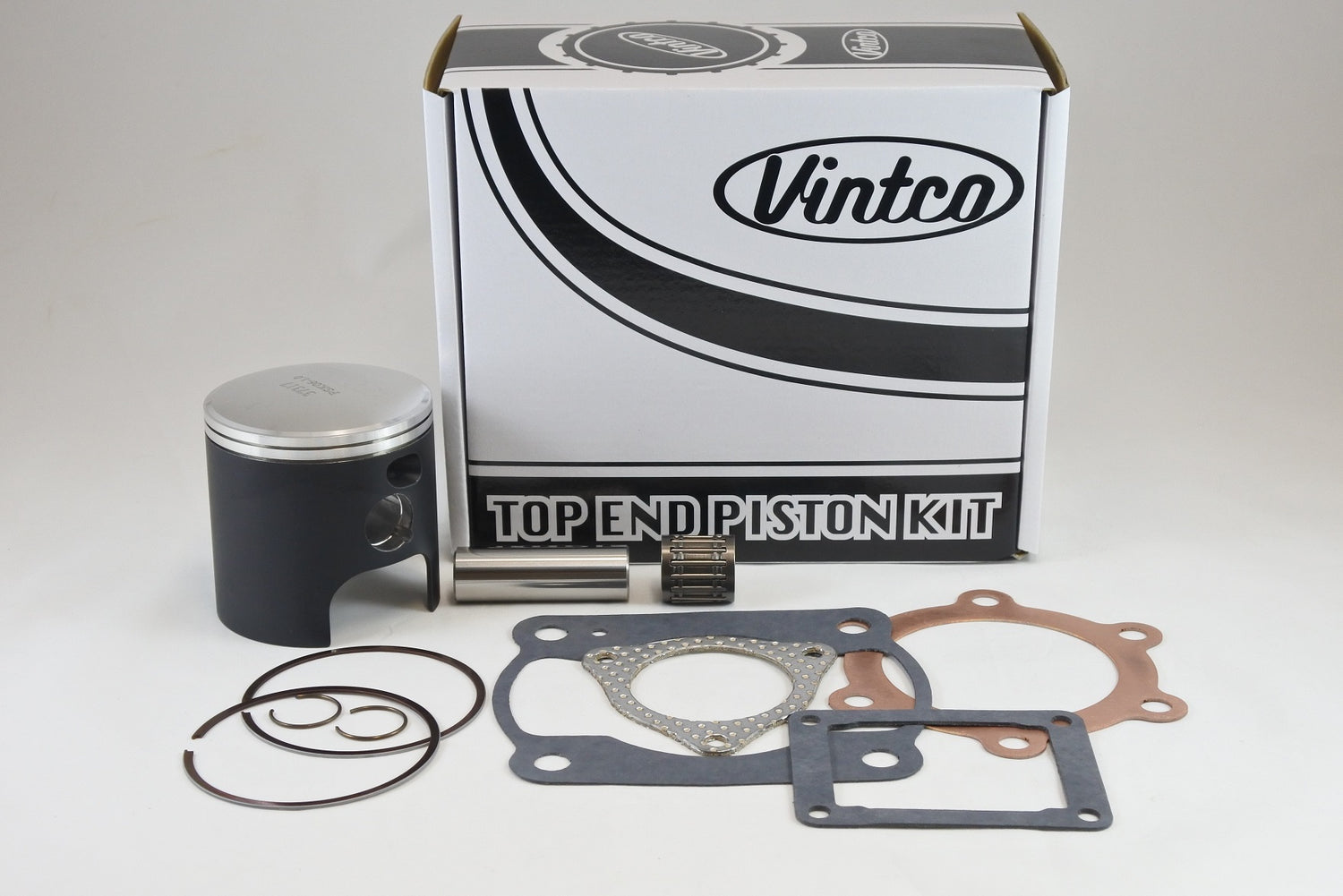

VintCo top end piston kit KTK07-1.0 is a complete top-end rebuild kit for 1978-1979 Kawasaki KX250 models. It includes a forged piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust. The components are produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance, and the kit is supplied as a combined set priced 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gaskets
• Additional size options are available

Specifications

• VintCo Part Number: KTK07-1.0
• Piston diameter: 71.0 mm
• Oversize: +1.0 mm
• Piston measurement: 70.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11004-1012
• Base gasket: 11009-038
• Intake gasket: 11009-1018
• Exhaust gasket: 11009-1017
• Exhaust gasket: 11009-1123
• Wrist pin bearing: 13033-1010

Vehicle Fitments

• 1978 Kawasaki KX250
• 1979 Kawasaki KX250
