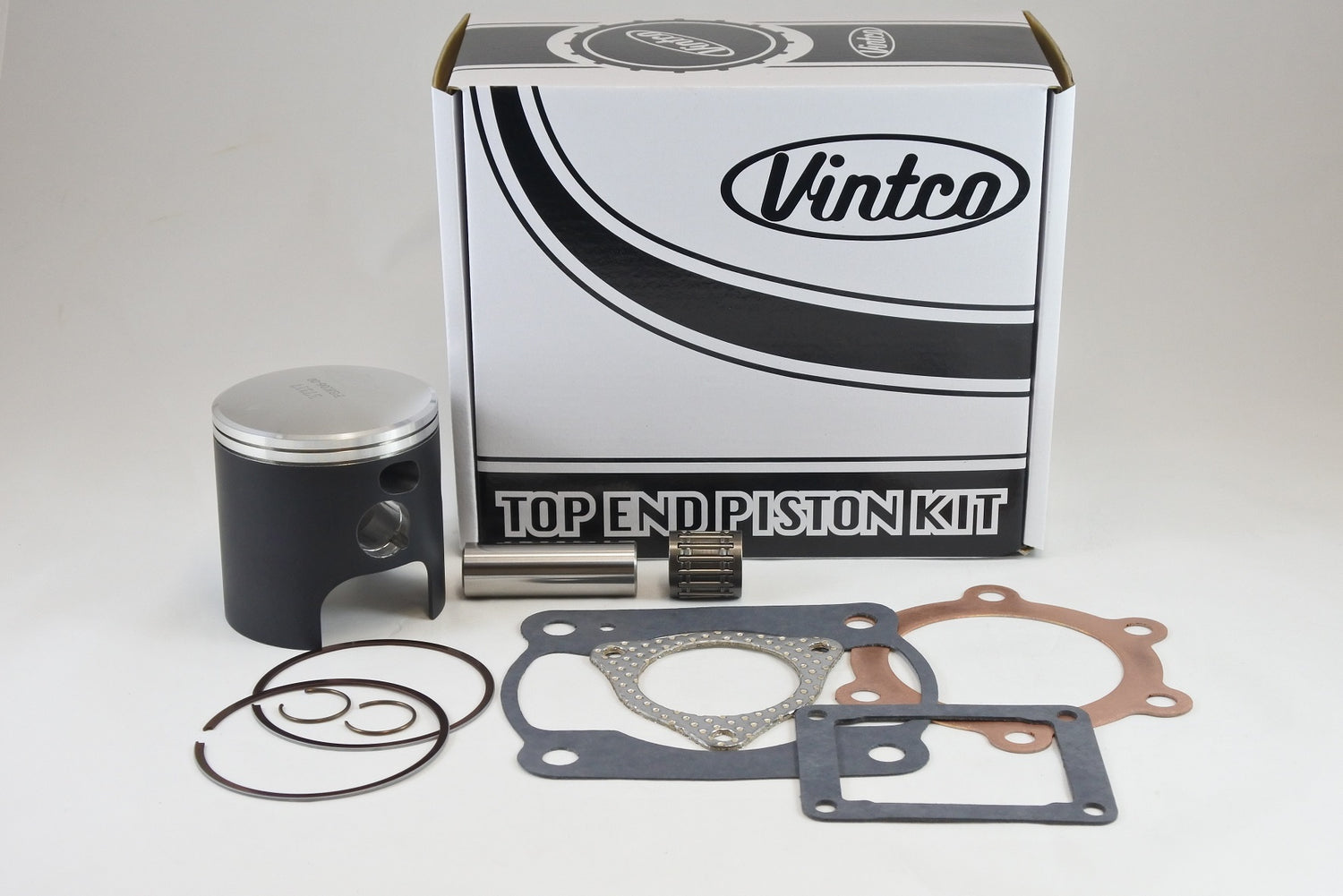

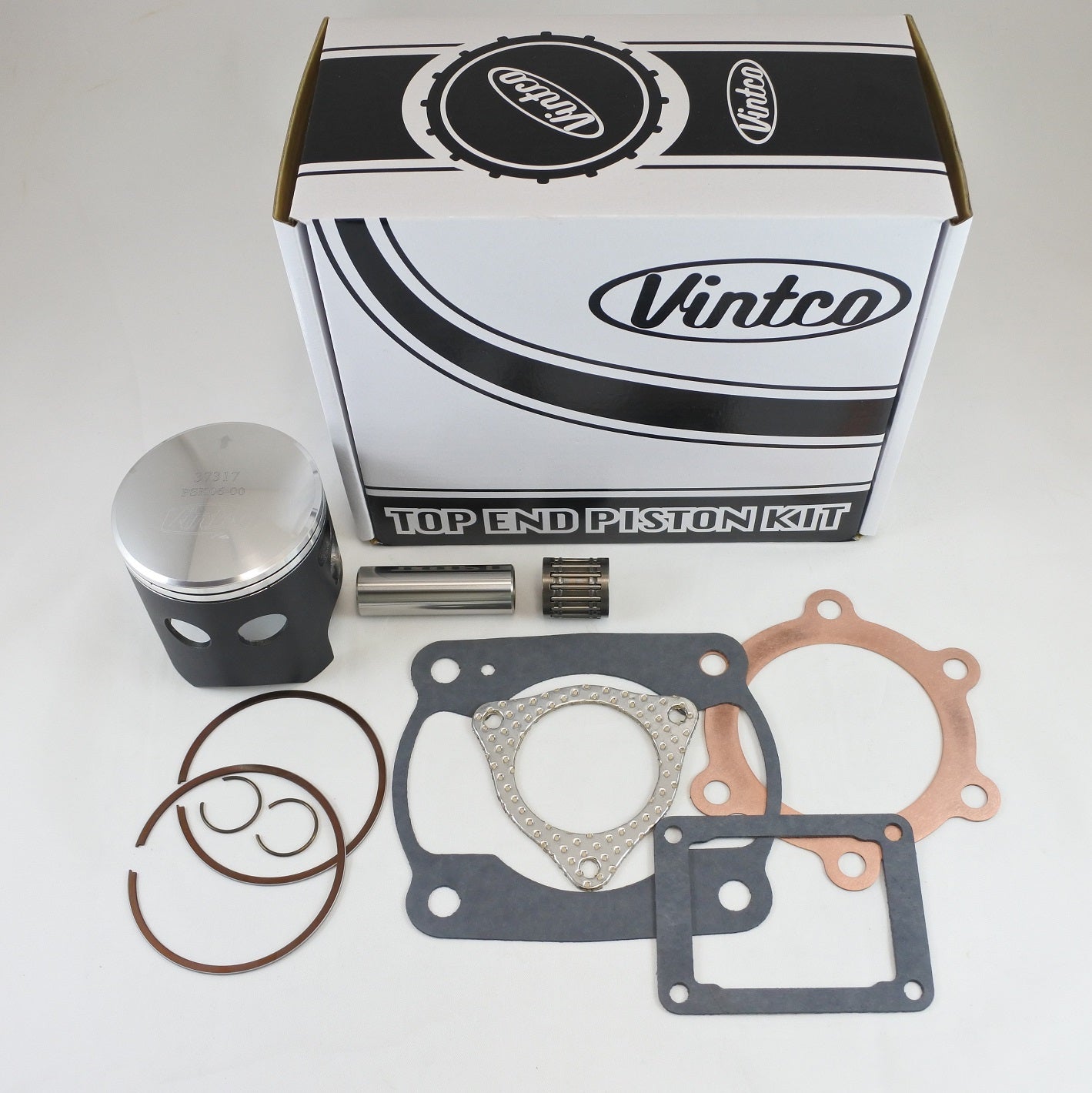

VintCo KTK07-00 is a complete top end piston kit for the 1978-1979 Kawasaki KX250, supplied in standard bore 70.0 mm size for top-end rebuilds. The kit includes a forged piston with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production techniques to provide OEM-equivalent or better fitment and performance. The kit is priced at 10% less than purchasing the components individually, and other size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gaskets
• Intended for 1978-1979 Kawasaki KX250 applications
• OEM-referenced components for exact fitment

Specifications

• VintCo Part Number: KTK07-00
• Product Type: Top End Piston Kit
• Bore Size: 70.0 mm
• Bore Type: Standard
• Piston Diameter: 69.94 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2
• Country of Manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13001-1004
• Head Gasket: 11004-1012
• Base Gasket: 11009-038
• Intake Gasket: 11009-1018
• Exhaust Gasket: 11009-1017
• Exhaust Gasket: 11009-1123
• Wrist Pin Bearing: 13033-1010

Vehicle Fitments

• 1978 Kawasaki KX250
• 1979 Kawasaki KX250
