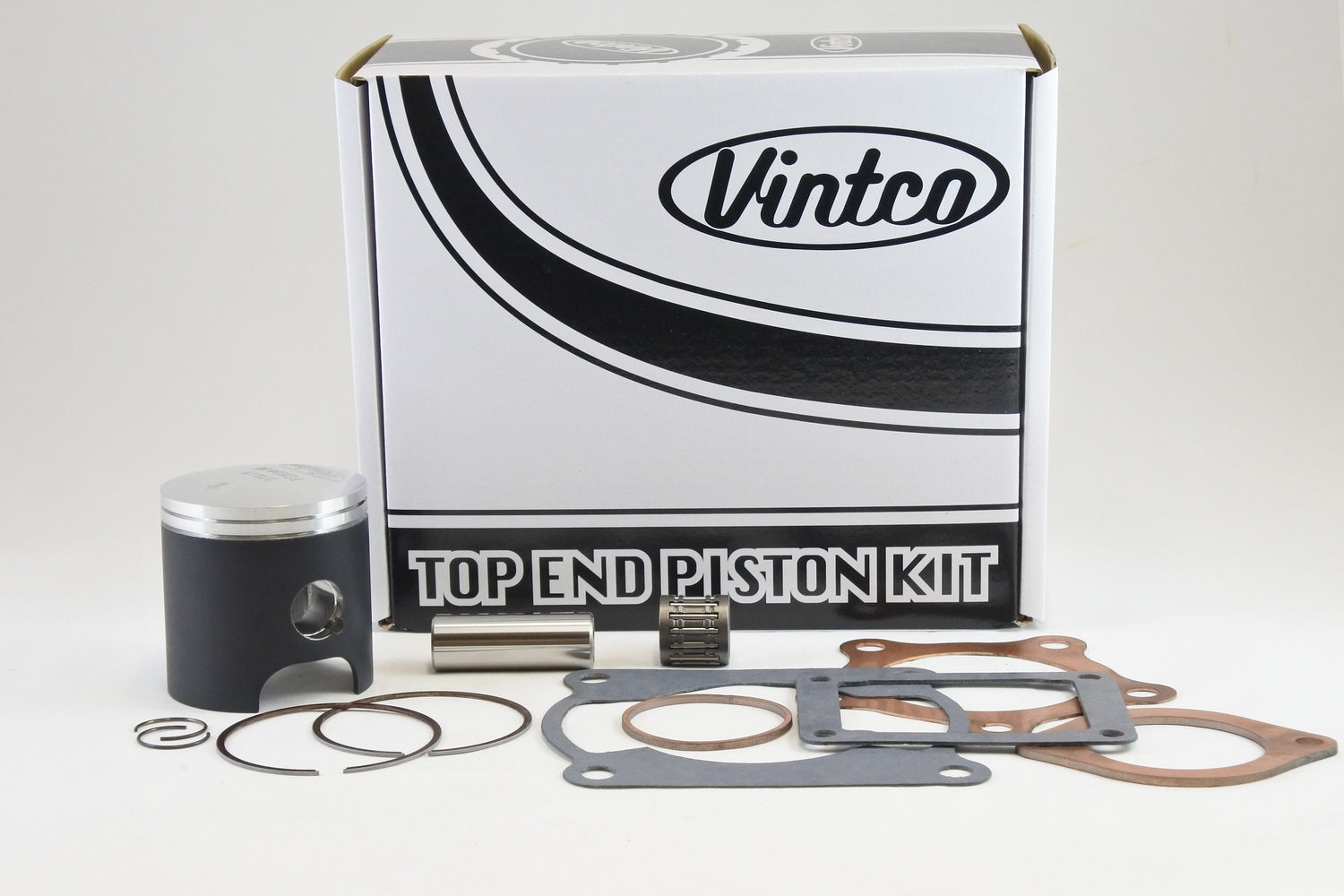

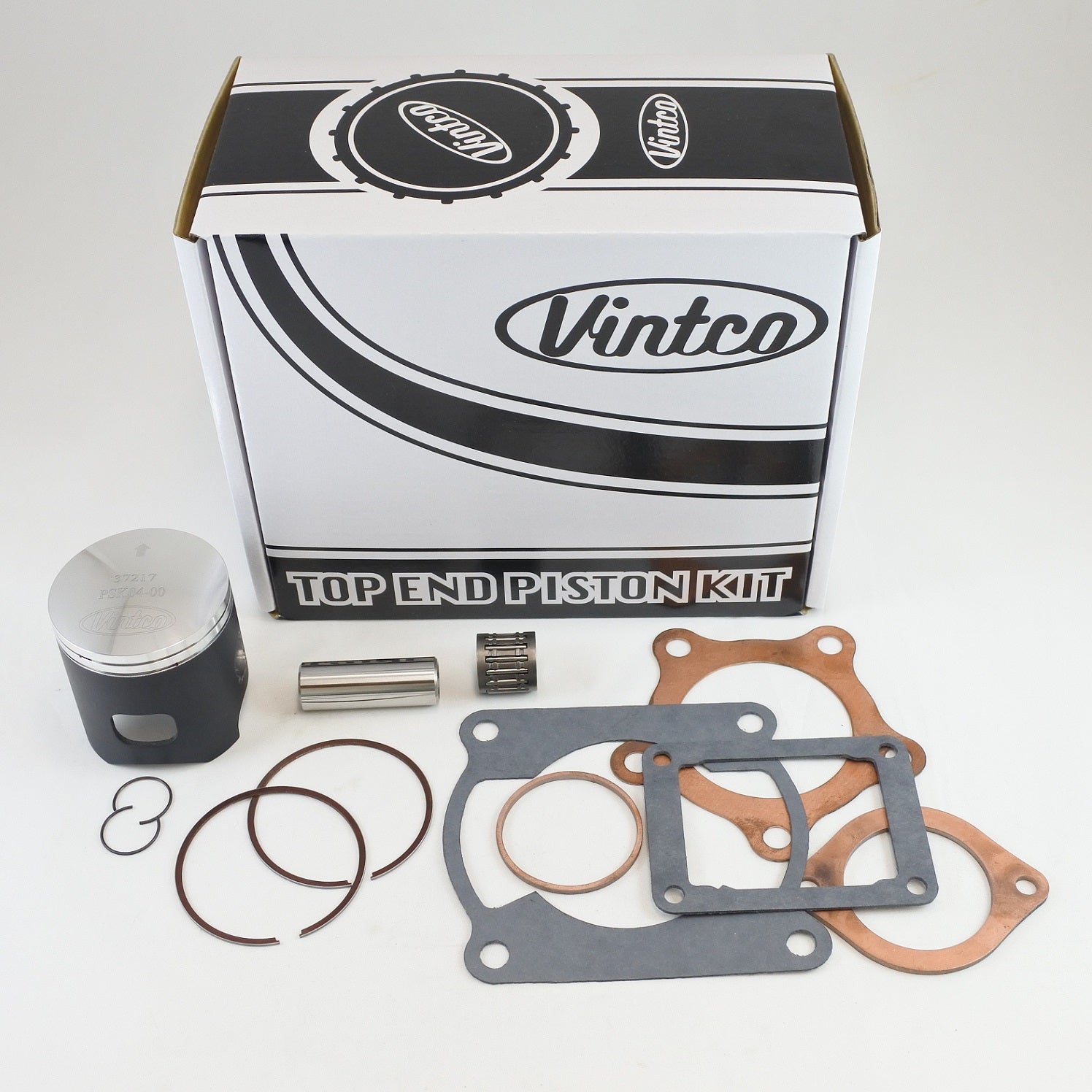

VintCo KTK04-00 is a complete top-end piston kit for 1978-1979 Kawasaki KX125 models, supplied in a 56.0 mm standard-bore configuration. It is intended for top-end rebuilds and includes the piston, rings, pin, clips, wrist pin bearing, and a full top-end gasket set with head, base, intake, and exhaust gaskets for an OEM-fit replacement package.

Features

• Complete top-end rebuild kit for 1978-1979 Kawasaki KX125 models
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gasket and exhaust gaskets
• Manufactured using modern materials and manufacturing techniques for OEM-equivalent fitment and performance
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK04-00
• Bore Size: 56.0 mm
• Bore Type: Standard
• Piston Diameter: 55.94 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2 break-in coating
• Country of Manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13001-1008
• Head Gasket: 11004-1006
• Base Gasket: 11009-1042
• Intake Gasket: 11009-1018
• Exhaust Gasket: 11009-1124
• Exhaust Gasket: 11009-1043
• Wrist Pin Bearing: 13033-1001

Vehicle Fitments

• 1978 Kawasaki KX125
• 1979 Kawasaki KX125
