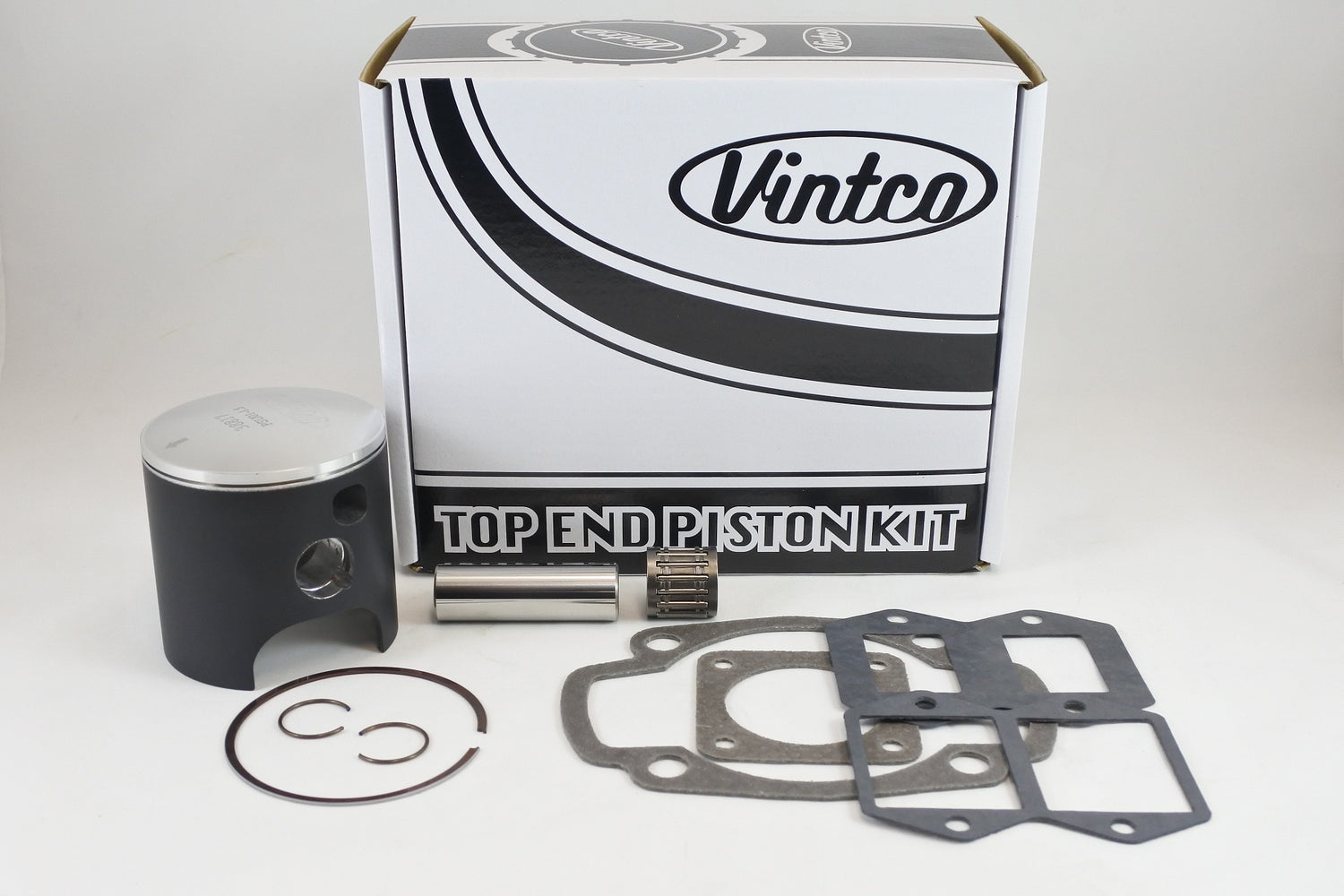

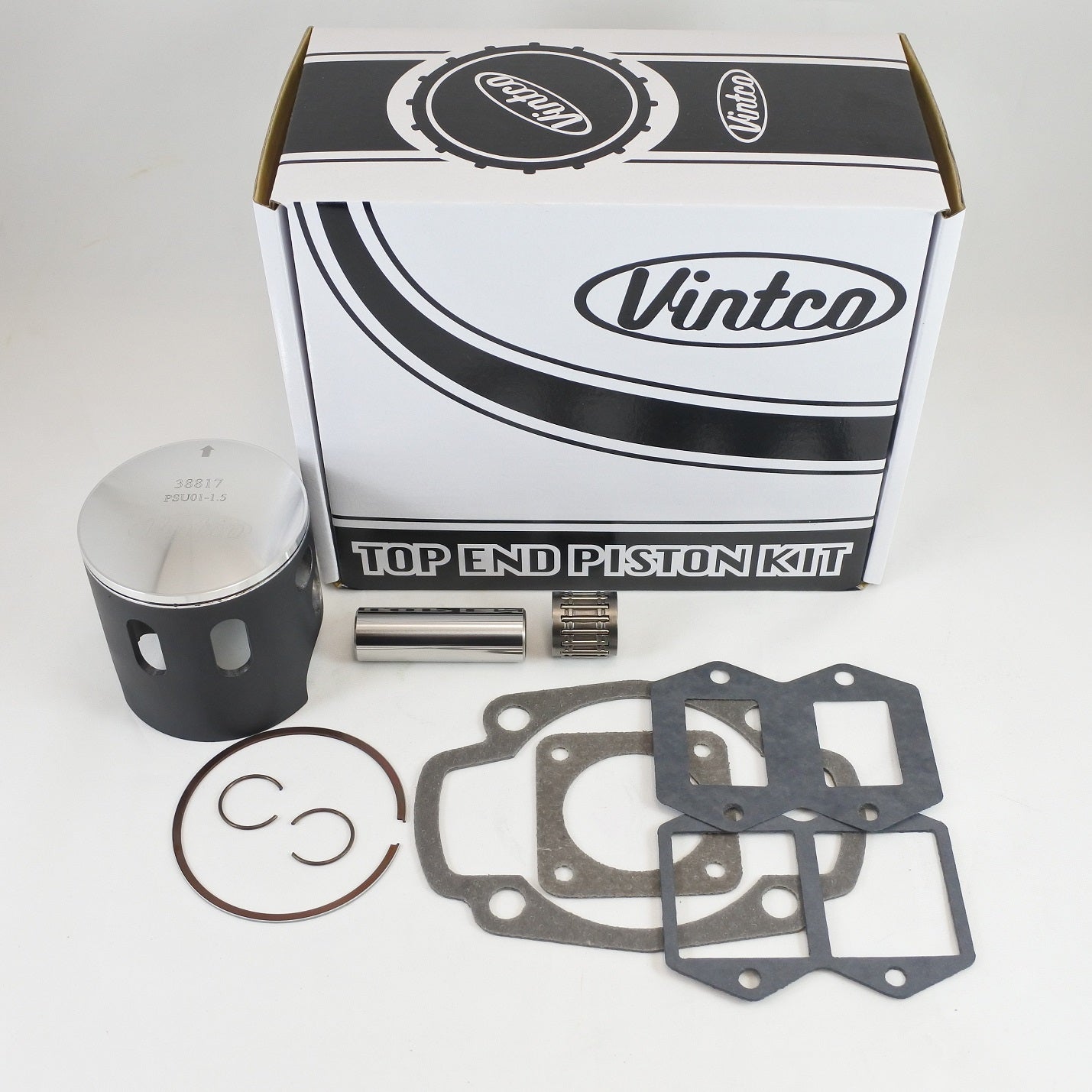

This VintCo top end piston kit is a complete rebuild set for 1978-1979 Husqvarna CR250, OR250 and WR250 models, supplied in a 71.0 mm nominal size with 1.5 mm oversize. It includes a piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set with base, intake and exhaust gaskets. The forged piston is made in Germany and MoS2-coated for running-in, while the kit is priced at 10% less than purchasing the components individually. OEM part numbers are included for fitment reference, and other size options are available in the range.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Gasket set includes base, intake and exhaust gaskets
• Intended for 1978-1979 Husqvarna CR250, OR250 and WR250 models
• Kit price includes a 10% saving compared with buying the items individually

Specifications

• VintCo Part Number: KTU02-1.5
• Product type: Top end piston kit
• Nominal size: 71.0 mm
• Oversize: +1.5 mm
• Piston size: 70.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Base gasket: 1 16 11 597-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 396-01
• Exhaust gasket: 1 16 10 912-01
• Wrist pin bearing: 16 10 933-01

Vehicle Fitments

• 1978 Husqvarna CR250
• 1978 Husqvarna OR250
• 1978 Husqvarna WR250
• 1979 Husqvarna CR250
• 1979 Husqvarna OR250
• 1979 Husqvarna WR250
