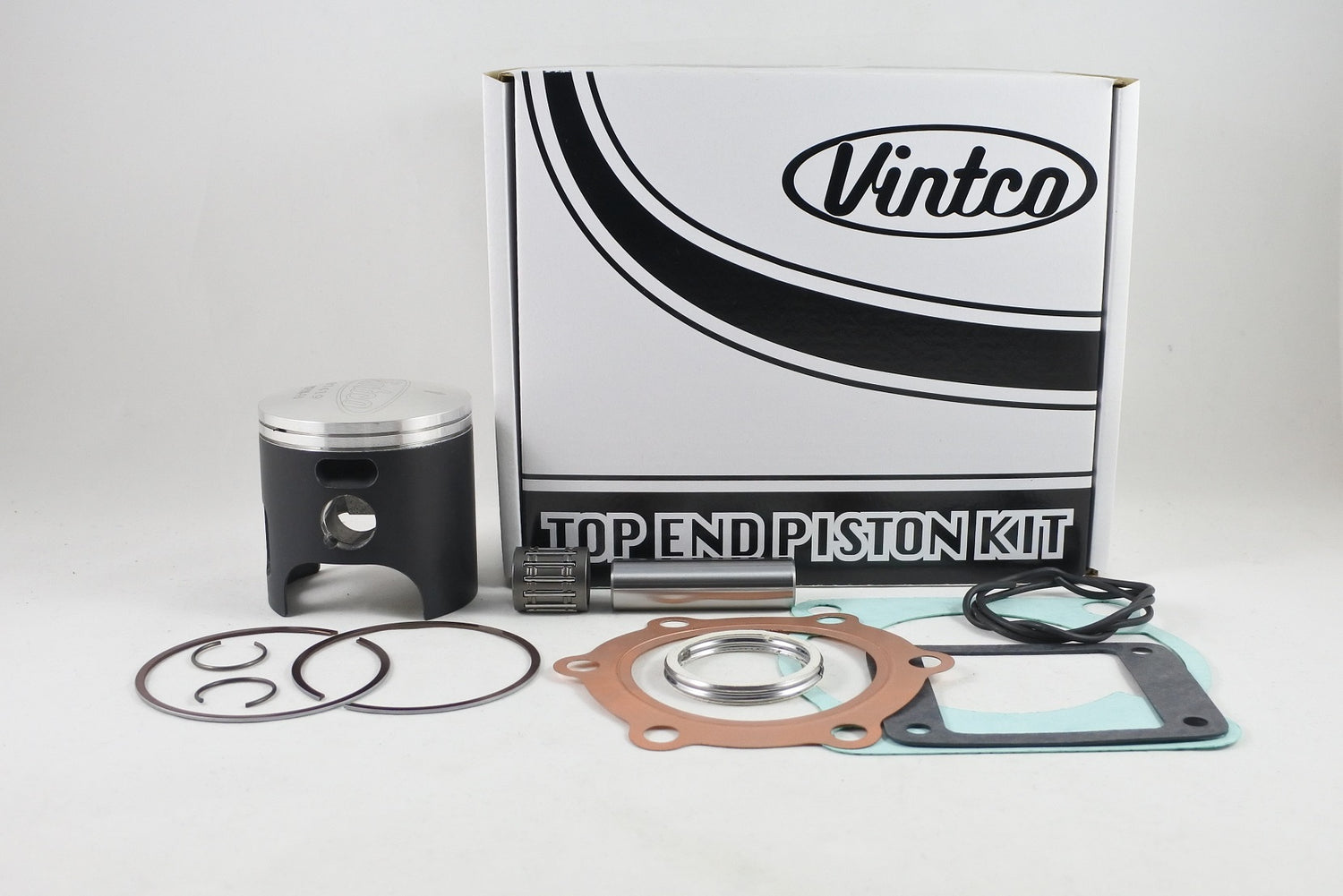

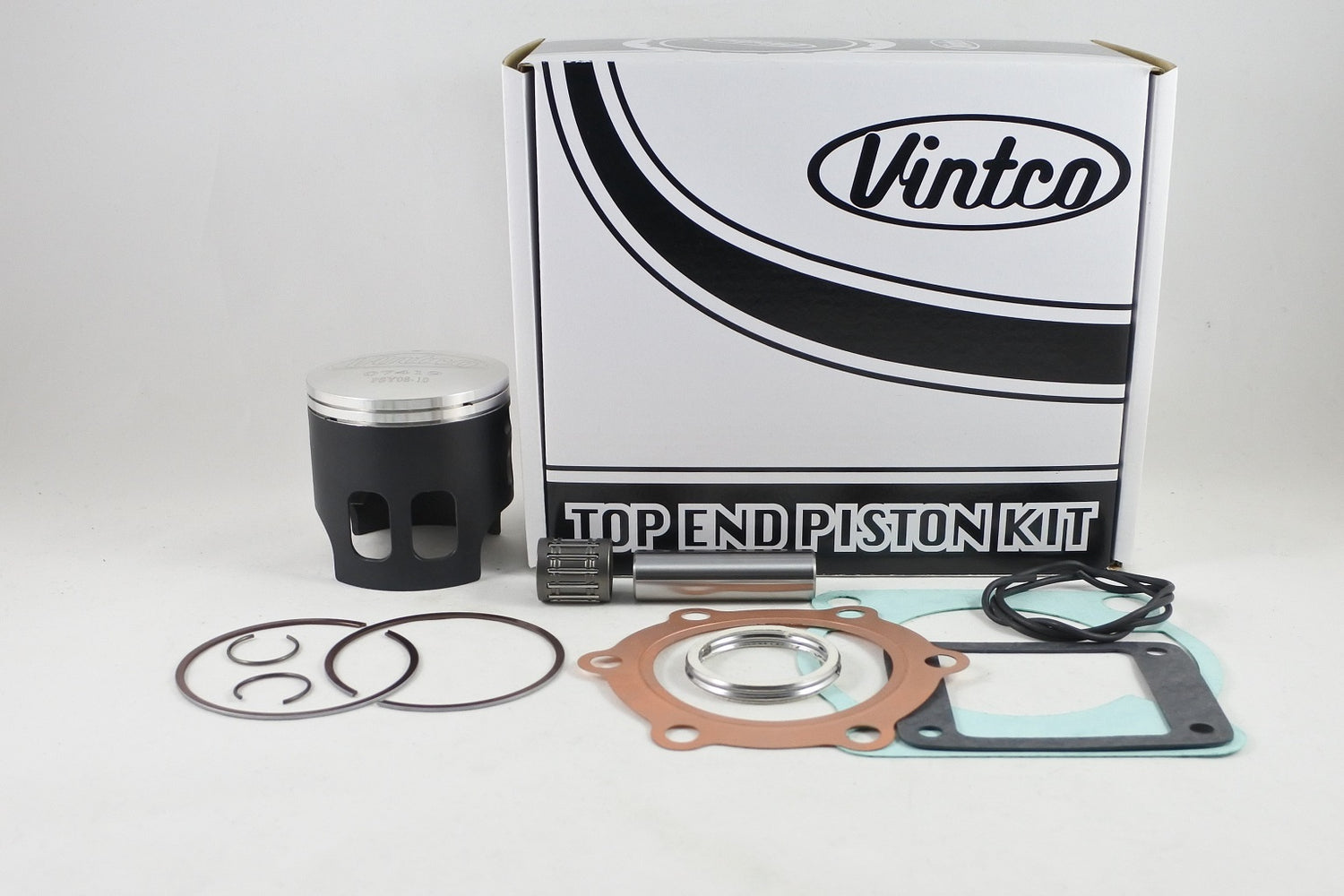

This VintCo top end piston kit is designed for 1977-1979 Yamaha IT175 models and provides the principal components required for a top end rebuild, including a forged piston, head gasket, base gasket, intake gasket, two exhaust pipe gaskets and a wrist pin bearing. Kit pricing includes a 10% reduction compared with purchasing the listed items individually.

Features

• Complete top end kit for Yamaha IT175 applications
• Includes forged piston
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing
• Piston coating supports running-in

Specifications

• VintCo Part Number: KTY27-1.0
• Product type: Top End Piston Kit
• Piston diameter: 67 mm
• Oversize: 1.0 mm
• Piston size: 66.94
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 1W2-11181-00-00
• Base gasket: 3TN-11351-00-00
• Intake gasket: 3TT-13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00
• Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

• 1977 Yamaha IT175
• 1978 Yamaha IT175
• 1979 Yamaha IT175
