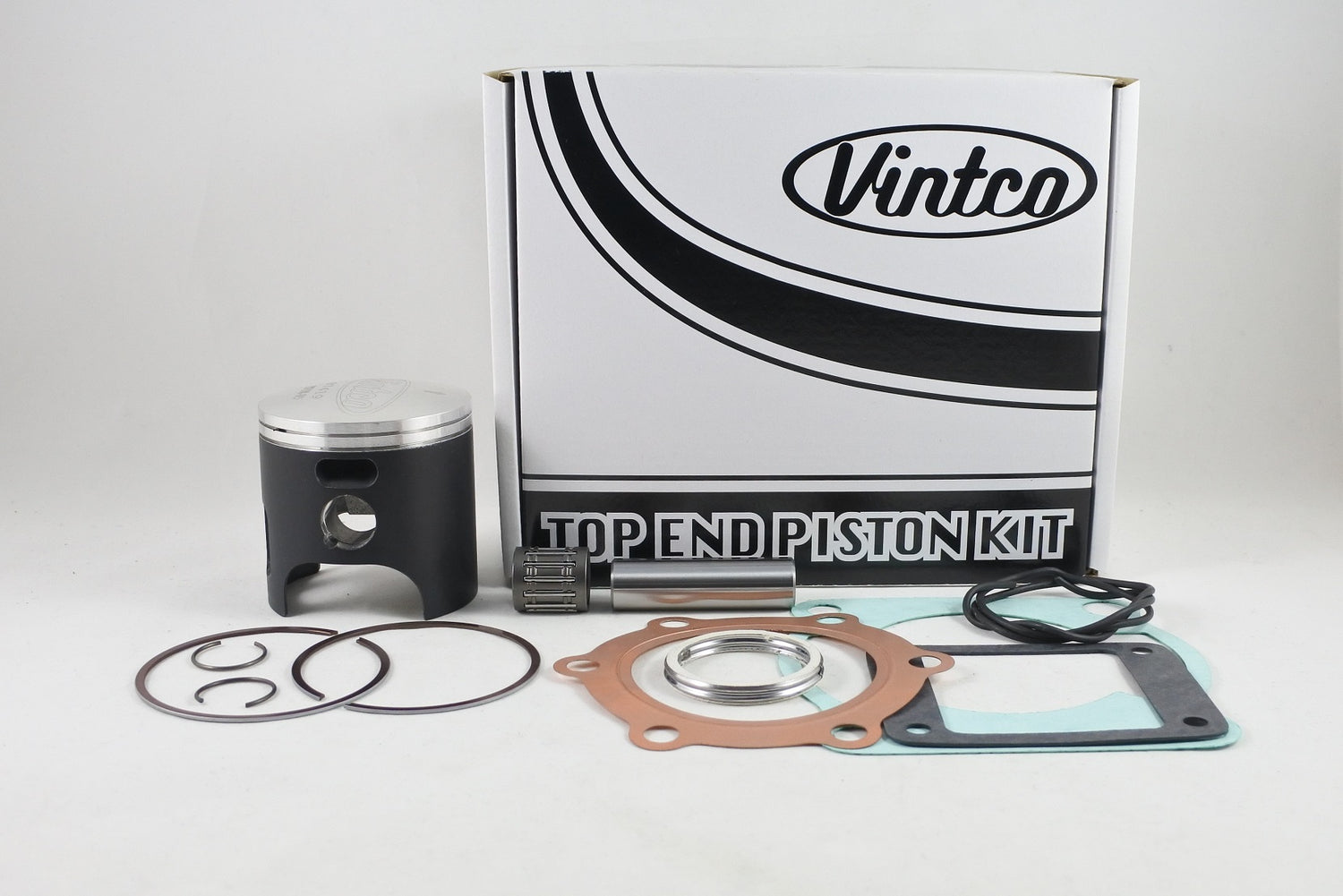

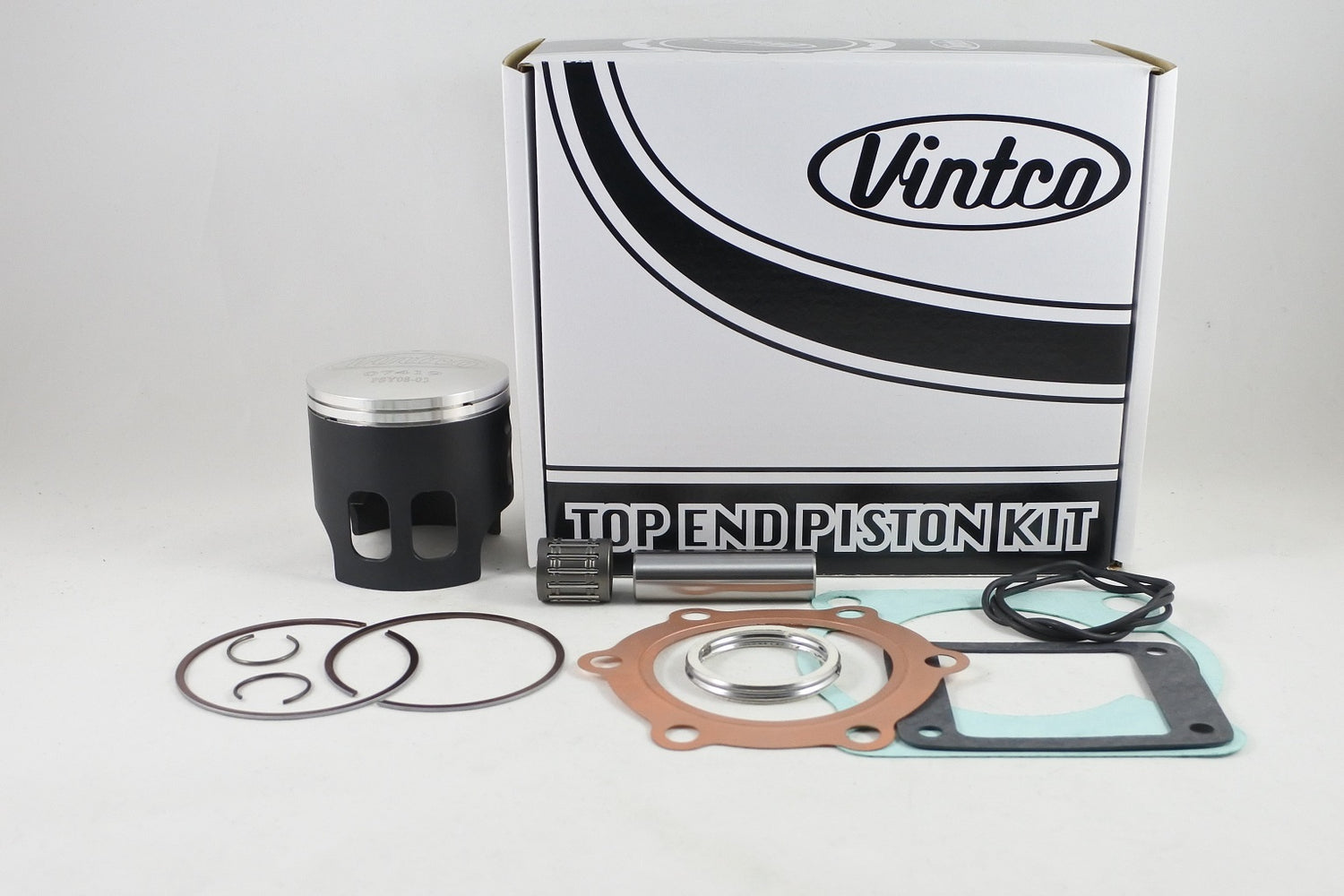

VintCo top end piston kit for 1977-1979 Yamaha IT175 models, supplied for top end rebuild work with a forged piston made in Germany, MOS2 coating for break-in, the required gaskets, and a wrist pin bearing. This kit is priced at a 10% discount compared with the individual items and is specified as a 66.5 mm, 0.5 mm oversize assembly.

Features

• Complete top end piston kit
• Includes forged piston made in Germany
• MOS2 coated for break-in
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gaskets
• Includes wrist pin bearing
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY27-0.5
• Item Category: Top End Piston Kits
• Size: 66.5 mm
• Oversize: 0.5 mm
• Piston measurement: 66.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 1W2-11181-00-00
• Base gasket: 3TN-11351-00-00
• Intake gasket: 3TT-13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00
• Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

• 1977 Yamaha IT175
• 1978 Yamaha IT175
• 1979 Yamaha IT175
