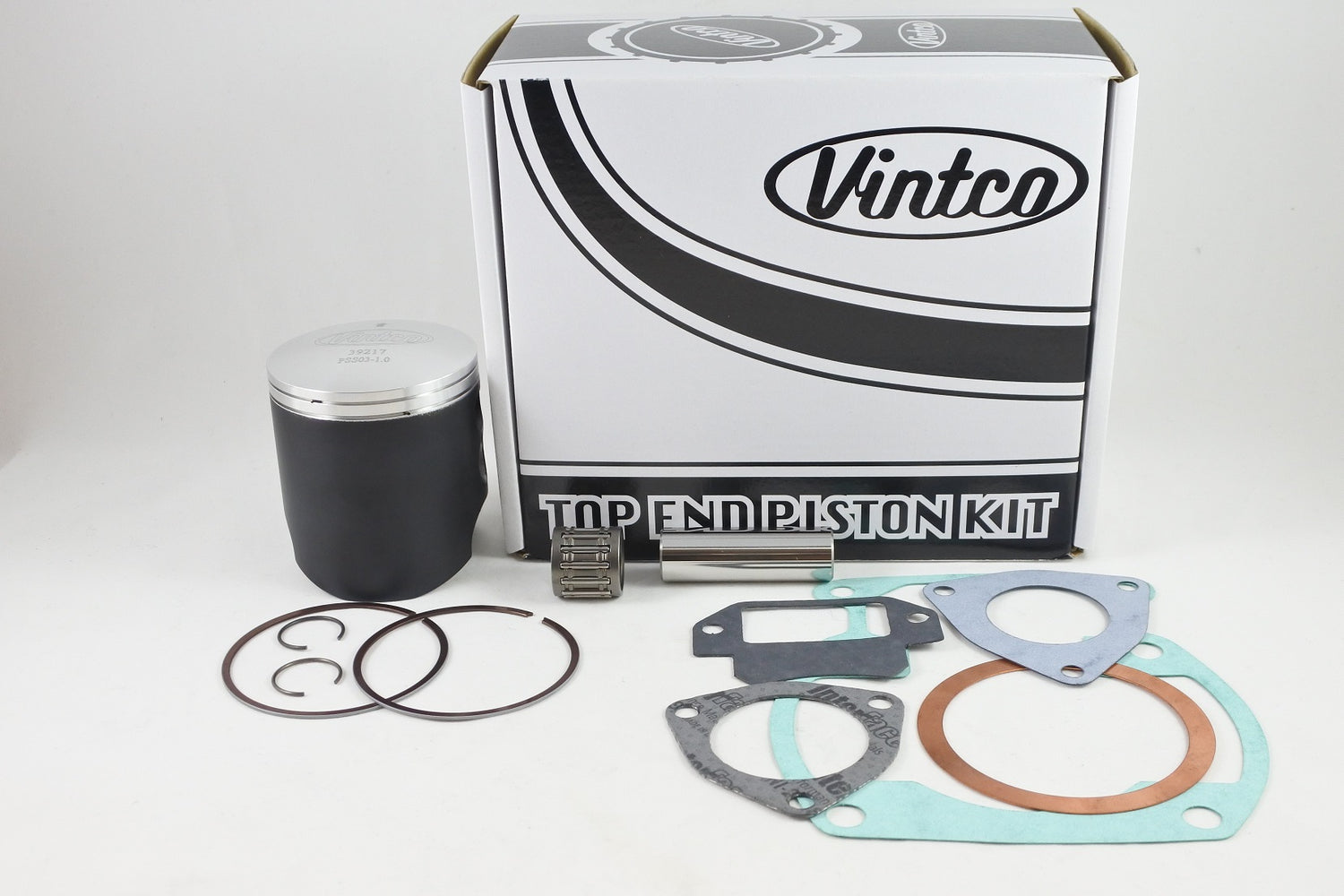

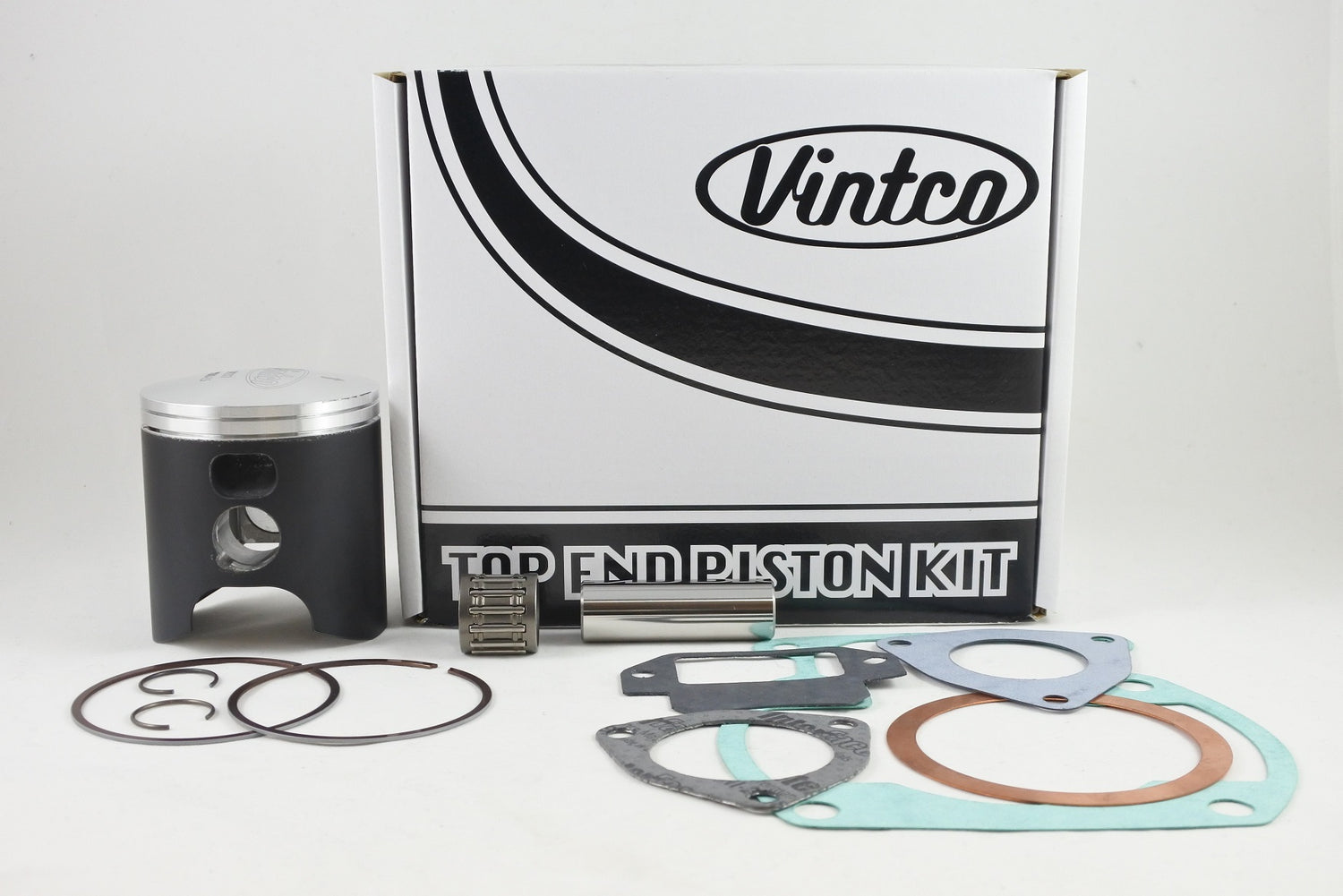

VintCo KTS03-1.0 is a top end piston kit for Suzuki RM250 and PE250 models, covering RM250 1977-1978 and PE250 1977-1979. Intended for complete top-end rebuilds, the kit includes a piston, rings, pin, clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake, and exhaust gaskets. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance. The kit is priced at 10% less than purchasing the included parts individually, and additional size options are available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head, base, intake and exhaust gaskets
• OEM part numbers supplied for exact fitment
• Priced at 10% less than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS03-1.0
• Product type: Top end piston kit
• Piston construction: Forged
• Piston manufacturing origin: Germany
• Piston coating: MoS2
• Nominal piston size: 68.0 mm
• Piston oversize: +1.0 mm
• Piston measured diameter: 67.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-16300
• Base gasket: 11241-41100-H17
• Intake gasket: 13156-41100-H17
• Intake gasket: 13125-40000
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki PE250
