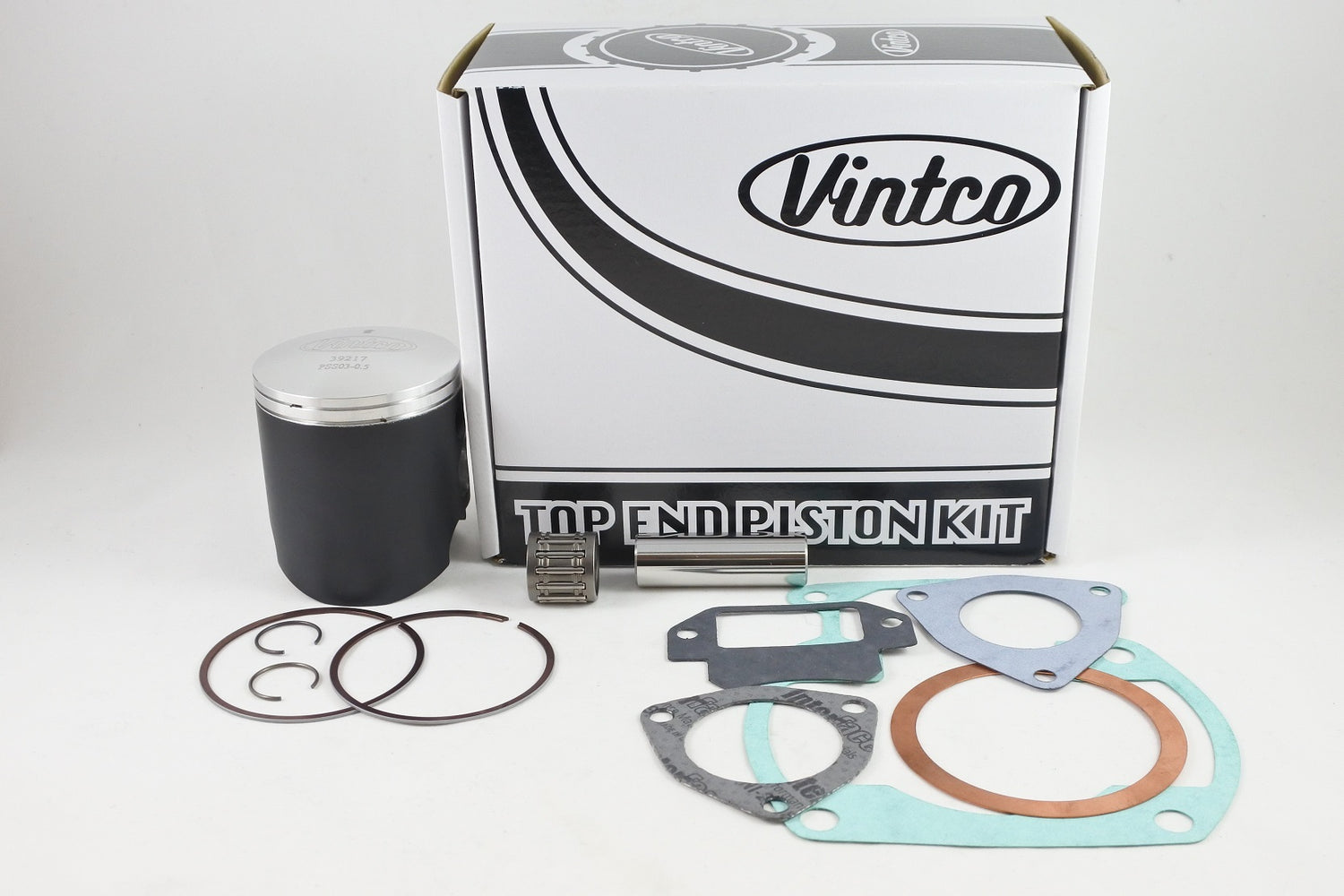

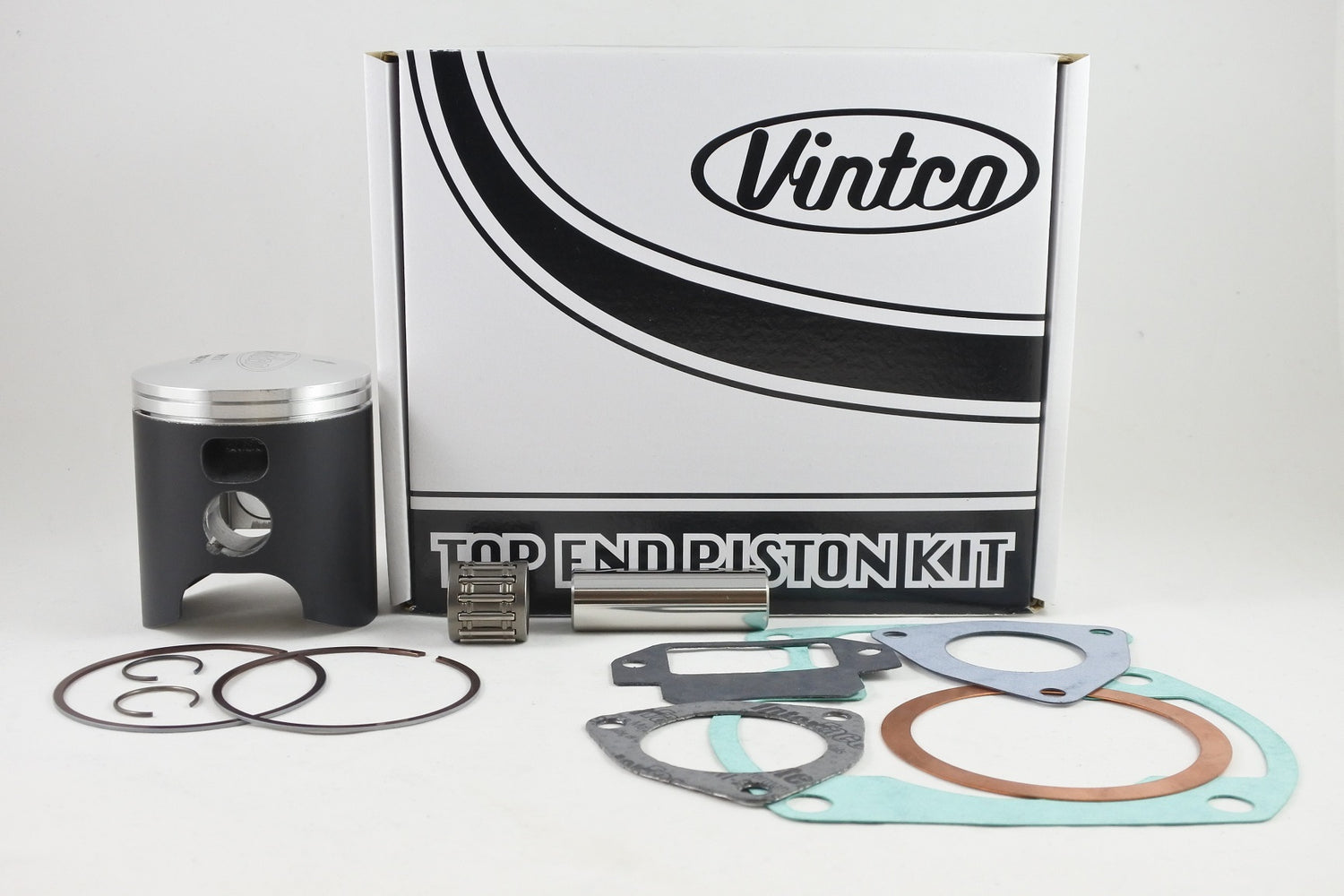

VintCo top end piston kit KTS03-0.5 is a complete rebuild kit for 1977-1978 Suzuki RM250 and 1977-1979 Suzuki PE250 models. It includes a piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. This kit is supplied in a +0.5 mm oversize for top-end rebuilding, is manufactured using modern materials and production methods for OEM-level fitment and performance, and is priced at 10% less than purchasing the listed components individually. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Gasket set includes head gasket, base gasket, intake gaskets and exhaust gasket
• Intended for top-end rebuilds on listed Suzuki RM250 and PE250 models
• Manufactured using modern materials and production methods for OEM-level fitment and performance
• Kit price includes a 10% reduction compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS03-0.5
• Product type: Top End Piston Kit
• Nominal piston size: 67.5 mm
• Oversize: +0.5 mm
• Piston diameter: 67.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 break-in coating
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-40312-050
• Head gasket: 11141-16300
• Base gasket: 11241-41100-H17
• Intake gasket: 13156-41100-H17
• Intake gasket: 13125-40000
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki PE250
