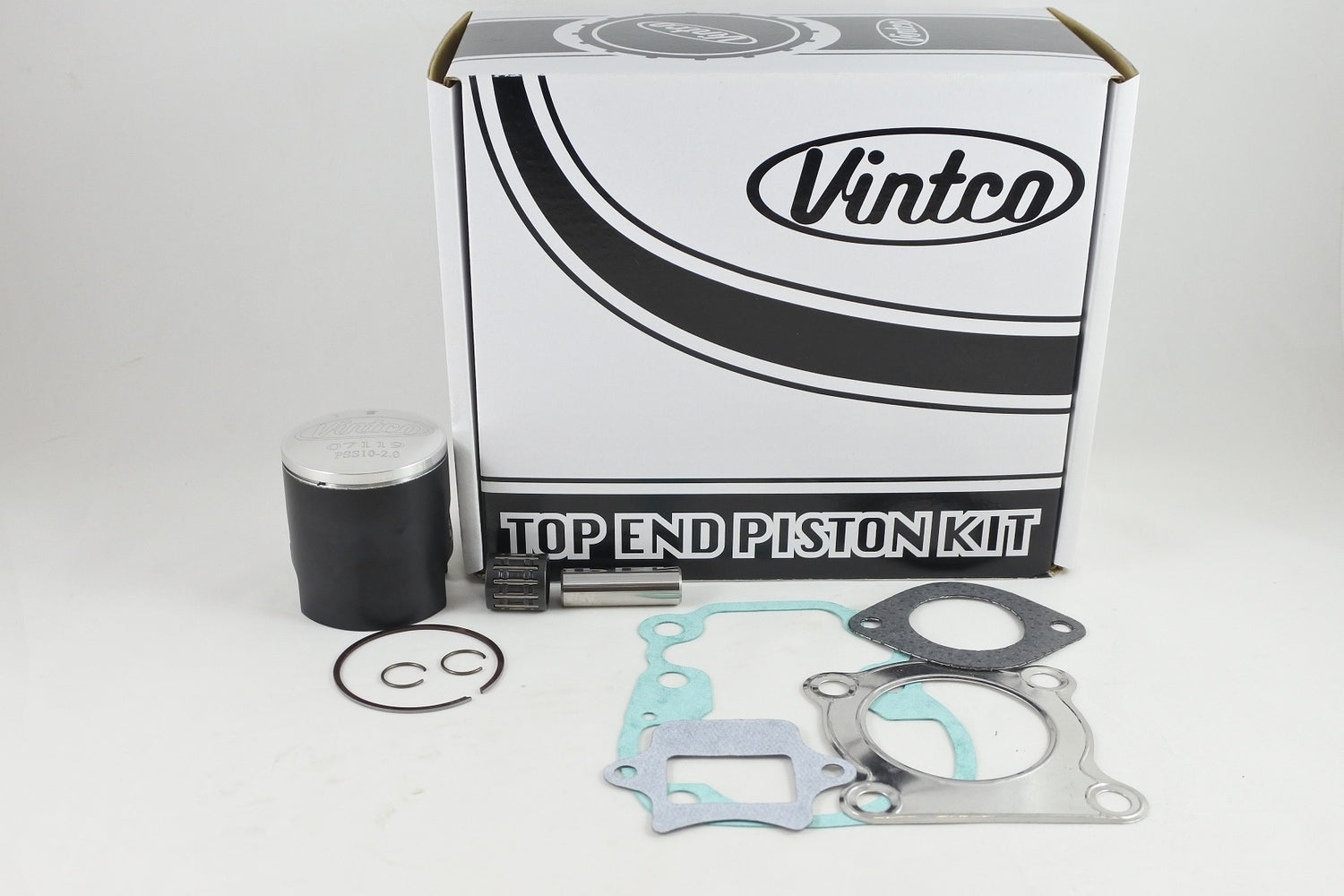

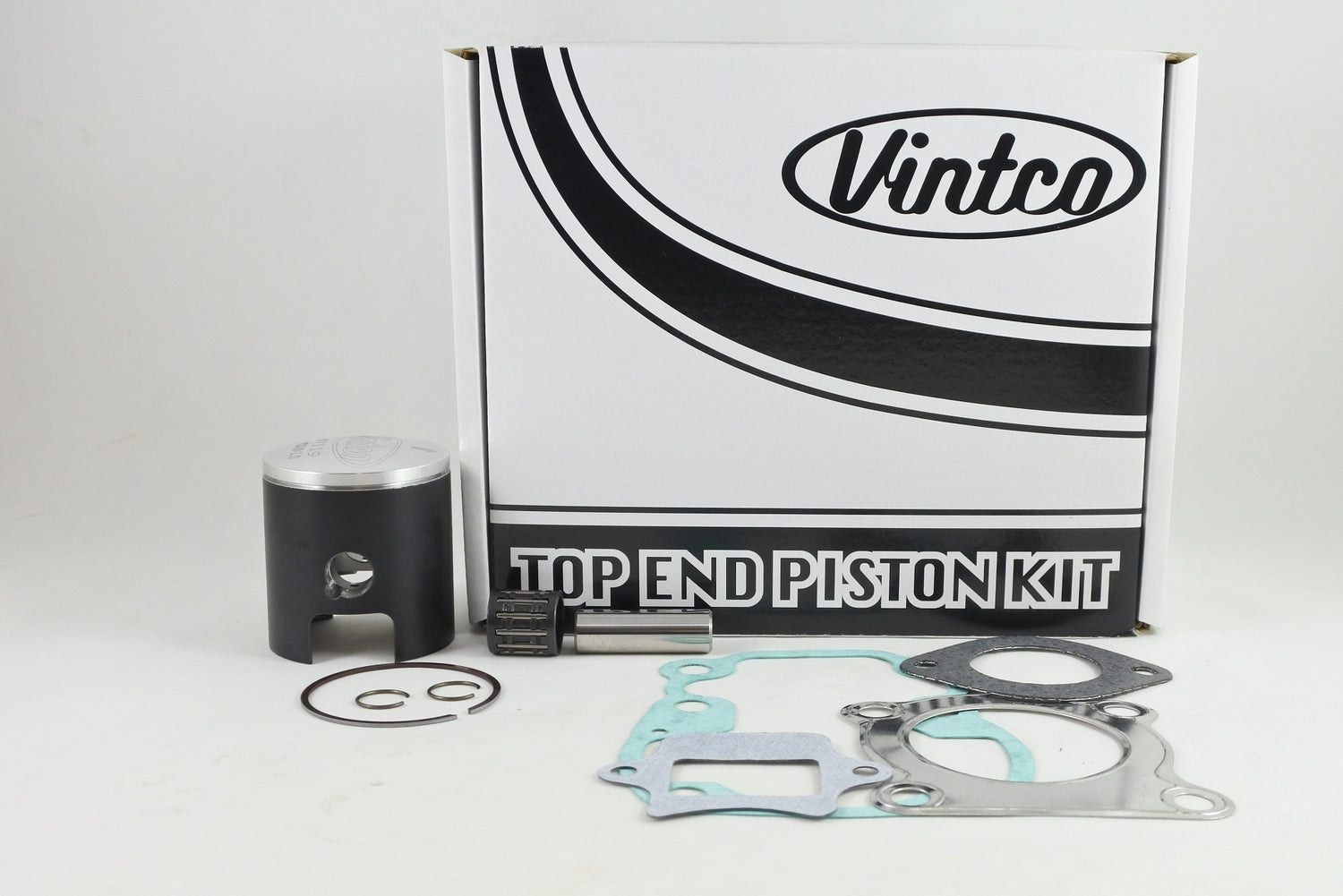

This VintCo top end piston kit is for the 1977 Suzuki RM80 and is supplied as a complete rebuild set with a piston, rings, pin, clips, wrist pin bearing, and full top-end gasket kit. It is designed to provide OEM-equivalent fitment and performance using modern materials and manufacturing methods. The kit includes a 50.95 mm piston, commonly listed as 51 mm, in +2.0 mm oversize with 0.05 mm clearance. Kit pricing reflects a 10% saving compared with purchasing the components individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Manufactured using modern materials and production methods for OEM-equivalent fitment and performance
• Costed at 10% less than buying the components individually
• Additional size options available

Specifications

• VintCo Part Number: KTS11-2.0
• Piston size: 50.95 mm
• Listed size: 51 mm
• Oversize: +2.0 mm
• Clearance: 0.05 mm
• Piston type: Forged
• Piston coating: German MoS2 coating

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46010
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1977 Suzuki RM80
