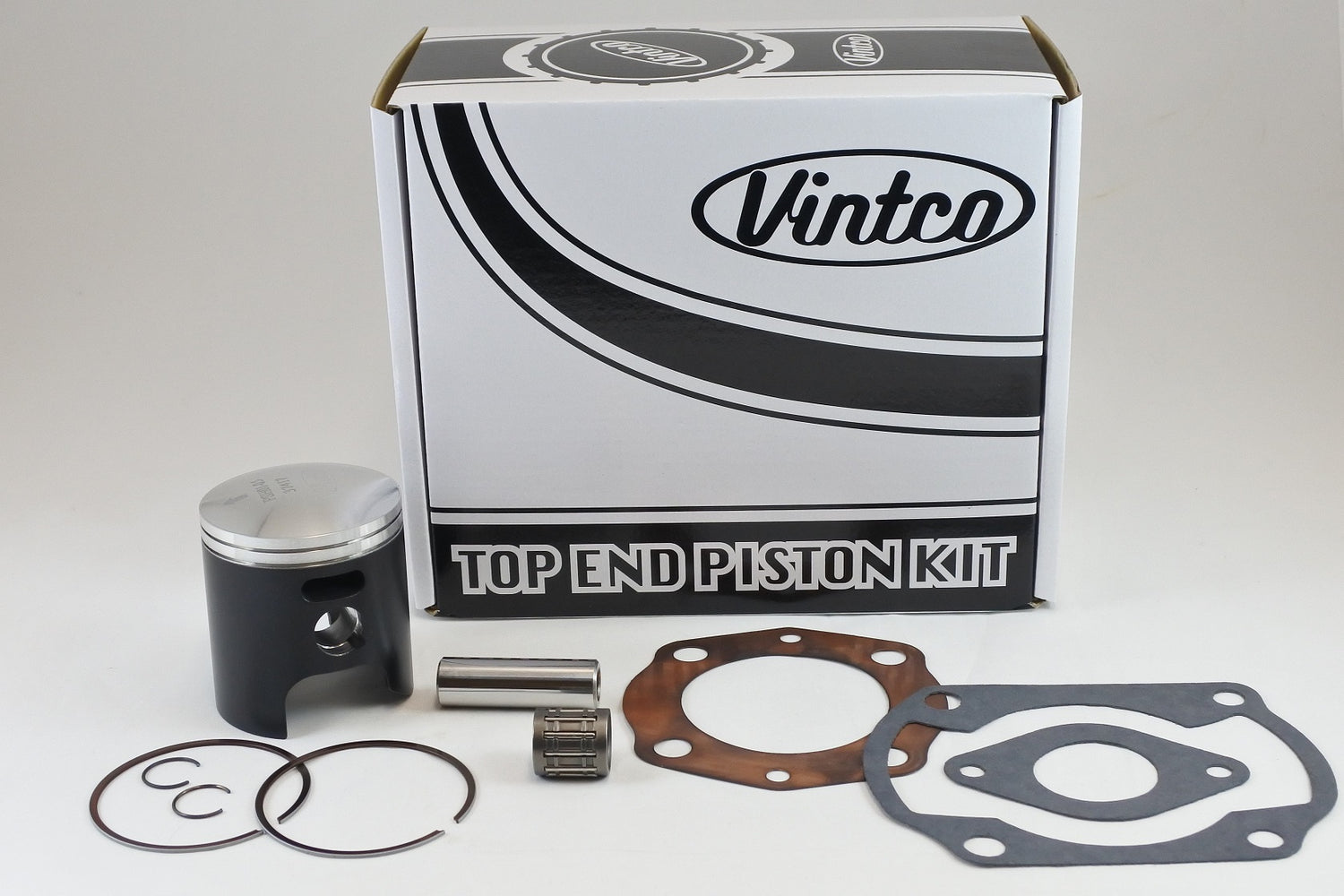

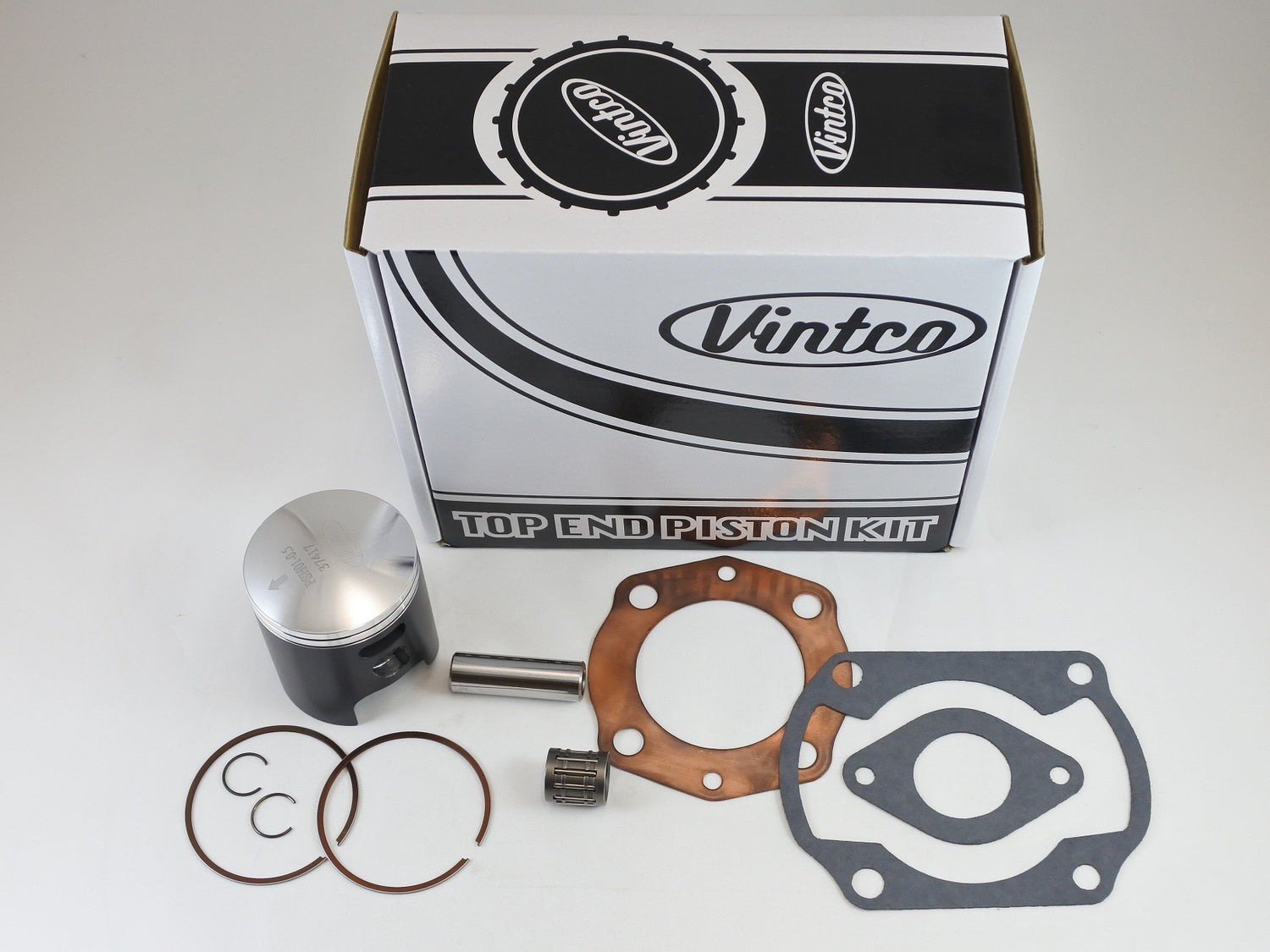

VintCo top end piston kit KTH02-0.5 is a complete rebuild kit for 1976-1978 Honda CR125 models. It includes a forged piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit comprising head, base, intake and exhaust gaskets. The kit is supplied in 56.5 mm (+0.5 mm over) size and is manufactured using modern materials and production methods for OEM-equivalent fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket kit includes head gasket, base gasket, intake gasket and exhaust gasket
• Kit price represents a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH02-0.5
• Size: 56.5 mm
• Oversize: +0.5 mm over
• Piston diameter: 56.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13103-360-700
• Head gasket: 12251-360-000
• Base gasket: 12191-373-306
• Intake gasket: 16212-360-306
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1976 Honda CR125
• 1977 Honda CR125
• 1978 Honda CR125
