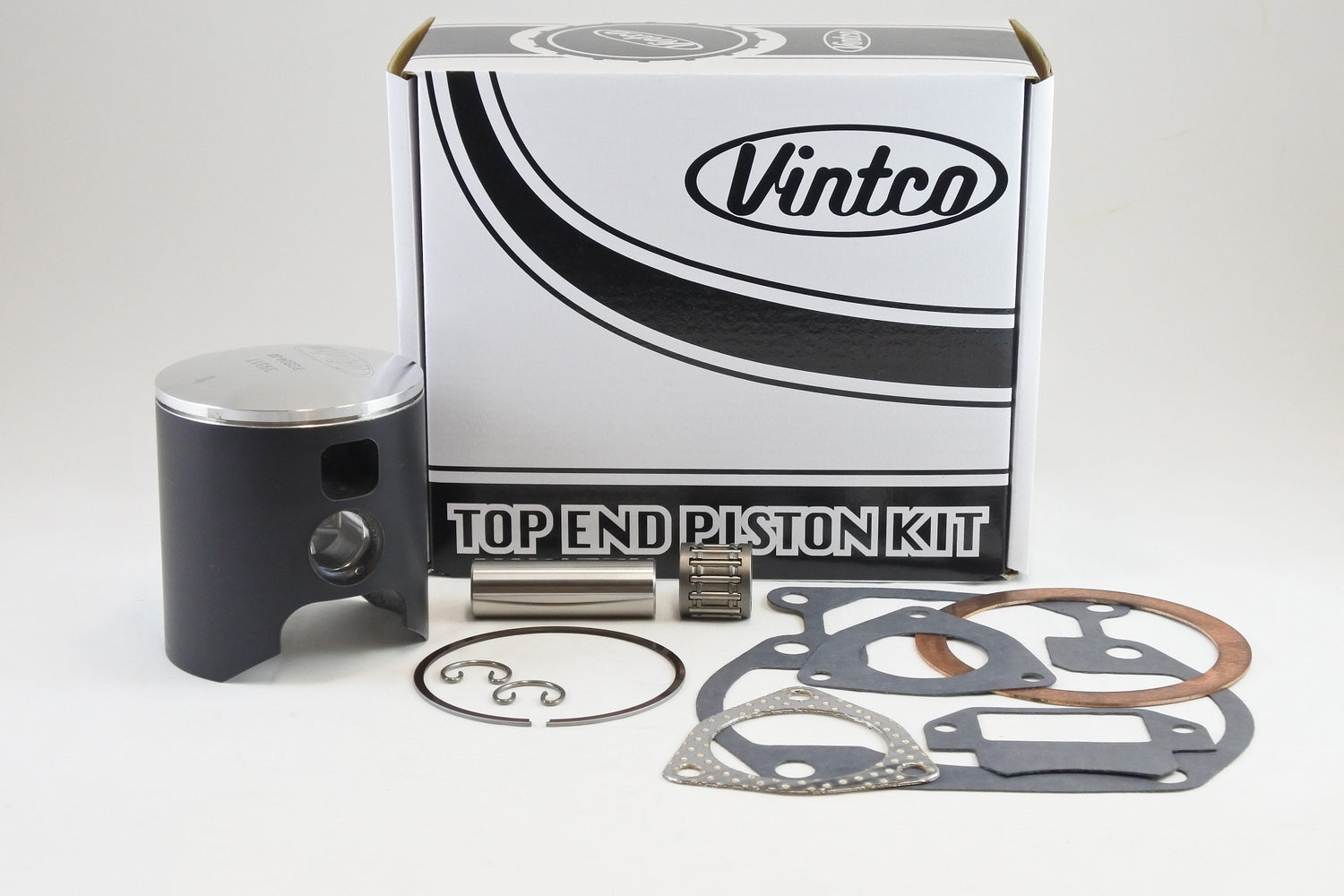

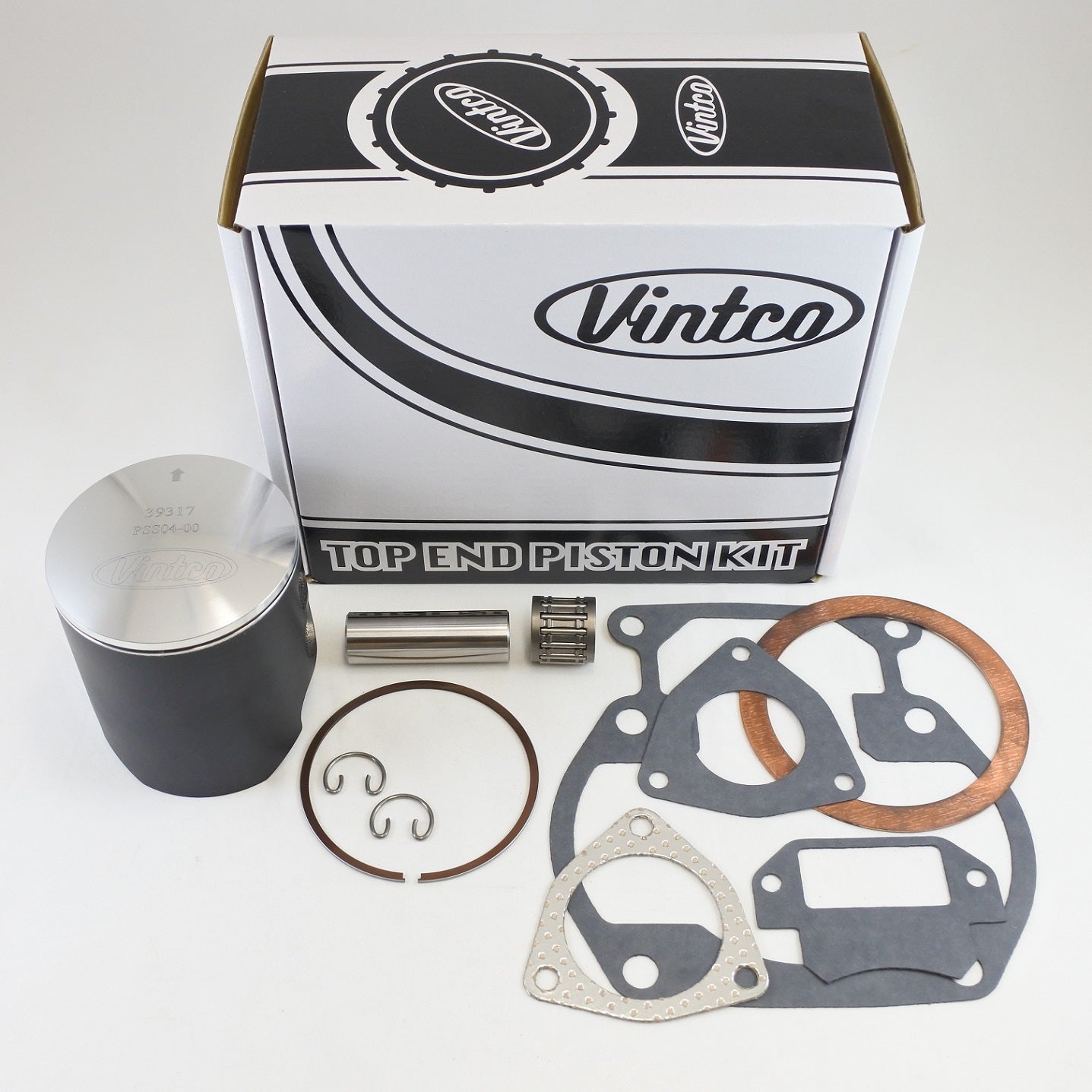

This VintCo top end piston kit is a complete rebuild set for 1976-1977 Suzuki RM370 models with a standard 77.0 mm bore. It includes the piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit comprising the head gasket, base gasket, intake gaskets and exhaust gasket. The kit is intended to simplify top-end rebuild work while providing OEM-matched fitment, and is supplied as a package at a 10% lower cost than purchasing the components separately.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Suits standard bore applications
• Intended for 1976-1977 Suzuki RM370 models
• Manufactured using modern materials and production methods for OEM-equivalent fit and performance
• Supplied as a package at 10% less than buying the items individually

Specifications

• VintCo Part Number: KTS06-00
• Bore size: 77.0 mm standard
• Piston diameter: 76.92 mm
• Piston clearance: 0.08 mm
• Forged piston
• MoS2-coated piston for break-in
• Piston manufactured in Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-41202
• Head gasket: 11141-41210
• Base gasket: 11241-14200-H17
• Intake gasket: 13156-41100-H17
• Intake gasket: 13125-40000
• Exhaust gasket: 14181-41201-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1976 Suzuki RM370
• 1977 Suzuki RM370
