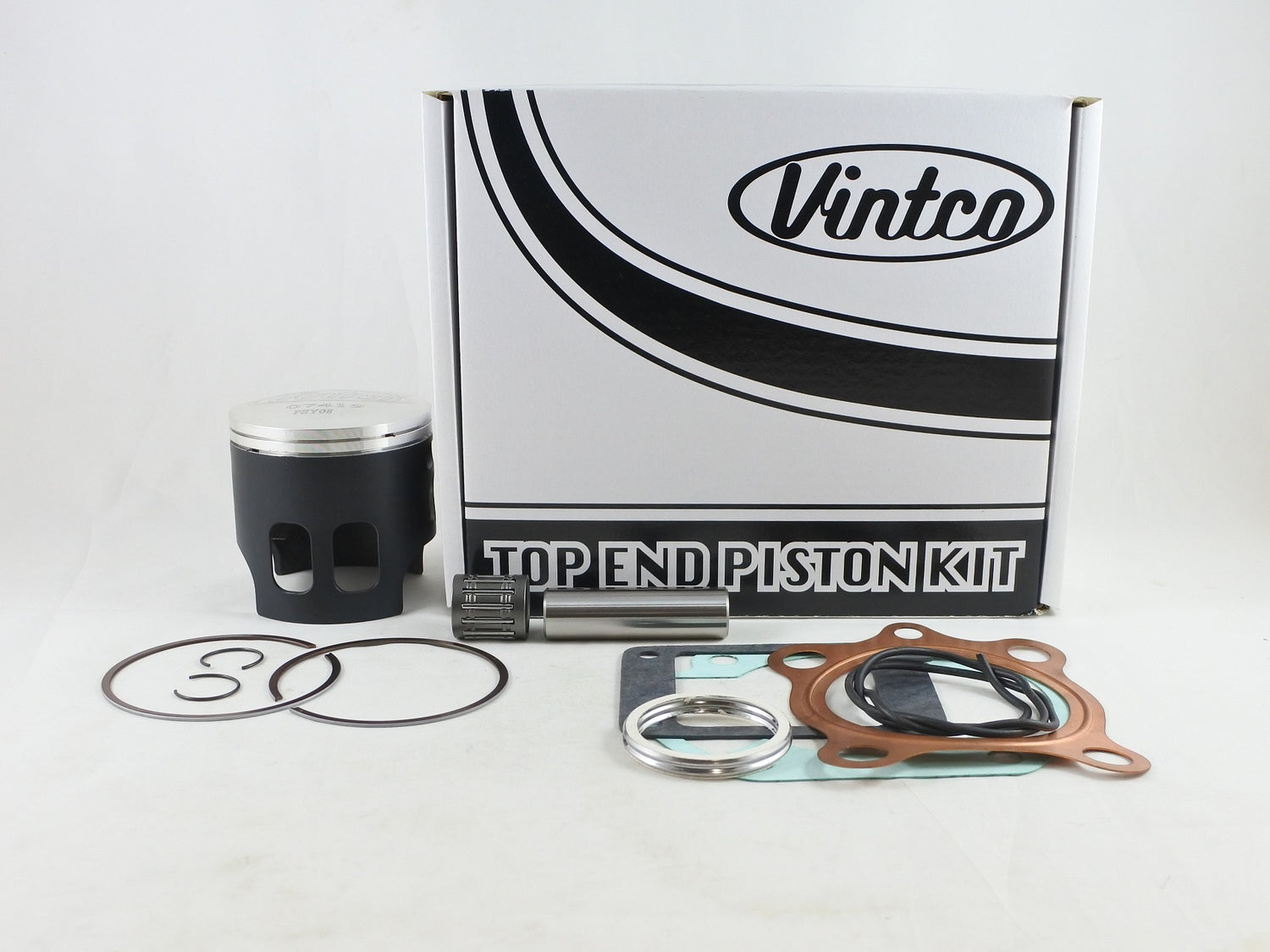

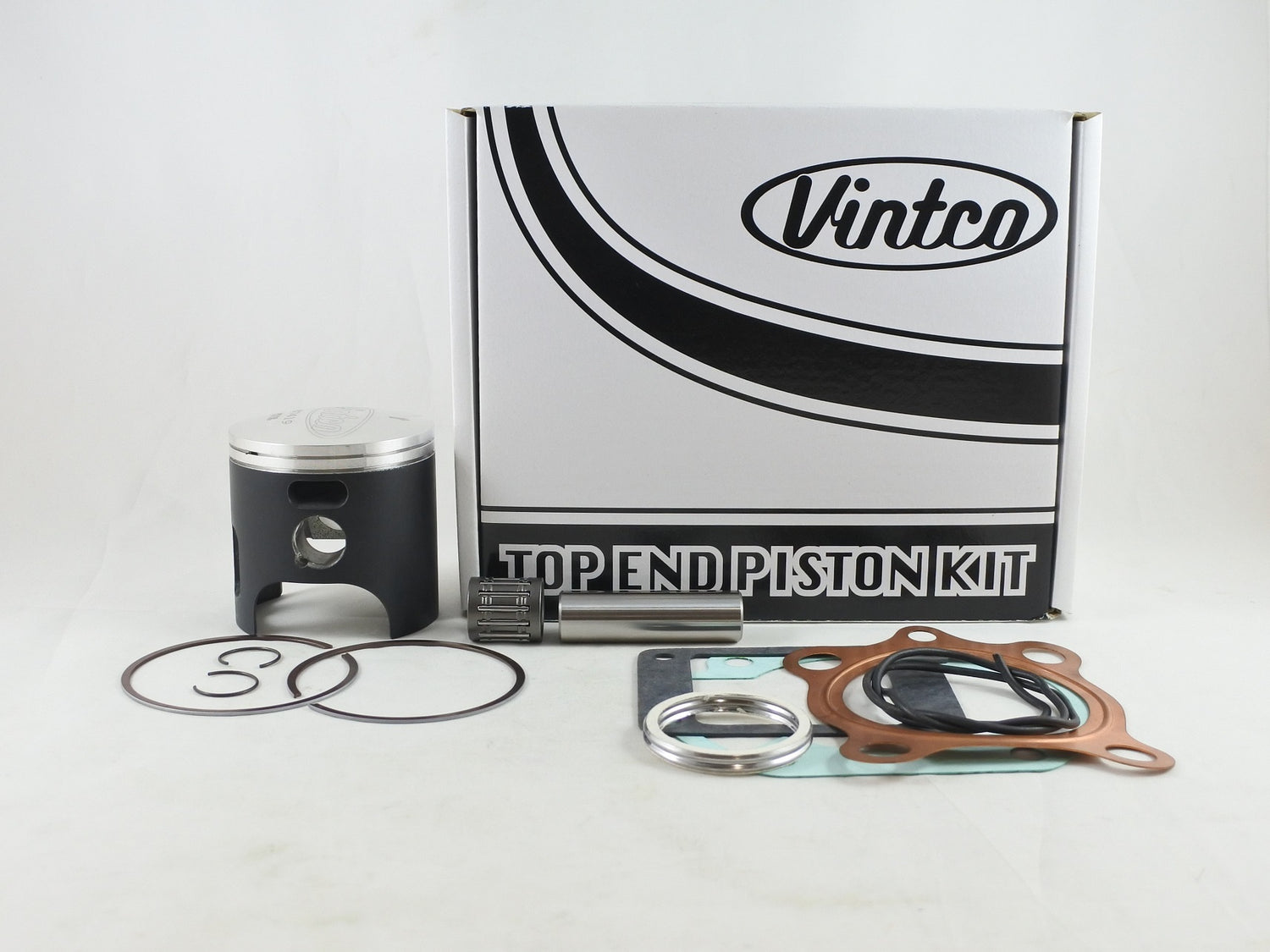

This top end piston kit is designed for the 1976 Yamaha YZ175 and includes the components required for a top-end rebuild in a 68 mm, 2.0 mm oversize configuration. The kit includes a forged piston, matched gaskets and a wrist pin bearing, with kit pricing set at 10% less than purchasing the items individually.

Features

• Complete top end piston kit for top-end service
• Includes forged piston
• Piston supplied with break-in coating
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY68-2.0
• Piston size: 68 mm
• Oversize: 2.0 mm over
• Actual piston diameter: 67.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 1L8-11181-01-00
• Cylinder Base Gasket: 1L8-11351-01-00
• Intake Gasket: 3TT-13621-00-00
• Exhaust Pipe Gasket: 3PA-14613-10-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1976 Yamaha YZ175
