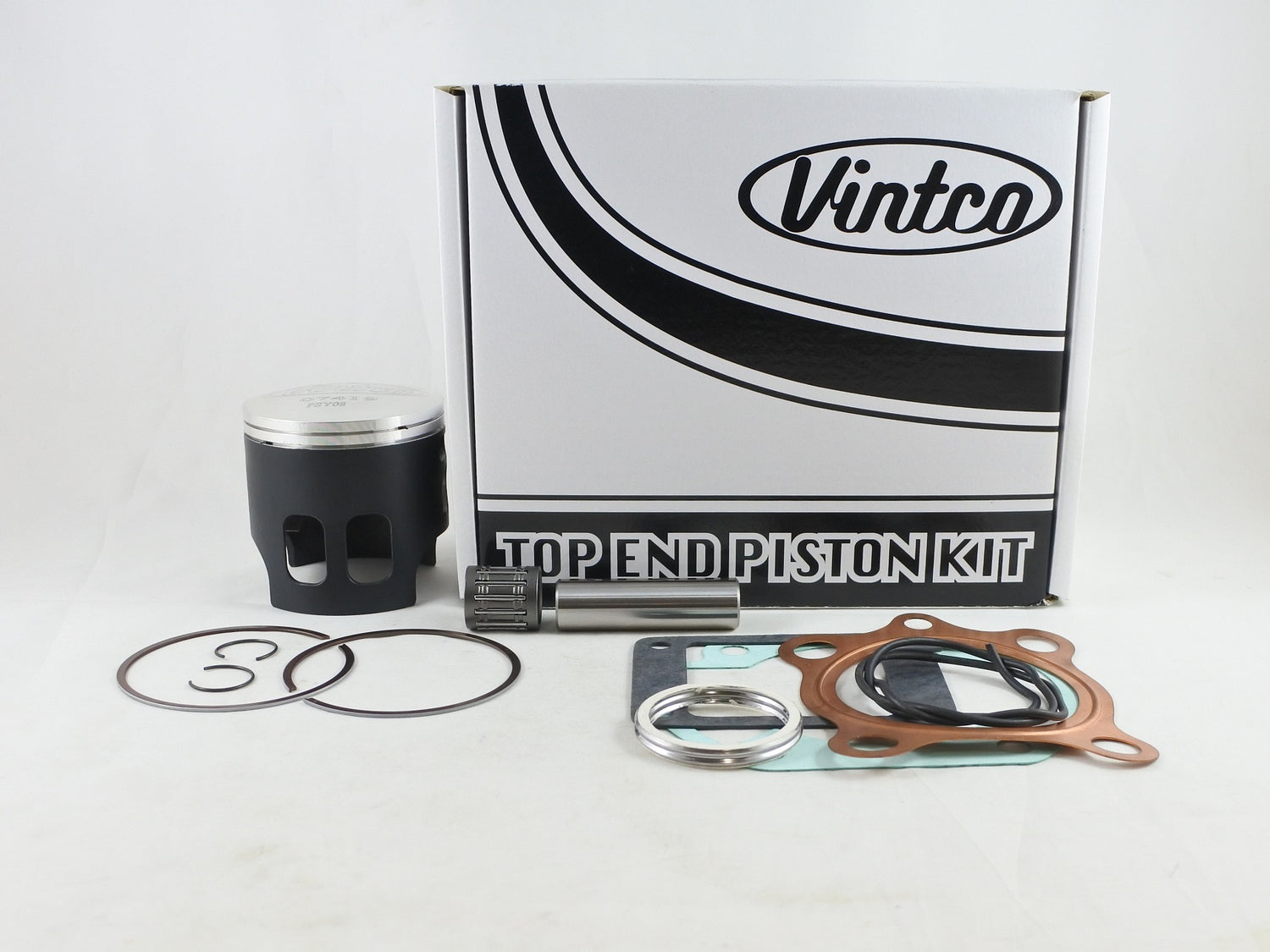

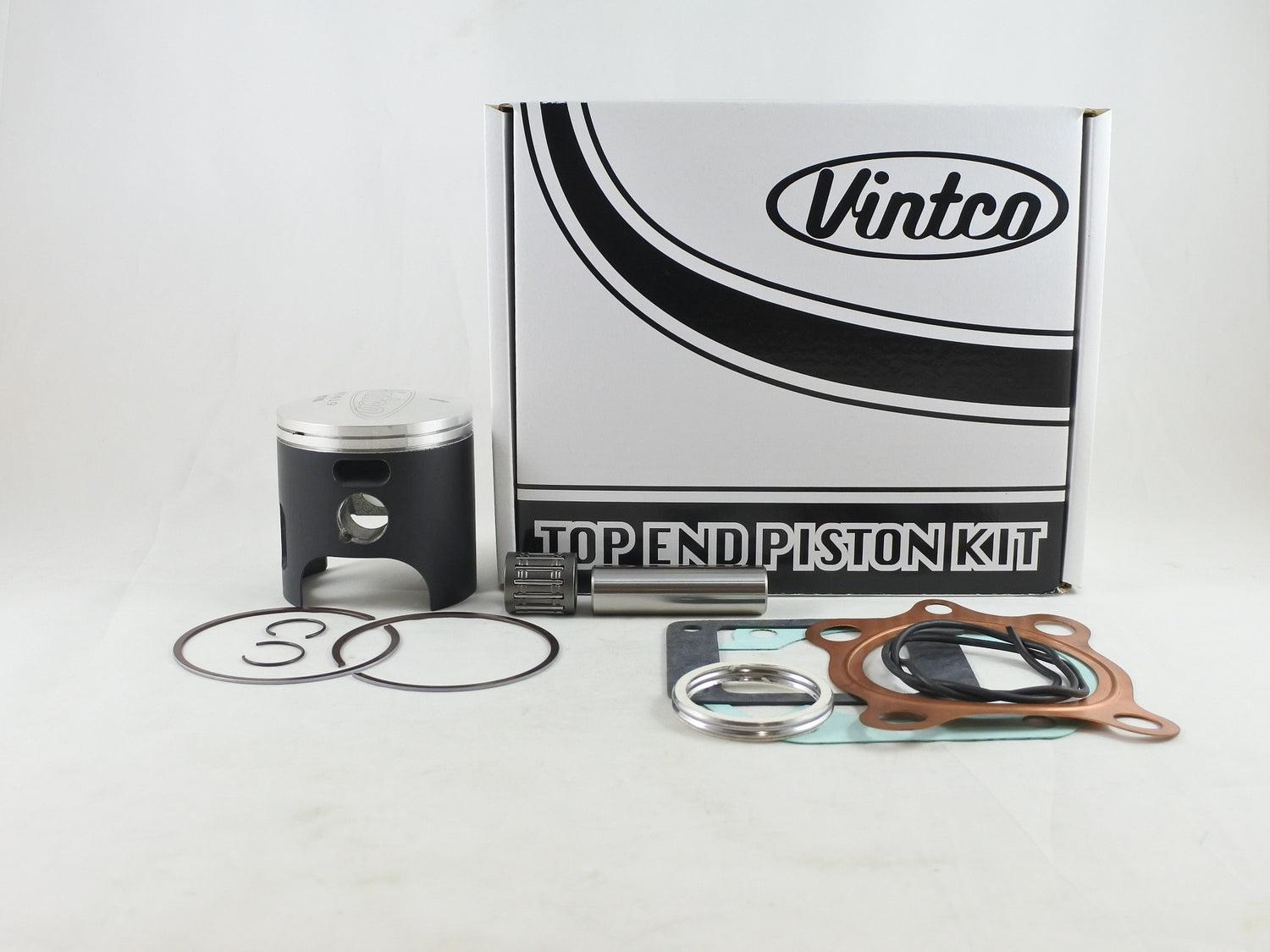

This VintCo top end piston kit is designed for the 1976 Yamaha YZ175 and includes a 67.5 mm piston in 1.5 mm oversize, together with the related top-end gaskets and wrist pin bearing required for service work. The kit includes a forged piston made in Germany with MOS2 coating for break-in, and the kit price includes a 10% discount compared with buying the individual items separately.

Features

• Complete top end piston kit
• Includes forged piston with MOS2 coating for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY68-1.5
• Bore size: 67.5 mm
• Oversize: 1.5 mm over
• Piston size: 67.44 mm
• Clearance: 0.06 mm
• Made in Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 1L8-11181-01-00
• Cylinder Base Gasket: 1L8-11351-01-00
• Intake Gasket: 3TT-13621-00-00
• Exhaust Pipe Gasket: 3PA-14613-10-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1976 Yamaha YZ175
