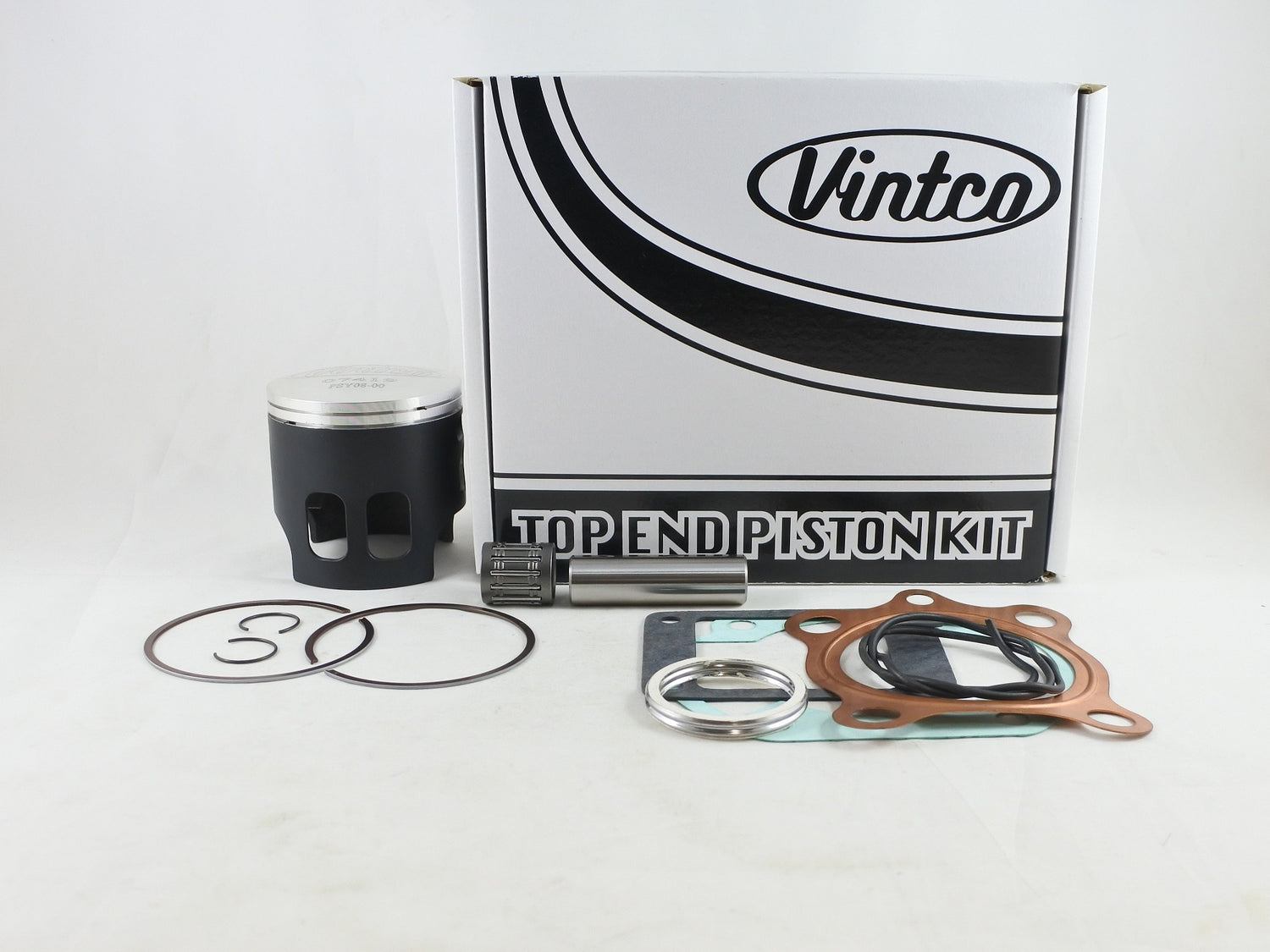

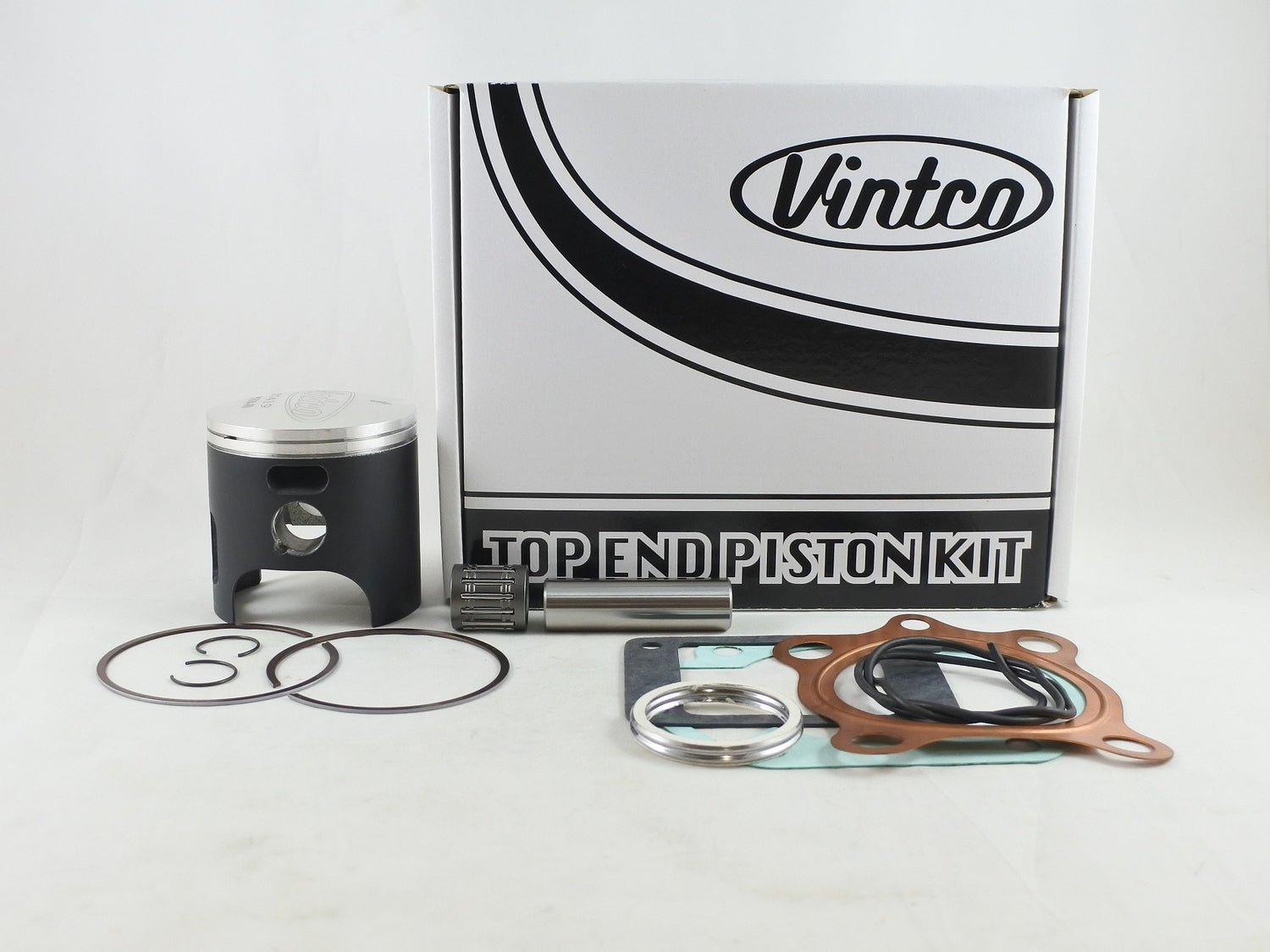

VintCo KTY68-00 is a standard-size top end piston kit for the 1976 Yamaha YZ175, supplied with the piston, wrist pin bearing, and the required gaskets for cylinder head, cylinder base, intake, and exhaust pipe service. The kit is supplied as a package with a 10% discount compared with purchasing the individual items separately.

Features

• Top end piston kit for engine top end service
• Includes piston, cylinder head gasket, cylinder base gasket, intake gasket, two exhaust pipe gaskets, and wrist pin bearing
• Kit price includes a 10% discount compared with individual items

Specifications

• VintCo Part Number: KTY68-00
• Standard size: 66 mm
• Piston diameter: 65.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 1L8-11181-01-00
• Cylinder Base Gasket: 1L8-11351-01-00
• Intake Gasket: 3TT-13621-00-00
• Exhaust Pipe Gasket: 3PA-14613-10-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1976 Yamaha YZ175
