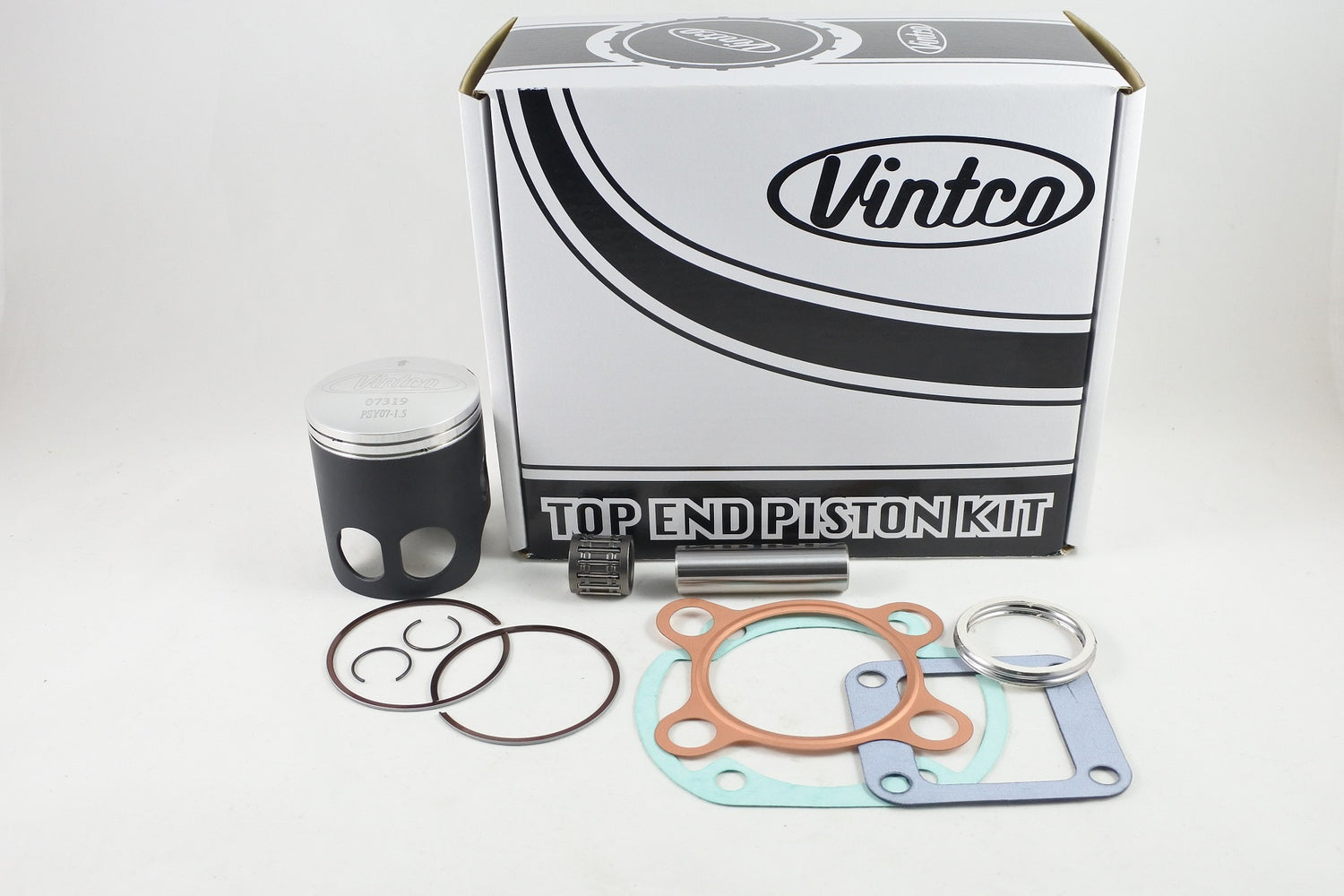

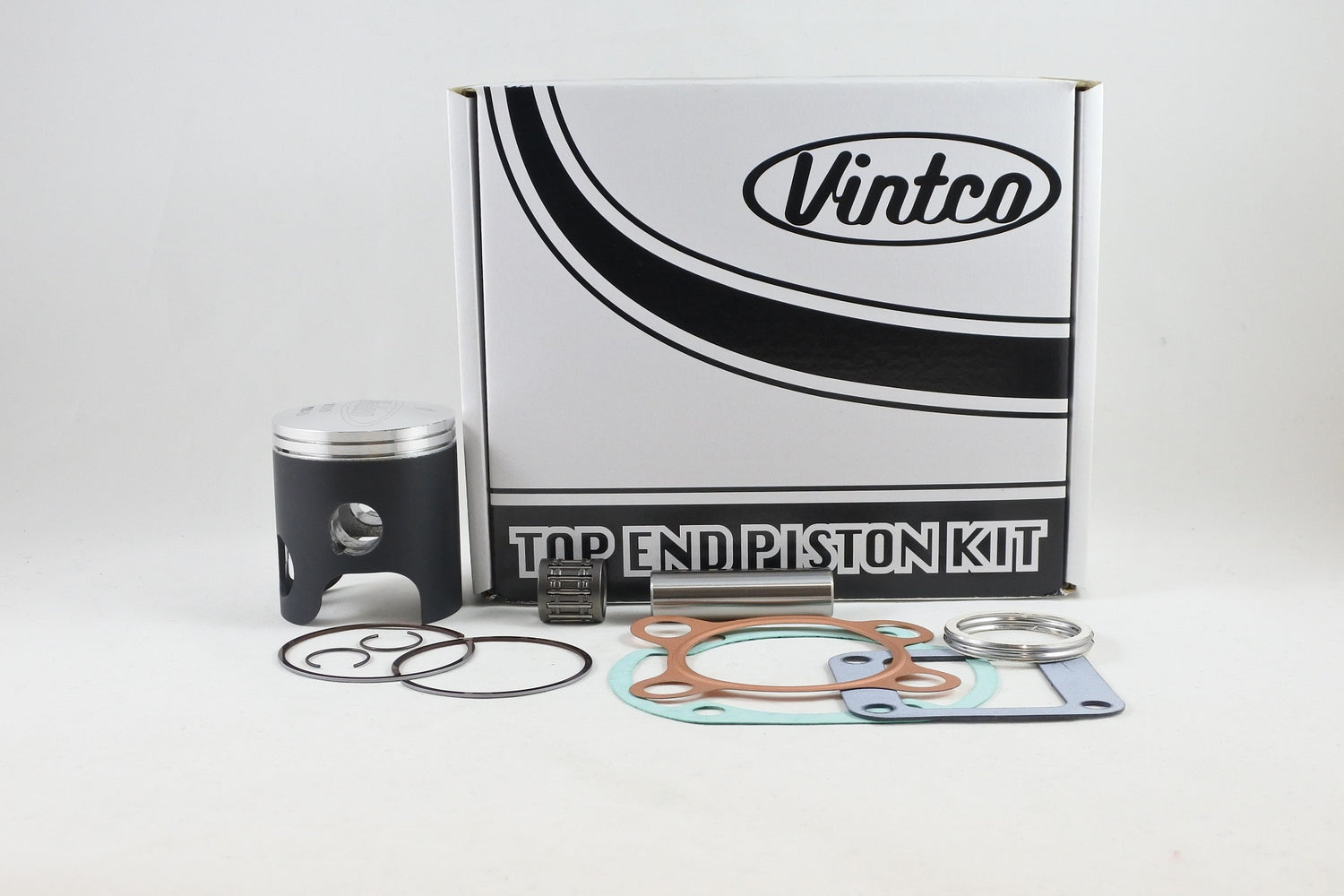

This top end piston kit is designed for the 1976 Yamaha DT125 and provides the main components required for a top-end rebuild in a 1.5 mm oversize configuration. The kit includes a forged piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

• Top end piston kit for engine top-end rebuilds
• Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
• MOS2-coated piston to assist during break-in

Specifications

• VintCo Part Number: KTY70-1.5
• Piston construction: Forged
• Country of manufacture: Germany
• Coating: MOS2
• Oversize: 1.5 mm
• Piston size: 57.5 mm
• Piston diameter: 57.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 248-11181-00-00
• Base gasket: 1WE-11351-00-00
• Reed valve gasket: 87A13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1976 Yamaha DT125
