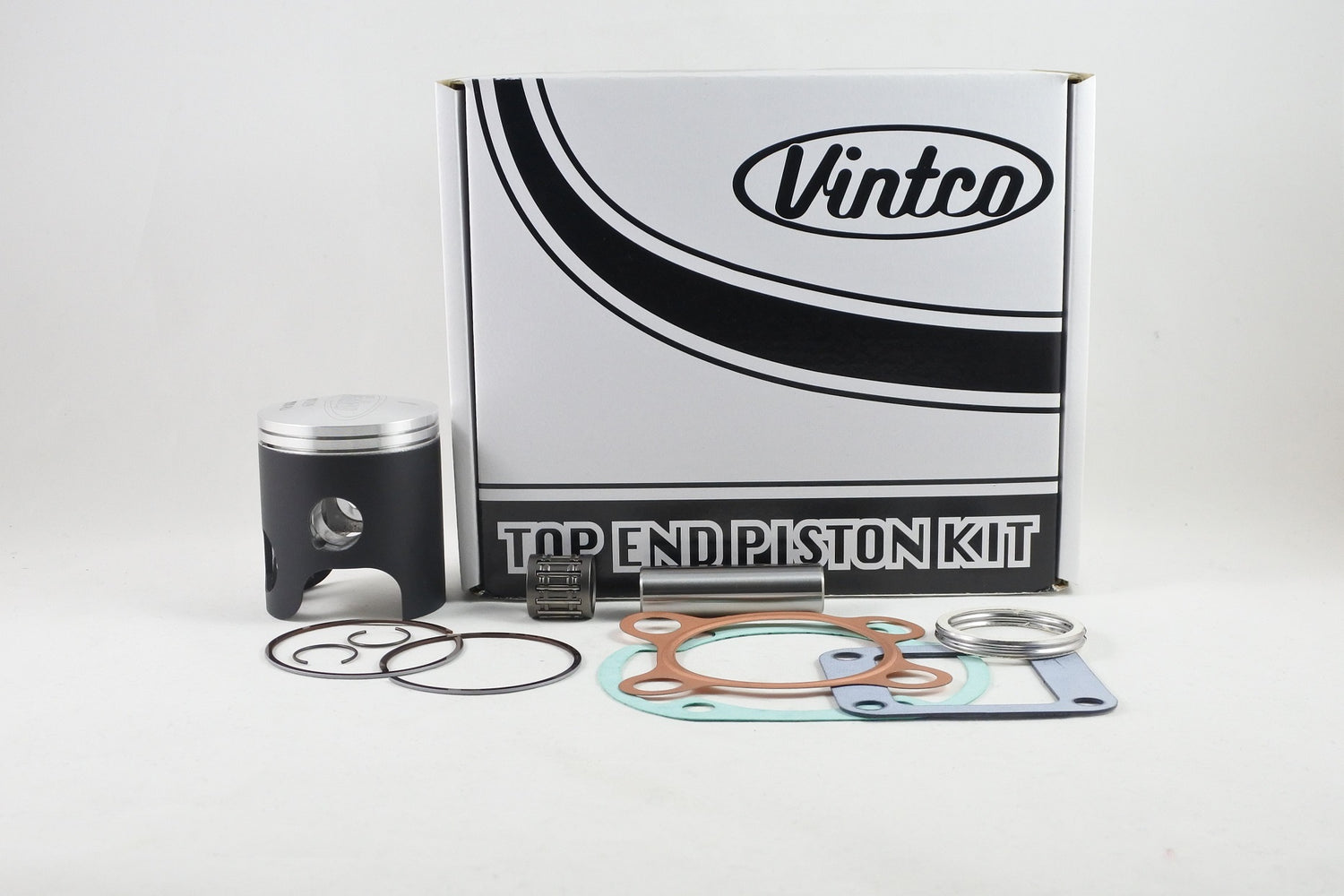

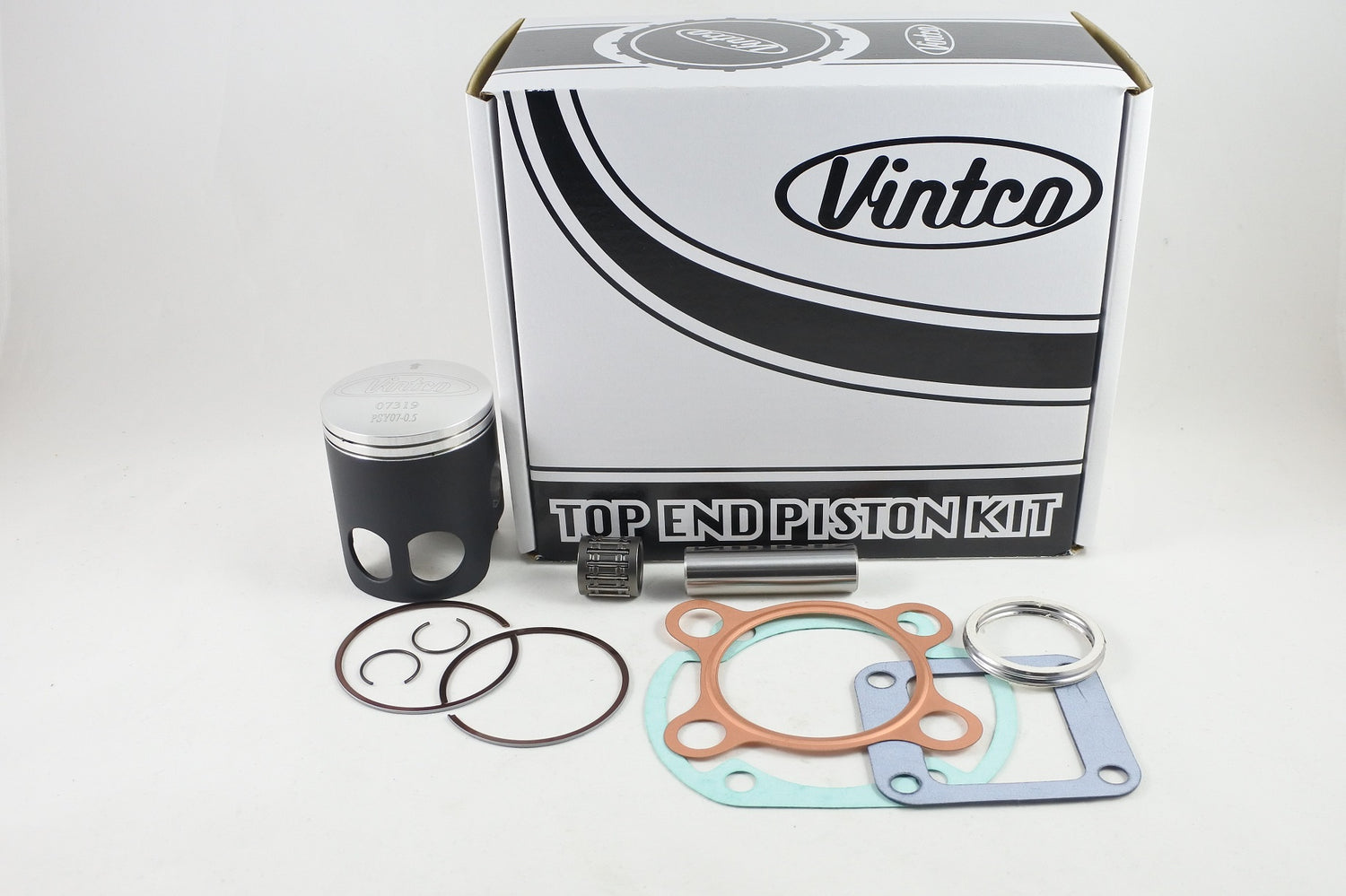

This top end piston kit is designed for the 1976 Yamaha DT125 and includes a forged piston made in Germany with an MOS2 coating for running-in, along with the required gaskets and a wrist pin bearing for top-end service.

Features

• Kit price includes a 10% discount compared with individual items
• Top end kit for Yamaha DT125
• Forged piston
• MOS2-coated piston for running-in
• Includes head gasket
• Includes base gasket
• Includes reed valve gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY70-0.5
• Size: 56.5 mm
• Oversize: +0.5 mm
• Piston size: 56.44 mm
• Clearance: 0.06 mm
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 248-11181-00-00
• Base gasket: 1WE-11351-00-00
• Reed valve gasket: 87A13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1976 Yamaha DT125
