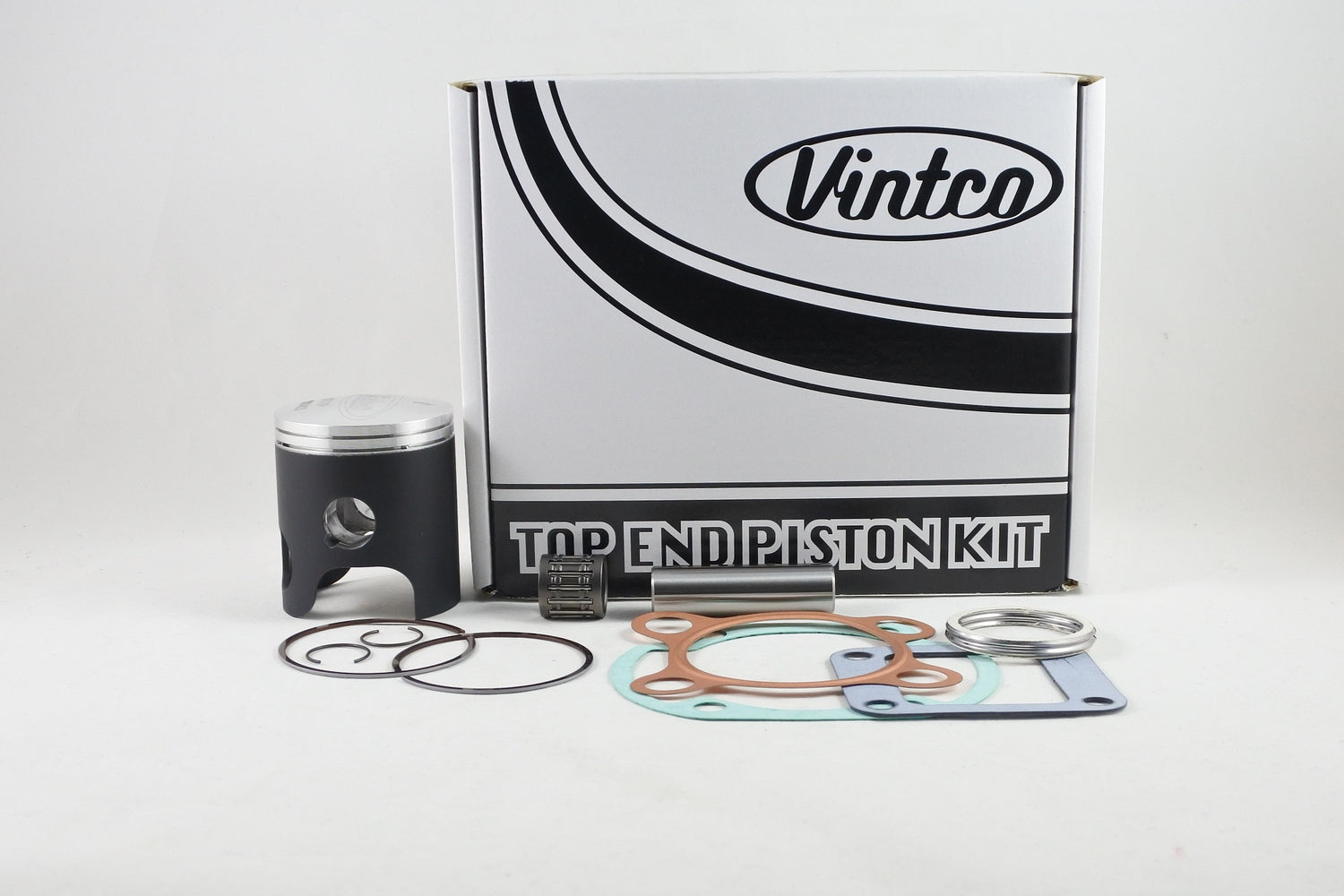

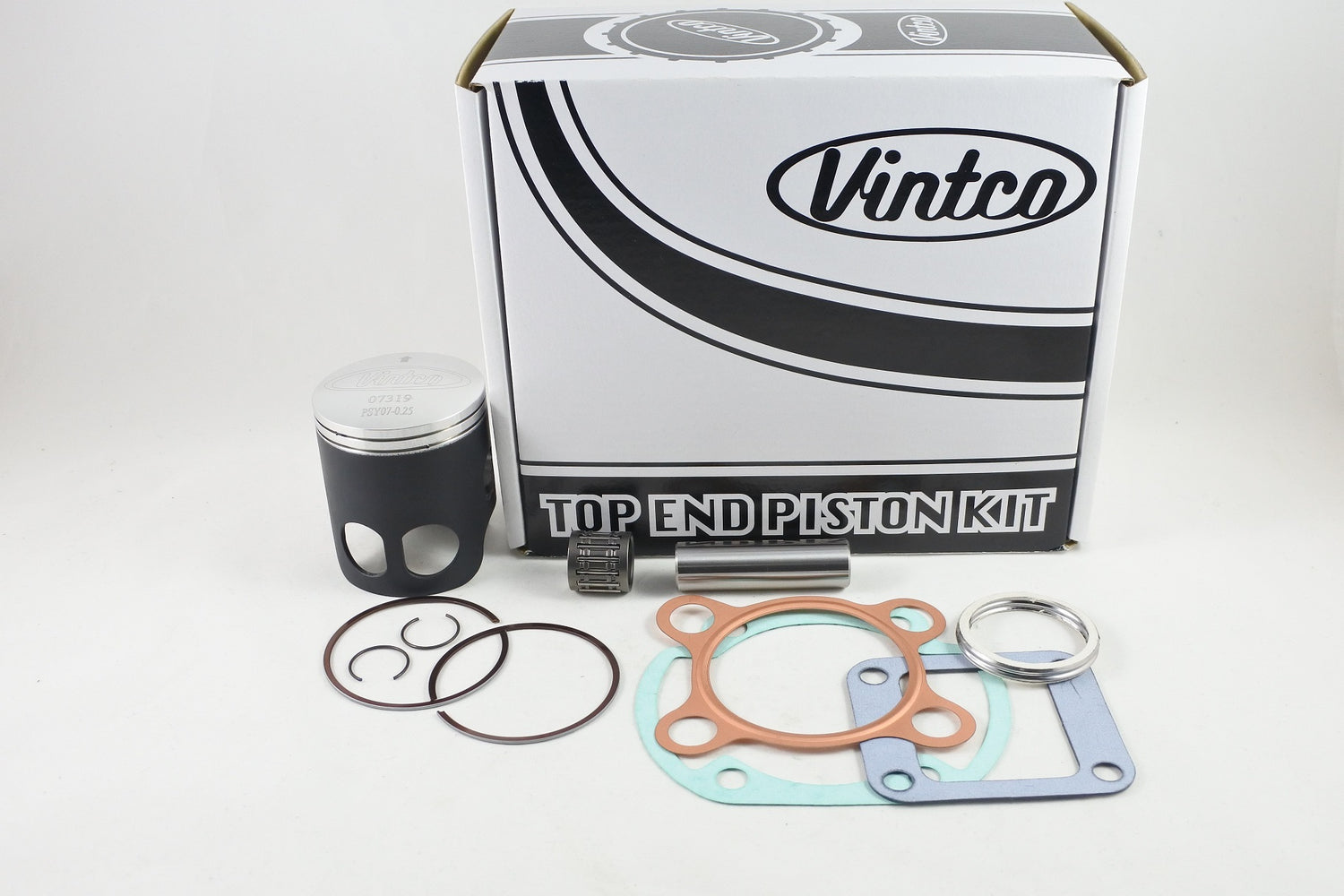

Top end piston kit for the 1976 Yamaha DT125, supplied as a complete package priced at 10% less than the individual items. The kit includes a piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing for top-end service work.

Features

• Complete top end piston kit for top-end service work
• Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
• MOS2-coated piston surface for running-in

Specifications

• VintCo Part Number: KTY70-0.25
• Piston type: Forged
• Country of manufacture: Germany
• Oversize: 0.25 mm
• Piston size: 56.25 mm
• Listed size: 56.19 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 248-11181-00-00
• Base gasket: 1WE-11351-00-00
• Reed valve gasket: 87A13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1976 Yamaha DT125
