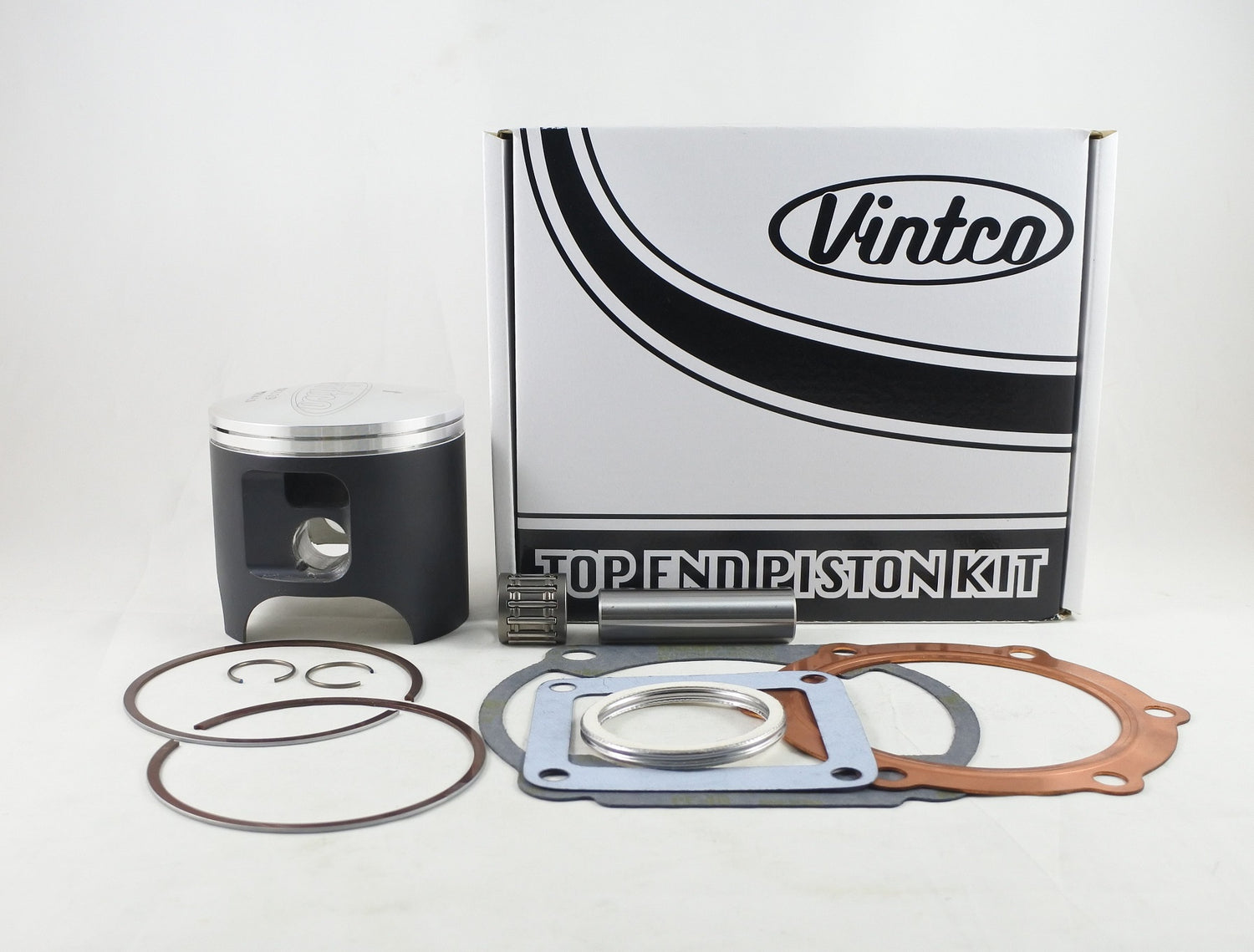

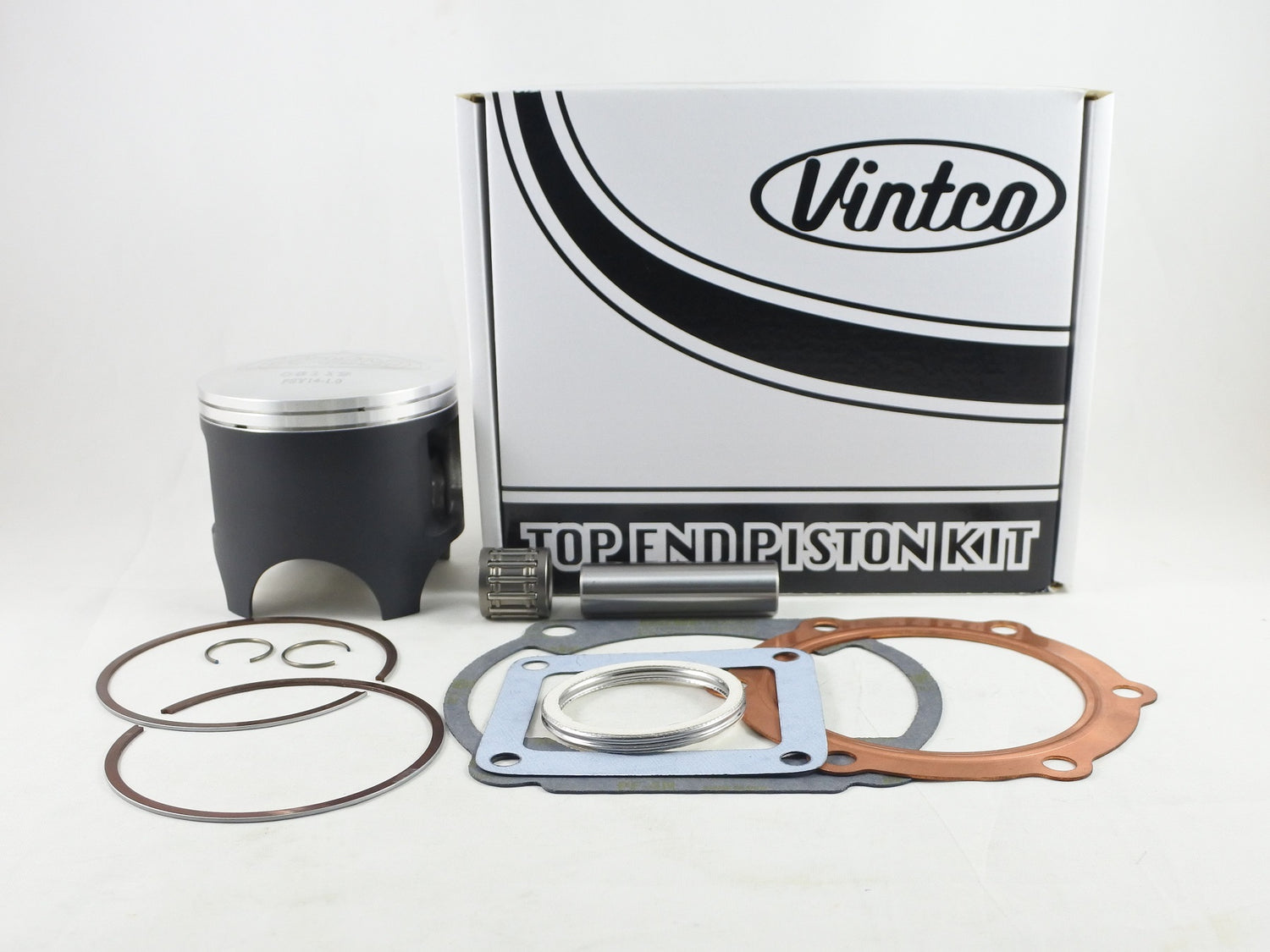

VintCo top end piston kit for 1975-1976 Yamaha DT400 models, supplied as a matched rebuild set with a forged piston made in Germany, MOS2-coated for running-in, together with a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing. This kit is specified at 86 mm and 1.0 mm oversize.

Features

• Complete top end piston kit for Yamaha DT400 models
• Includes forged piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• MOS2-coated piston for running-in
• Kit price includes a 10% discount compared with the individual items

Specifications

• VintCo Part Number: KTY48-1.0
• Piston size: 86 mm
• Oversize: 1.0 mm
• Piston measurement: 85.92 mm
• Clearance: 0.08 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 500-11181-00-00
• Cylinder Base Gasket: 500-11351-09-00
• Intake Gasket: 363-13621-01-00
• Exhaust Pipe Gasket: 214-14613-09-00

Vehicle Fitments

• 1975 Yamaha DT400
• 1976 Yamaha DT400
