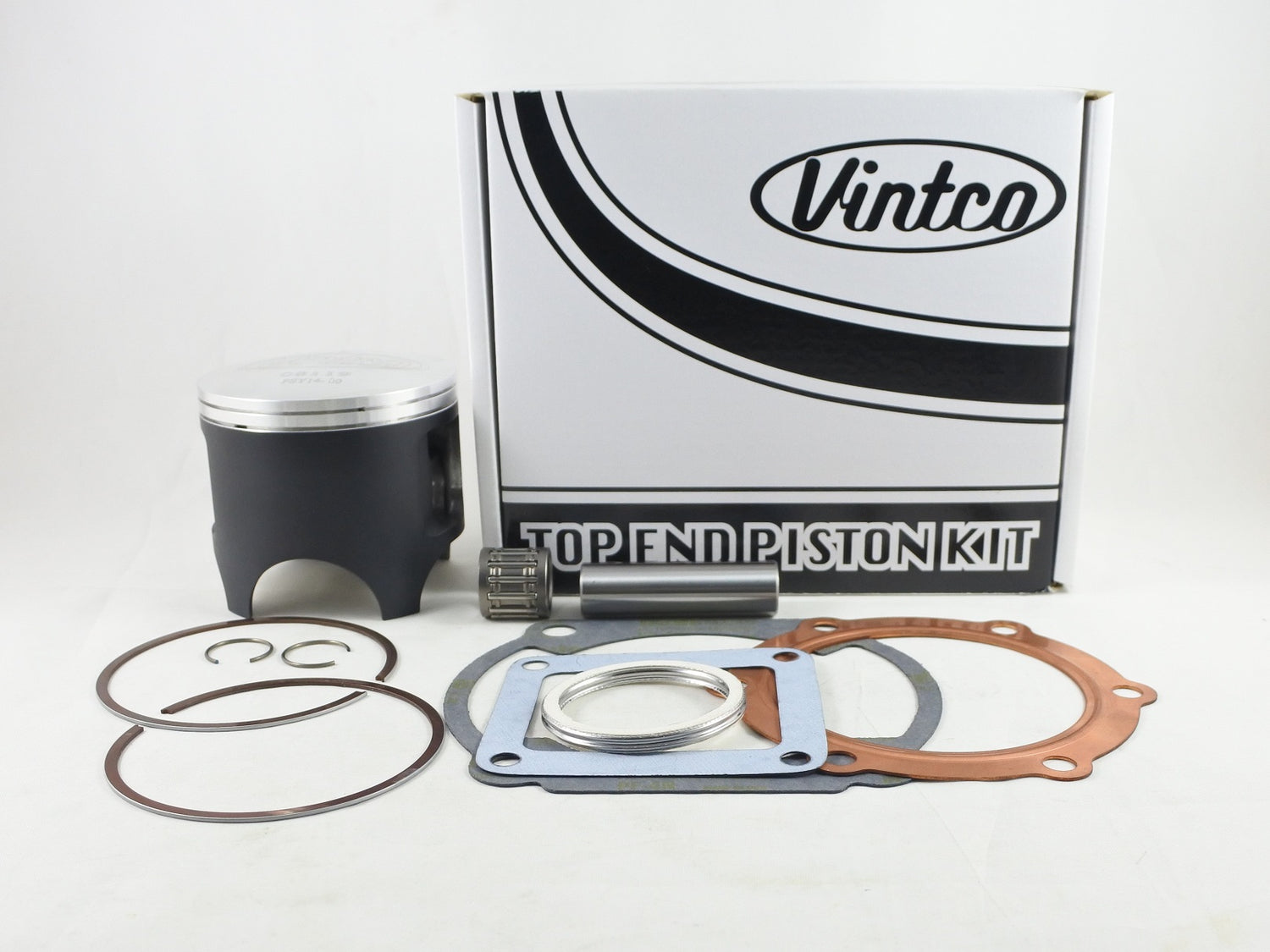

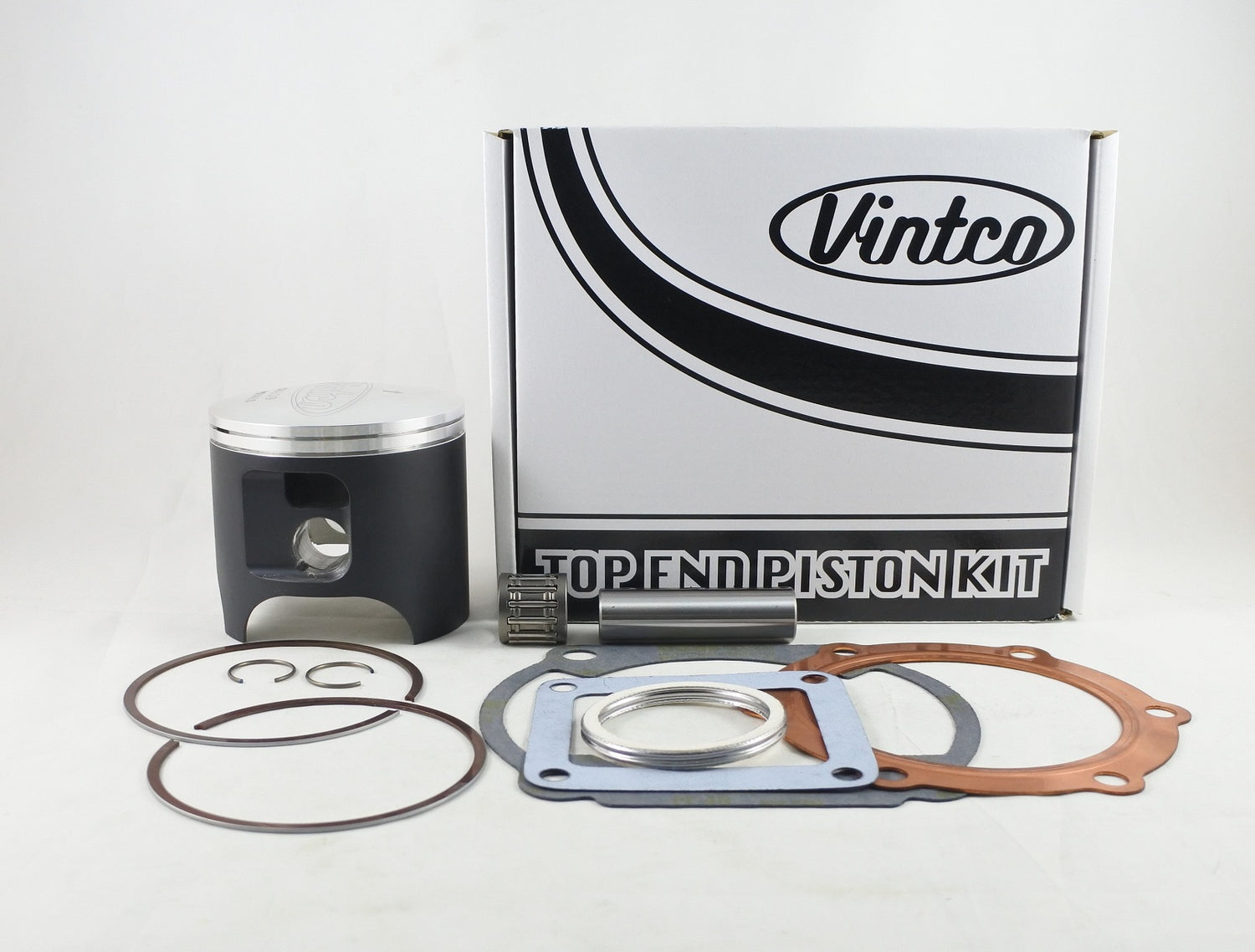

This VintCo top end piston kit is for 1975-1976 Yamaha DT400 models and is supplied in standard 85 mm size for top end rebuilding. The kit includes a forged piston with MOS2 break-in coating, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, and a wrist pin bearing. Kit pricing reflects a 10% saving compared with purchasing the included items individually.

Features

• Complete top end piston kit for Yamaha DT400 models
• Includes forged piston
• MOS2-coated piston for break-in
• Made in Germany
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY48-00
• Standard size: 85 mm
• Piston diameter: 84.92 mm
• Clearance: 0.08 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 500-11181-00-00
• Cylinder base gasket: 500-11351-09-00
• Intake gasket: 363-13621-01-00
• Exhaust pipe gasket: 214-14613-09-00

Vehicle Fitments

• 1975 Yamaha DT400
• 1976 Yamaha DT400
