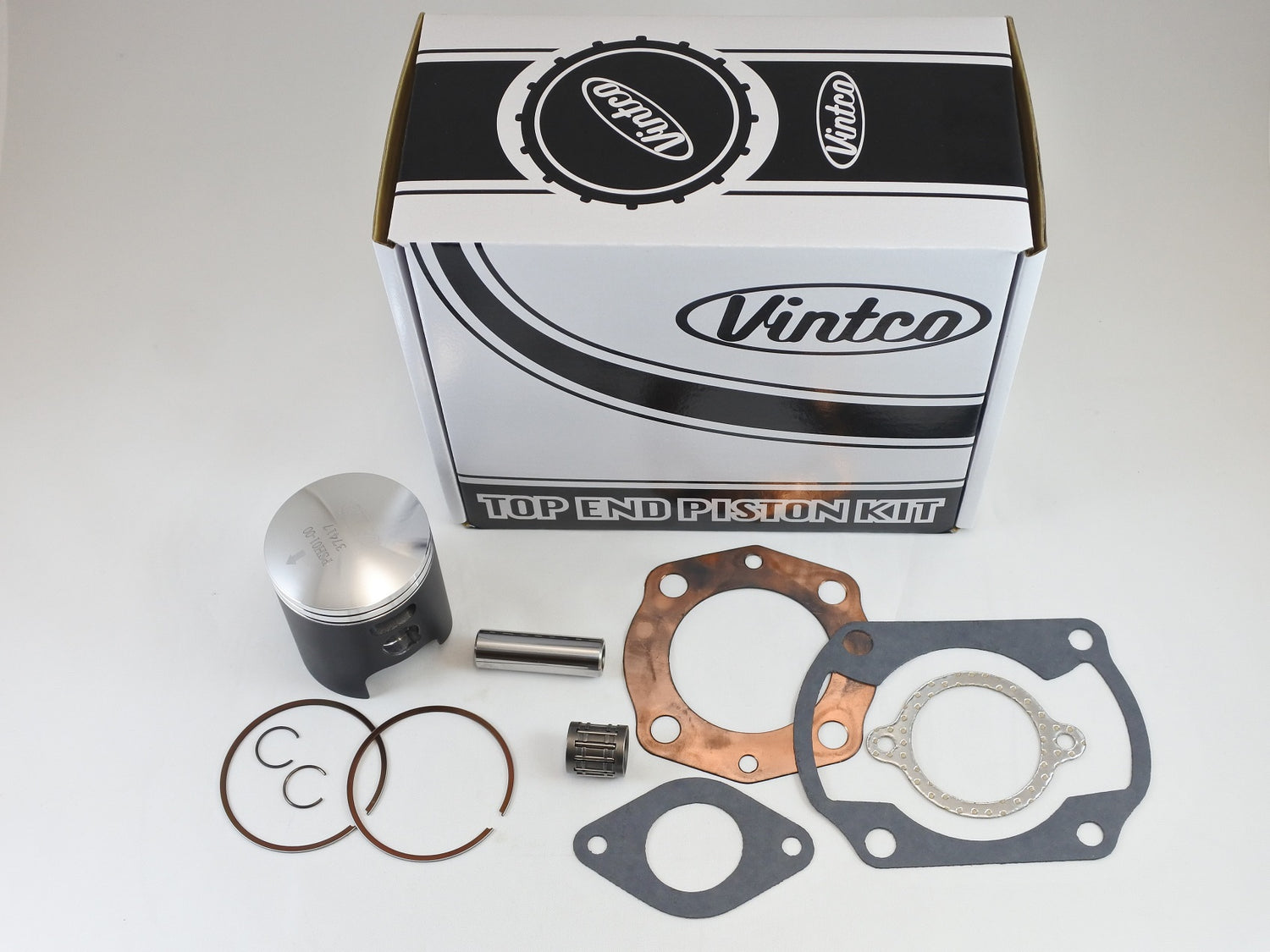

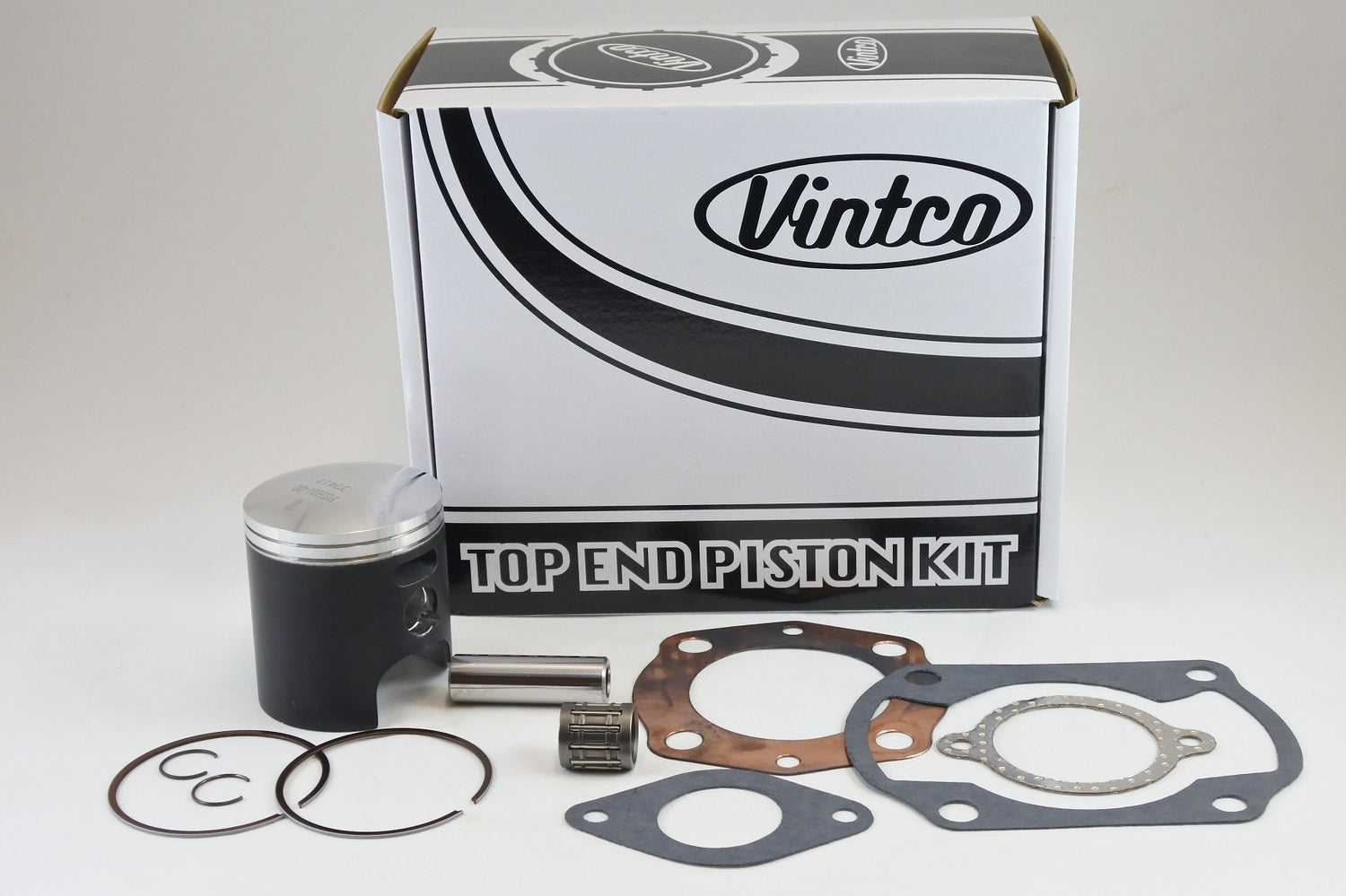

VintCo top end piston kit KTH01-00 is a complete rebuild kit for 1974-1975 Honda CR125 and 1977-1978 Honda MT125R models with a standard 56.0 mm bore. The kit includes a forged piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production methods for correct OEM-referenced fit.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Suitable for standard-bore top-end rebuilds
• Kit price includes a 10% saving compared with purchasing the items individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH01-00
• Bore size: 56.0 mm standard
• Piston diameter: 55.94 mm
• Piston clearance: 0.06 mm
• Forged piston
• Piston made in Germany
• MoS2-coated piston

Cross-Reference OEM Part Numbers

• Piston: 13101-360-700
• Head gasket: 12251-360-000
• Base gasket: 12191-373-306
• Intake gasket: 16212-360-306
• Exhaust gasket: 18359-360-000
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1974 Honda CR125
• 1975 Honda CR125
• 1977 Honda MT125R
• 1978 Honda MT125R
