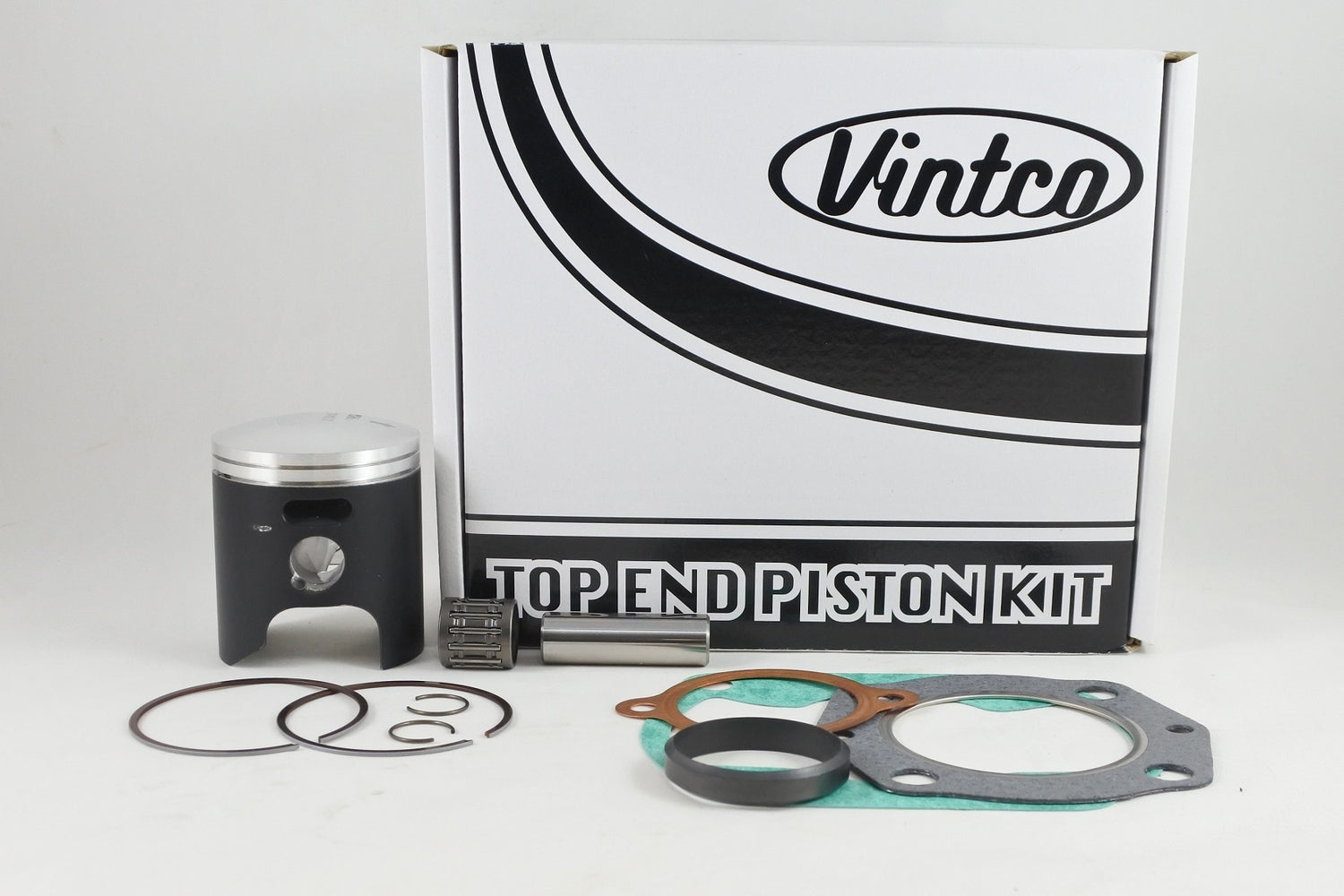

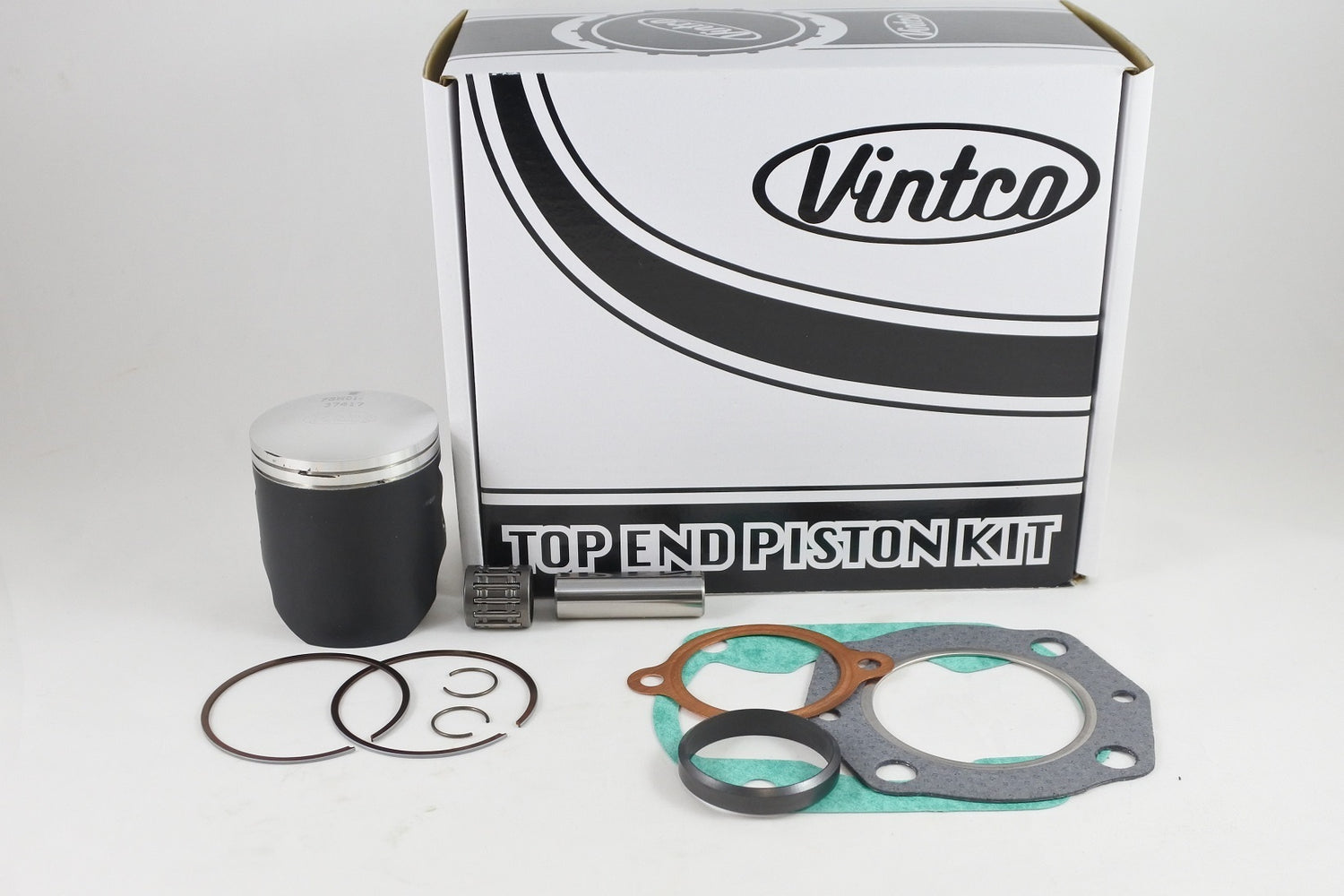

This top end piston kit is for 1974–1976 Honda MT125 models and includes a +0.5 mm oversize piston, head gasket, base gasket, exhaust gasket and wrist pin bearing for top end service work. The kit price includes a 10% saving compared with the individual items. The piston is forged, made in Germany and finished with an MOS2 coating for initial running-in.

Features

• Complete top end piston kit for MT125 engine service
• Includes piston, head gasket, base gasket, exhaust gasket and wrist pin bearing
• Suitable for +0.5 mm oversize piston replacement

Specifications

• VintCo Part Number: KTH11-0.5
• Piston size: +0.5 mm
• Piston diameter: 56.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-361-405
• Base gasket: 12191-373-306
• Exhaust gasket: 18359-360-000
• Exhaust gasket: 18352-361-000
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1974 Honda MT125
• 1975 Honda MT125
• 1976 Honda MT125
