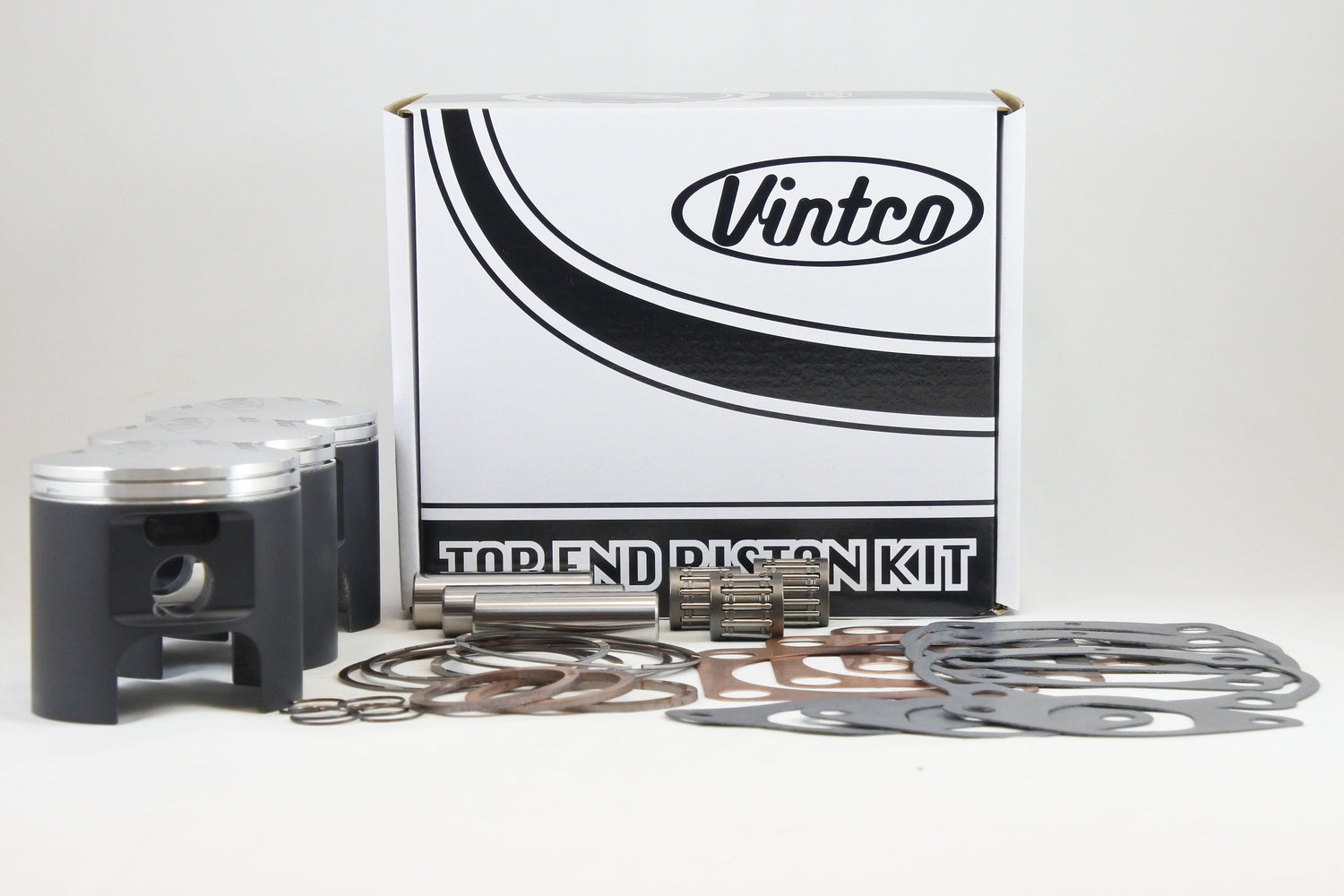

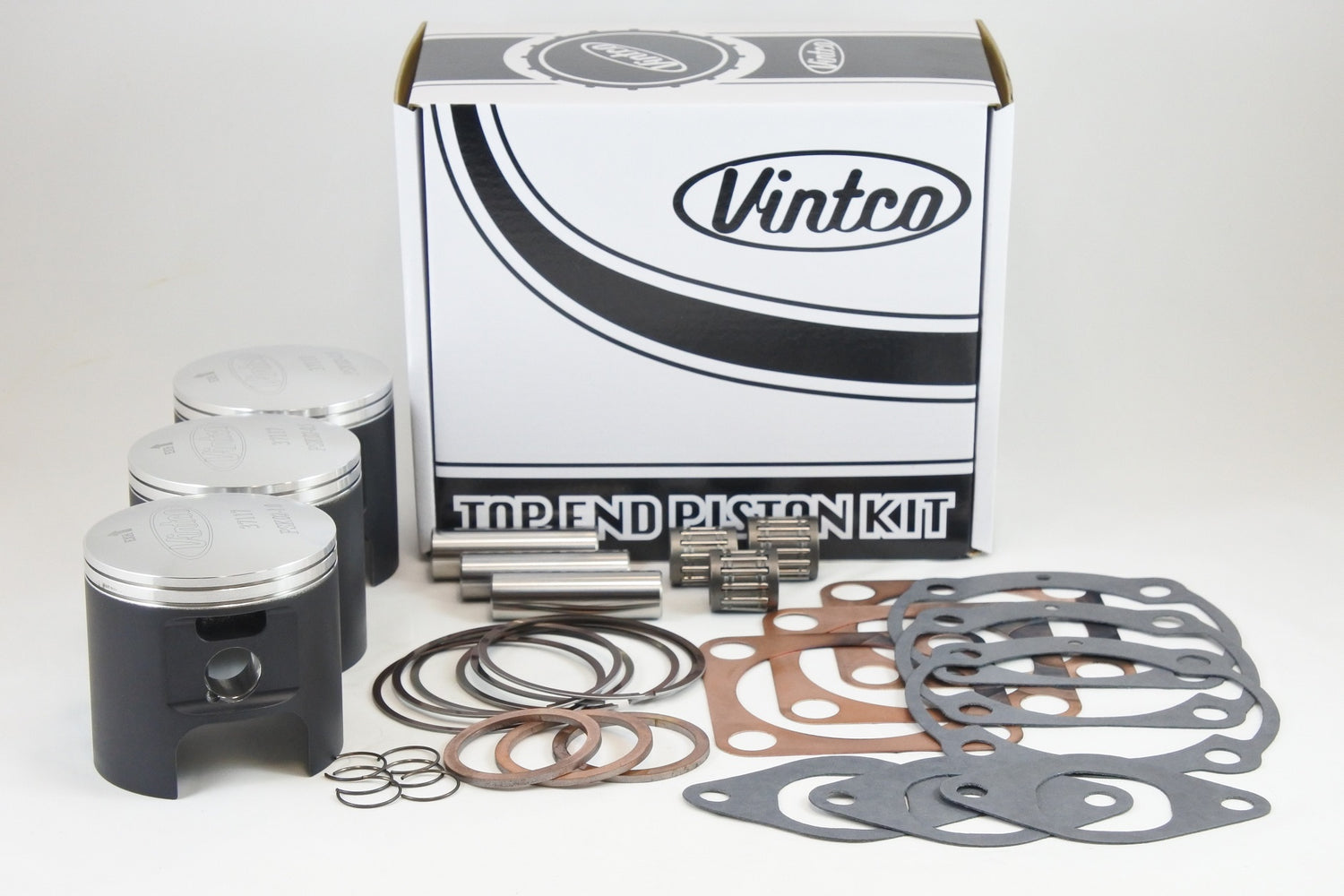

This VintCo top end piston kit is a complete rebuild set for 1972-1975 Kawasaki H2-750 models, supplied in 72.0 mm, +1.0 mm oversize form. It includes three piston kits with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set with head, base, intake and exhaust gaskets for the entire top end. The components are produced using modern materials and manufacturing techniques for OEM-equivalent fit and performance, and the kit price is 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes piston assemblies, wrist pin bearings and a full top-end gasket set
• Suitable for full top-end rebuild work
• MoS2-coated pistons for running-in
• Designed for OEM-equivalent fit and performance
• Additional size options available

Specifications

• VintCo Part Number: KTK03-1.0
• Piston type: Forged
• Manufactured in: Germany
• Nominal size: 72.0 mm
• Oversize: +1.0 mm
• Piston measurement listed: 71.93 mm
• Clearance: 0.07 mm

Cross-Reference OEM Part Numbers

• Piston: 13027-049
• Head gasket: 11004-049
• Base gasket: 11009-028
• Intake gasket: 16062-016
• Exhaust gasket: 18067-008
• Wrist pin bearing: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
