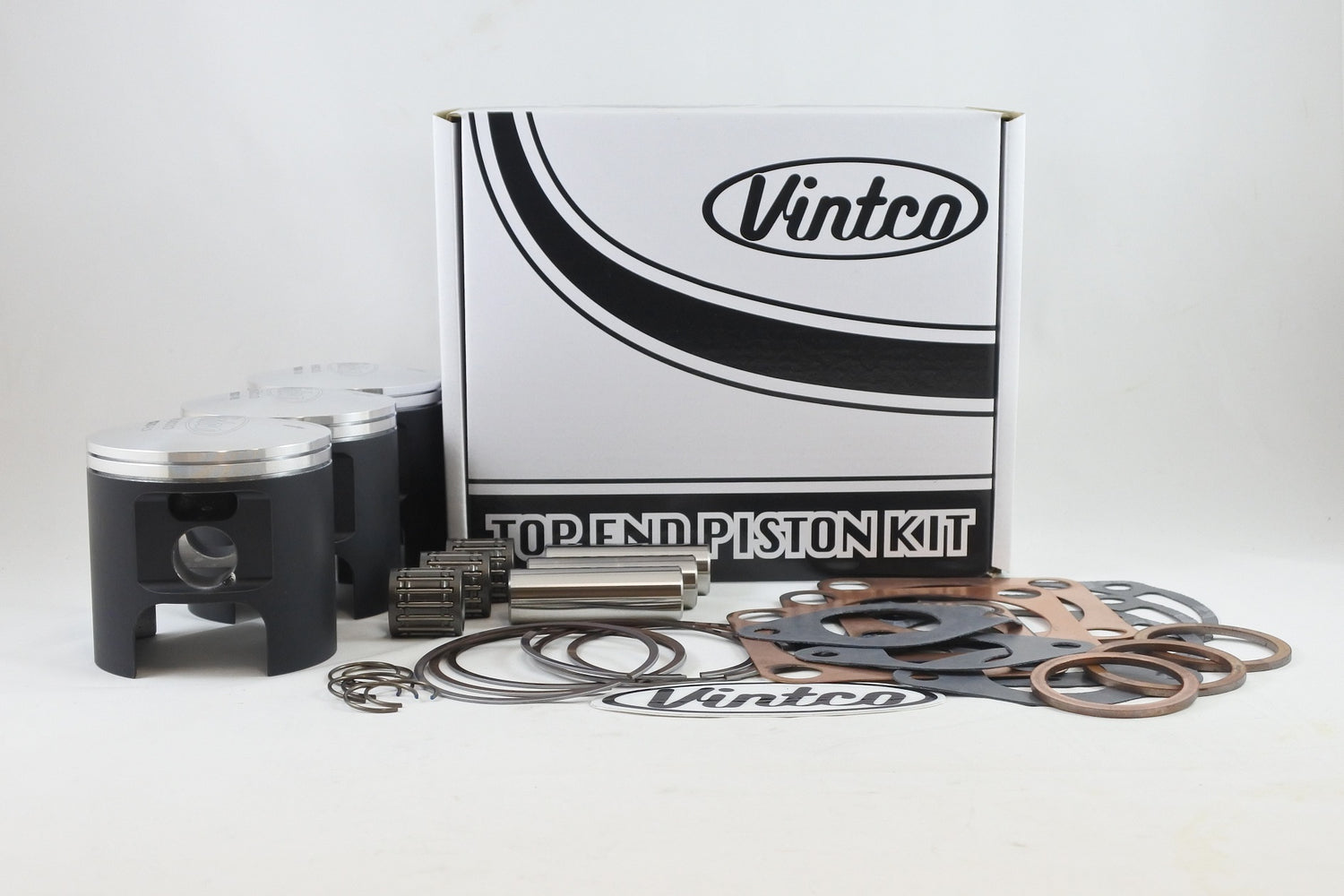

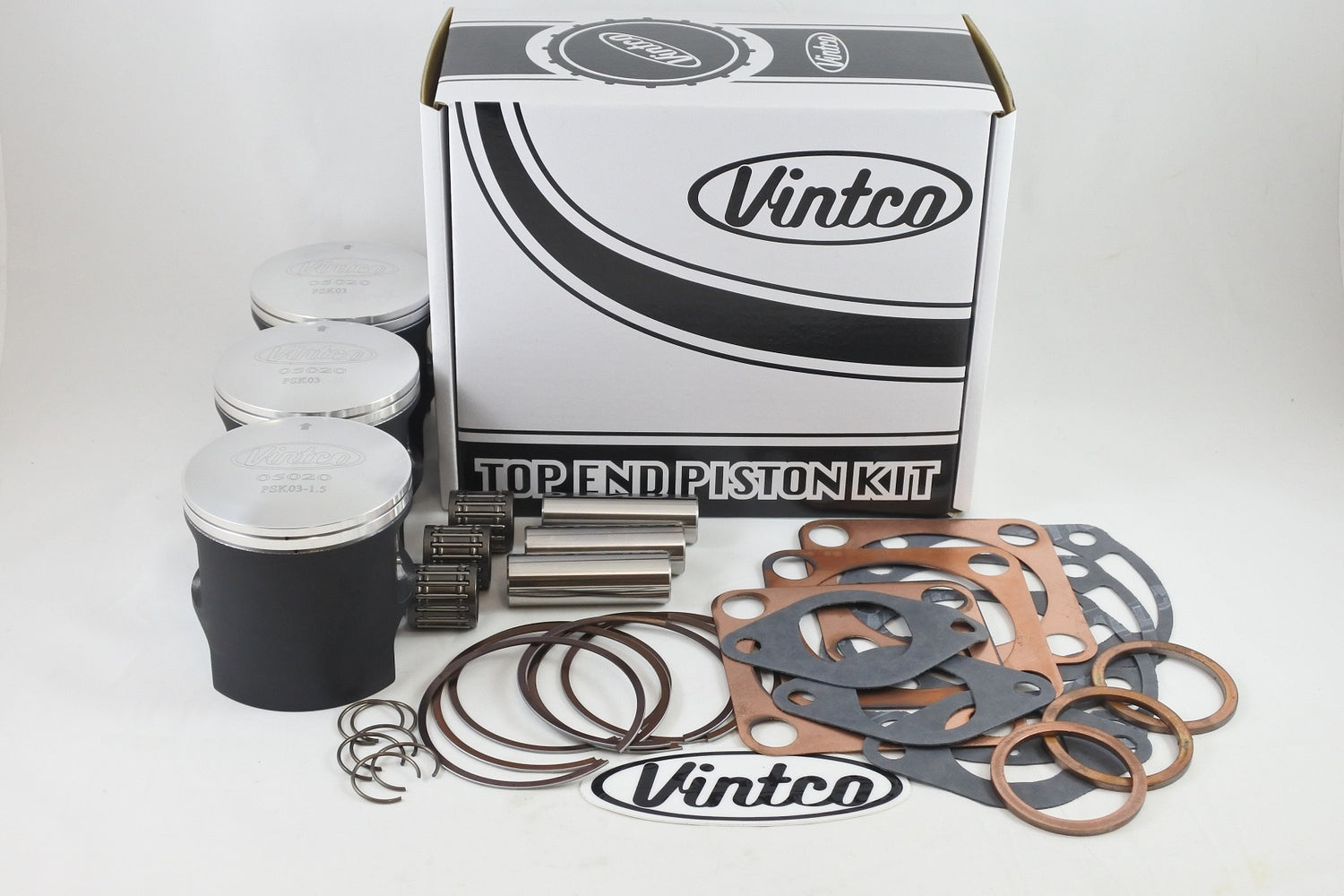

VintCo KTK09-1.5 is a top end piston kit for 1972-1975 Kawasaki H2-750 models with an 18 mm wrist pin bore and 72.5 mm bore size, 1.5 mm oversize. The kit is intended for top end rebuilds and includes three high performance/race piston assemblies with rings, pins and clips, three wrist pin bearings, and a complete top-end gasket set covering the head, base, intake and exhaust. Components are manufactured using modern materials and processes for OEM-equivalent or better fit and performance. This kit is for use only with VintCo Heavy Duty High Performance Crankshaft CR2010, and the kit price is 10% lower than purchasing the components individually. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes three piston assemblies with rings, pins and clips
• Includes top end bearings
• Includes a full top-end gasket set
• Covers head, base, intake and exhaust sealing points
• High performance/race piston configuration
• MoS2-coated pistons for running-in
• For use only with VintCo Heavy Duty High Performance Crankshaft CR2010
• OEM cross-reference part numbers provided for fitment verification
• Additional size options available
• Kit price is 10% lower than purchasing the components individually

Specifications

• VintCo Part Number: KTK09-1.5
• Product type: Top End Piston Kit
• Wrist pin bore: 18 mm
• Nominal bore size: 72.5 mm
• Oversize: 1.5 mm over
• Piston quantity: 3
• Piston size: 72.43 mm
• Piston clearance: 0.07 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany
• Head gaskets included: 3
• Base gaskets included: 3
• Intake gaskets included: 3
• Exhaust gaskets included: 3
• Wrist pin bearings included: 3

Cross-Reference OEM Part Numbers

• Head gasket: 11004-049
• Base gasket: 11009-028
• Intake gasket: 16062-016
• Exhaust gasket: 18067-008
• Wrist pin bearing: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
