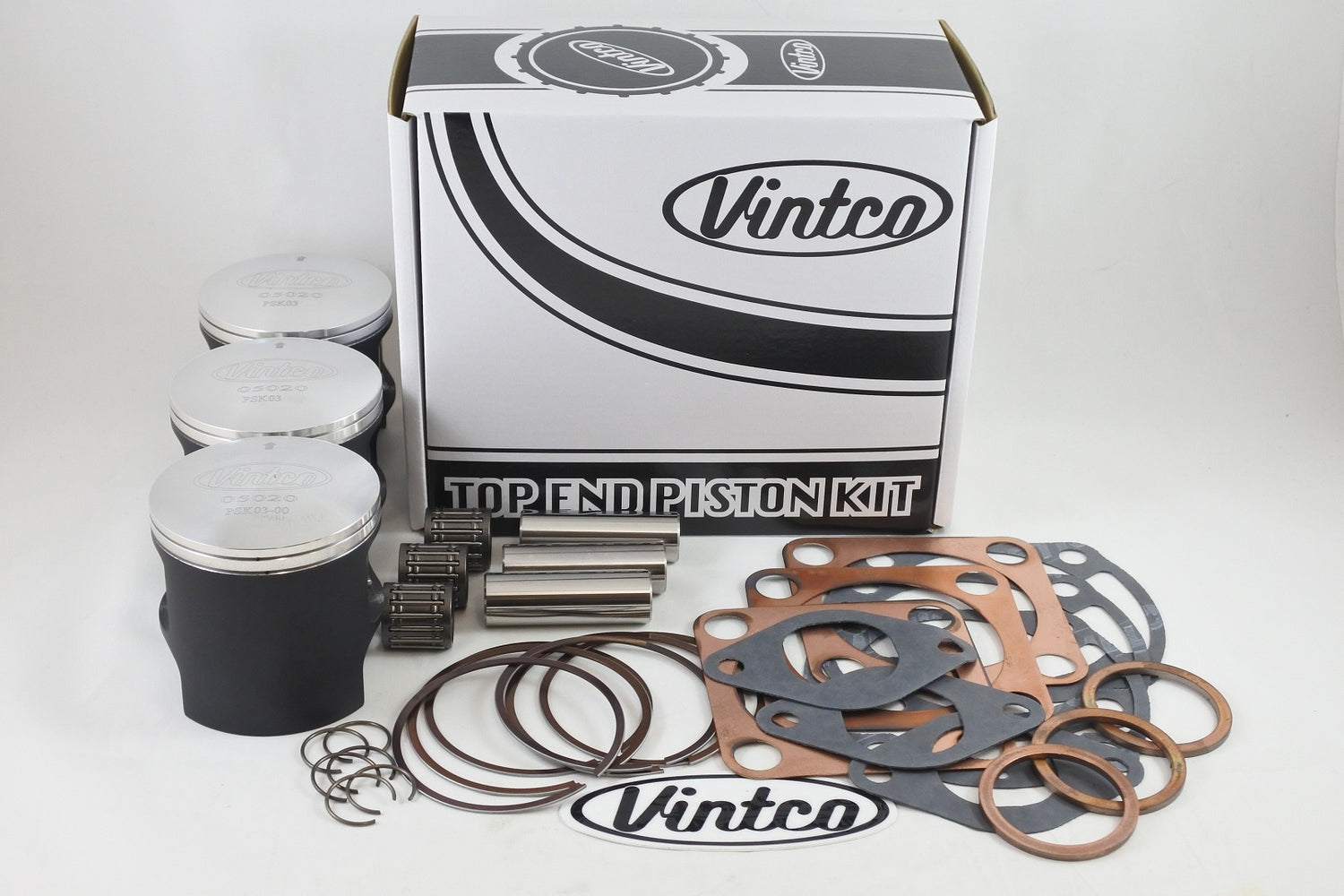

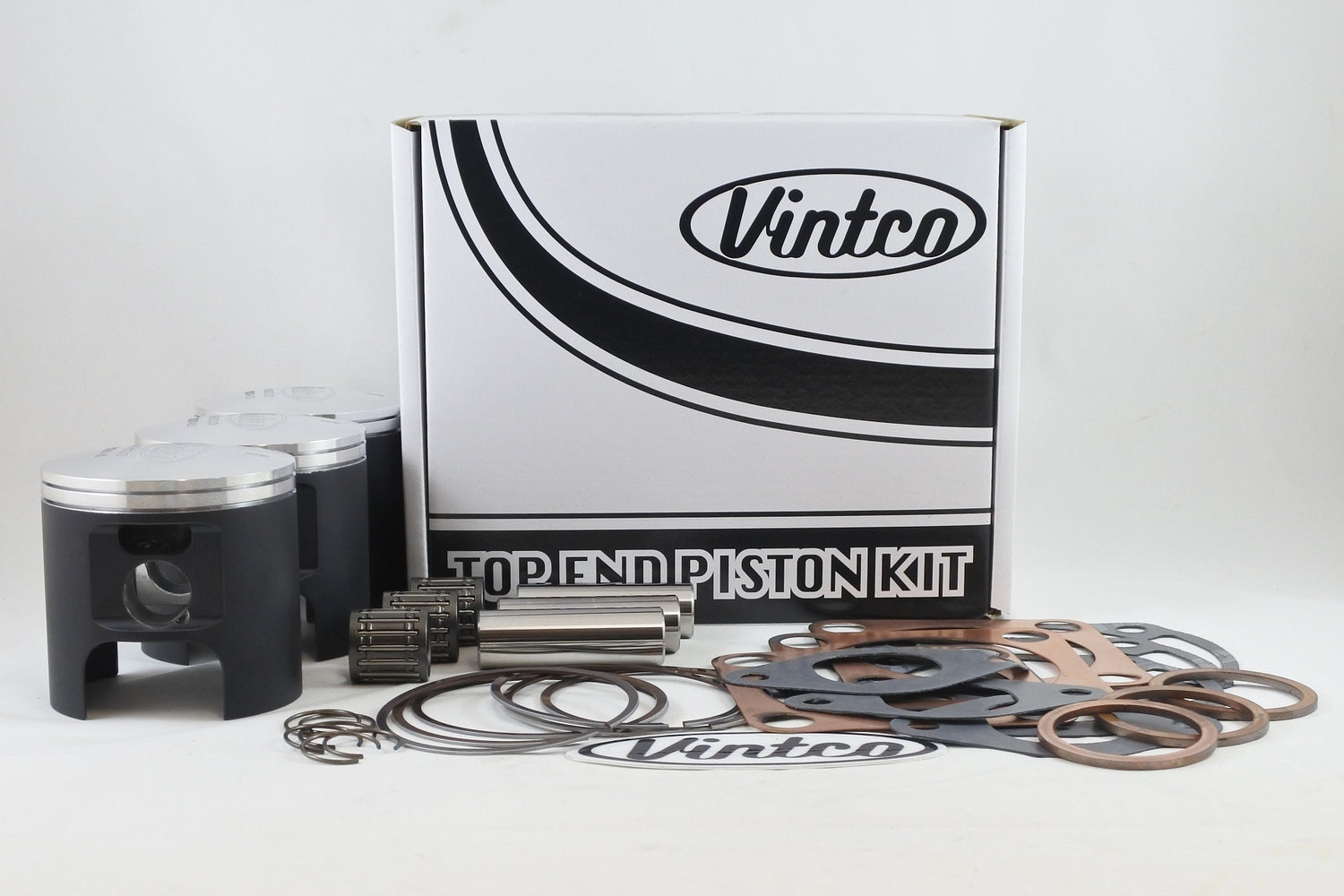

VintCo KTK09-00 is a top end piston kit for 1972-1975 Kawasaki H2-750 models with a standard 71.0 mm bore and 18 mm wrist pin bore. It is intended for top end rebuilds and includes three VintCo High Performance/Race piston kits with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set covering the head, base, intake and exhaust. The components are produced using modern materials and manufacturing methods for OEM-equivalent fit and performance. The kit price is 10% lower than purchasing the included parts separately, and additional size options are available.

Features

• Complete top end rebuild kit for Kawasaki H2-750 models
• Includes three piston assemblies with rings, pins and clips
• Includes top end bearings and a full top-end gasket set
• Covers head, base, intake and exhaust sealing points for the entire top end
• For use only with VintCo Heavy Duty High Performance Crankshaft CR2010
• Manufactured for OEM-equivalent fit and performance
• Kit price includes a 10% saving compared with individual component purchase
• Additional size options are available

Specifications

• VintCo Part Number: KTK09-00
• Product Type: Top End Piston Kit
• Bore Size: 71.0 mm standard
• Wrist Pin Bore: 18 mm
• Piston Diameter: 70.93 mm
• Piston Clearance: 0.07 mm
• Piston Construction: Forged
• Piston Coating: MoS2 coating
• Country of Manufacture: Germany
• Included Components: 3 pistons, 3 sets of rings, 3 pins, 3 sets of clips, 3 head gaskets, 3 base gaskets, 3 intake gaskets, 3 exhaust gaskets, 3 wrist pin bearings

Cross-Reference OEM Part Numbers

• Head Gasket: 11004-049
• Base Gasket: 11009-028
• Intake Gasket: 16062-016
• Exhaust Gasket: 18067-008
• Wrist Pin Bearing: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
