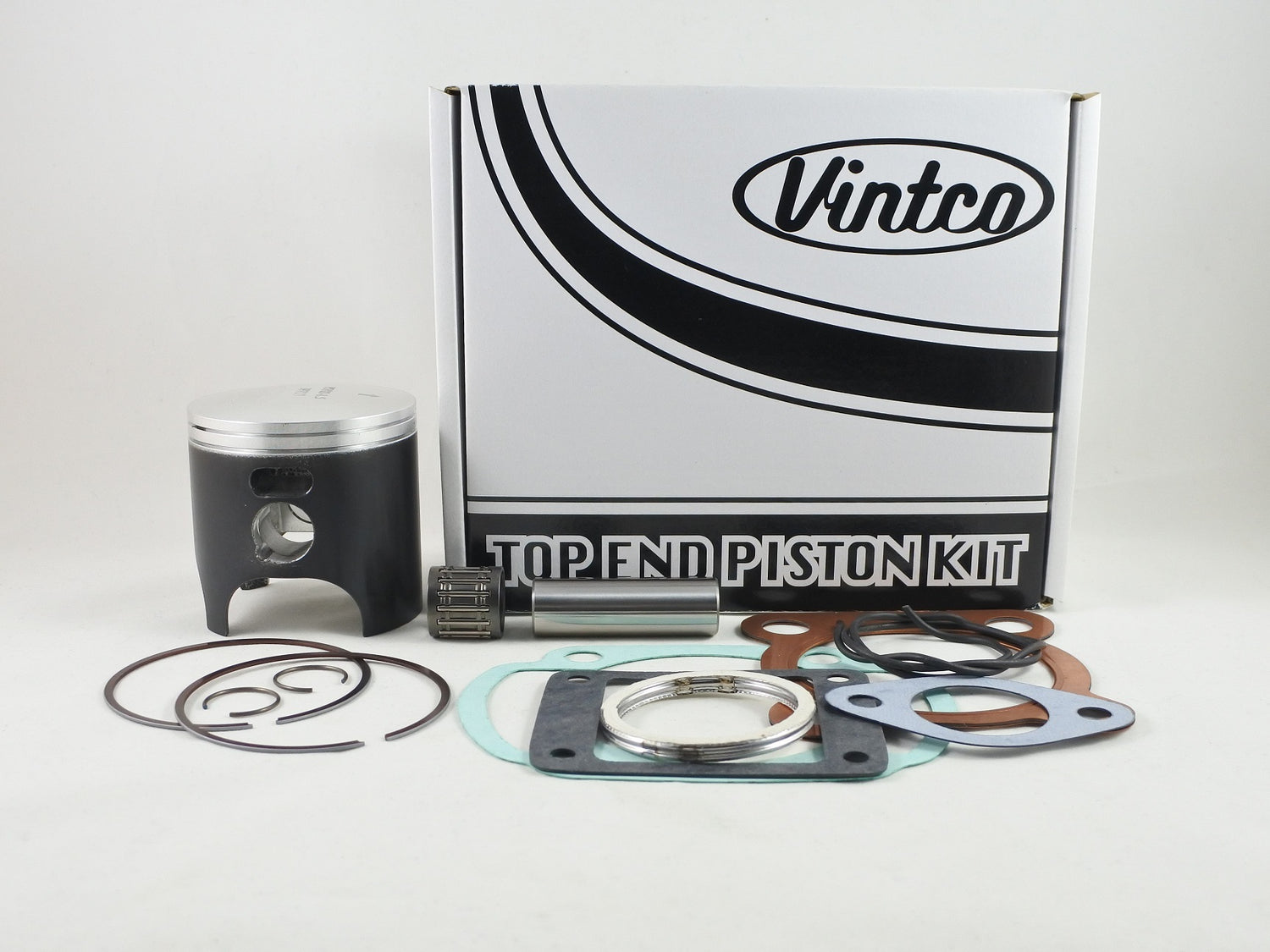

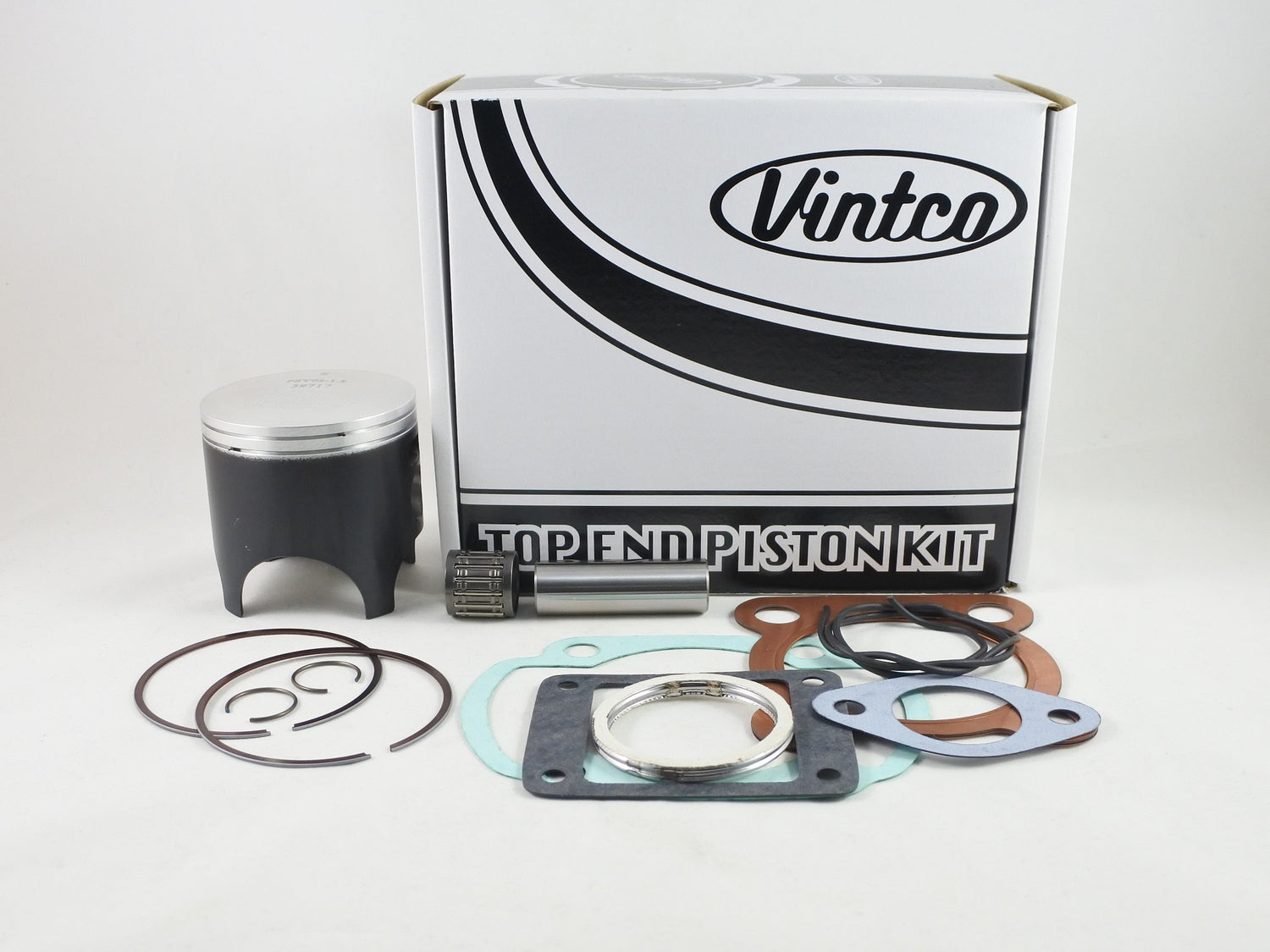

This VintCo top end piston kit is for 1972-1973 Yamaha DT2, DT3 and DT250 models and provides the main components required for a top end rebuild. The kit includes a German-made forged piston with MOS2 coating for running-in, the necessary gaskets and a wrist pin bearing, and is priced at a 10% discount compared with the individual items.

Features

• Complete top end piston kit
• Includes forged piston
• MOS2-coated piston for running-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes 2 reed valve gaskets
• Includes intake gasket
• Includes 2 exhaust pipe gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY54-1.5
• Piston size: 71.5 mm
• Piston diameter: 71.44 mm
• Clearance: 0.06 mm
• Oversize: 1.5 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 214-11181-09-00
• Cylinder base gasket: 214-11351-09-00
• Reed valve gasket: 3TT-13621-00-00
• Intake gasket: 275-13556-09-00
• Exhaust pipe gasket: 214-14613-09-00
• Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

• 1972 Yamaha DT2
• 1972 Yamaha DT250
• 1973 Yamaha DT3
• 1973 Yamaha DT250
