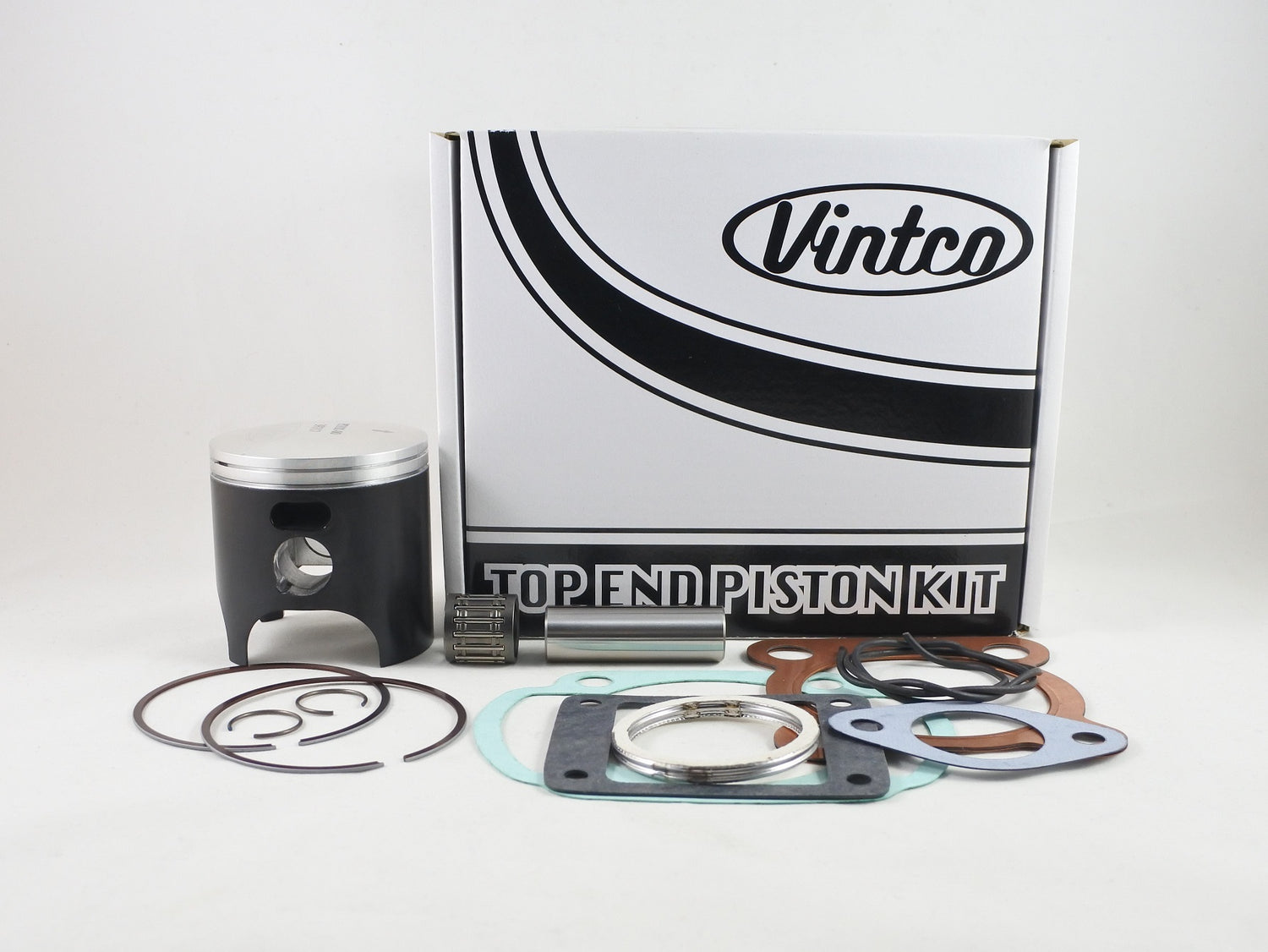

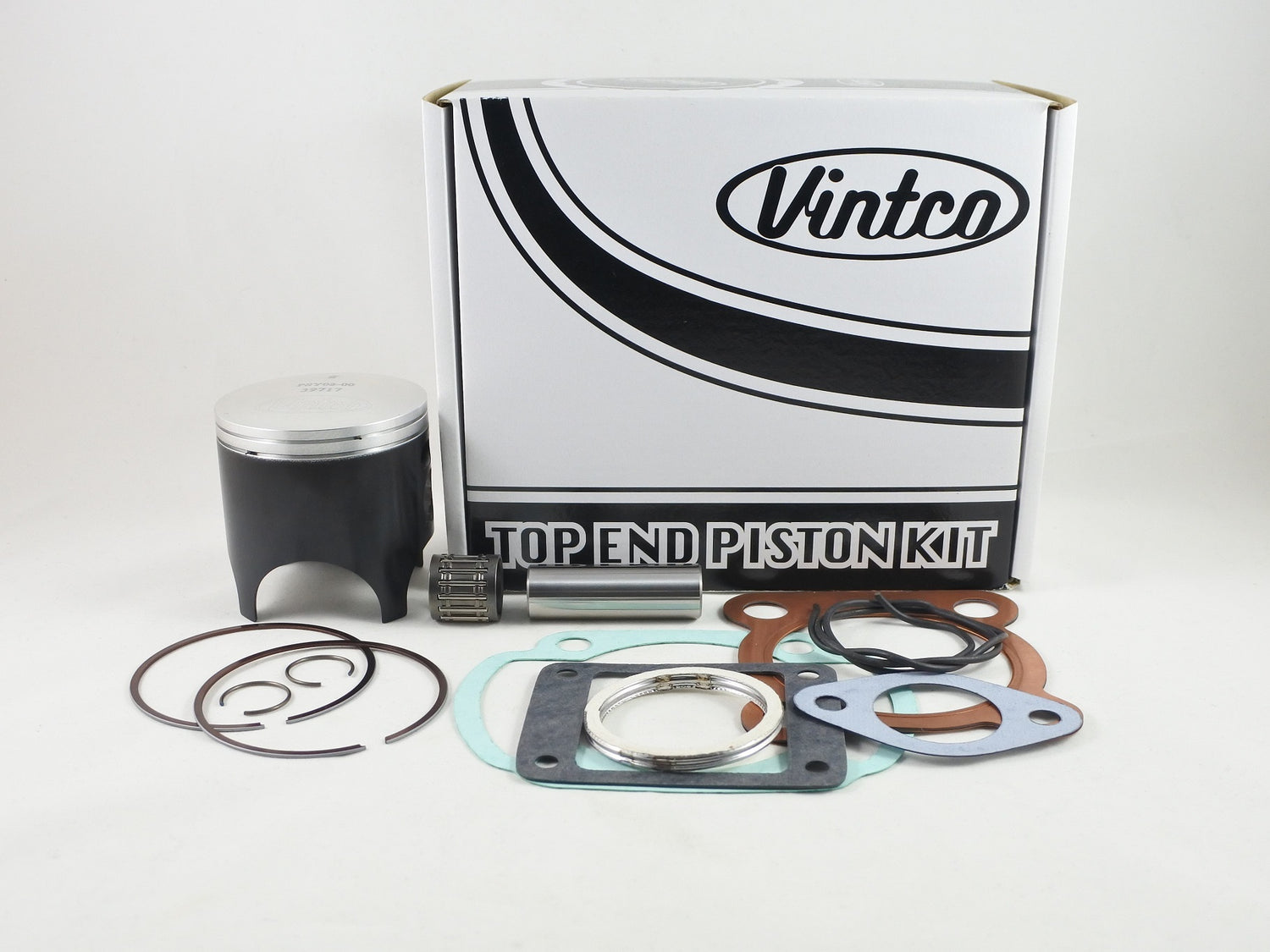

This top end piston kit is for 1972–1973 Yamaha DT2, DT3 and DT250 models. It includes a standard 70 mm forged piston made in Germany with an MOS2 coating for running-in, along with a wrist pin bearing and the required top end gaskets. Kit pricing includes a 10% saving compared with purchasing the included items separately.

Features

• Complete top end piston kit
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes 2 reed valve gaskets
• Includes intake gasket
• Includes 2 exhaust pipe gaskets
• Includes wrist pin bearing
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY54-00
• Piston size: 70 mm standard
• Piston diameter: 69.94 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 214-11181-09-00
• Cylinder base gasket: 214-11351-09-00
• Reed valve gasket: 3TT-13621-00-00
• Intake gasket: 275-13556-09-00
• Exhaust pipe gasket: 214-14613-09-00
• Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

• 1972 Yamaha DT2
• 1972 Yamaha DT250
• 1973 Yamaha DT3
• 1973 Yamaha DT250
