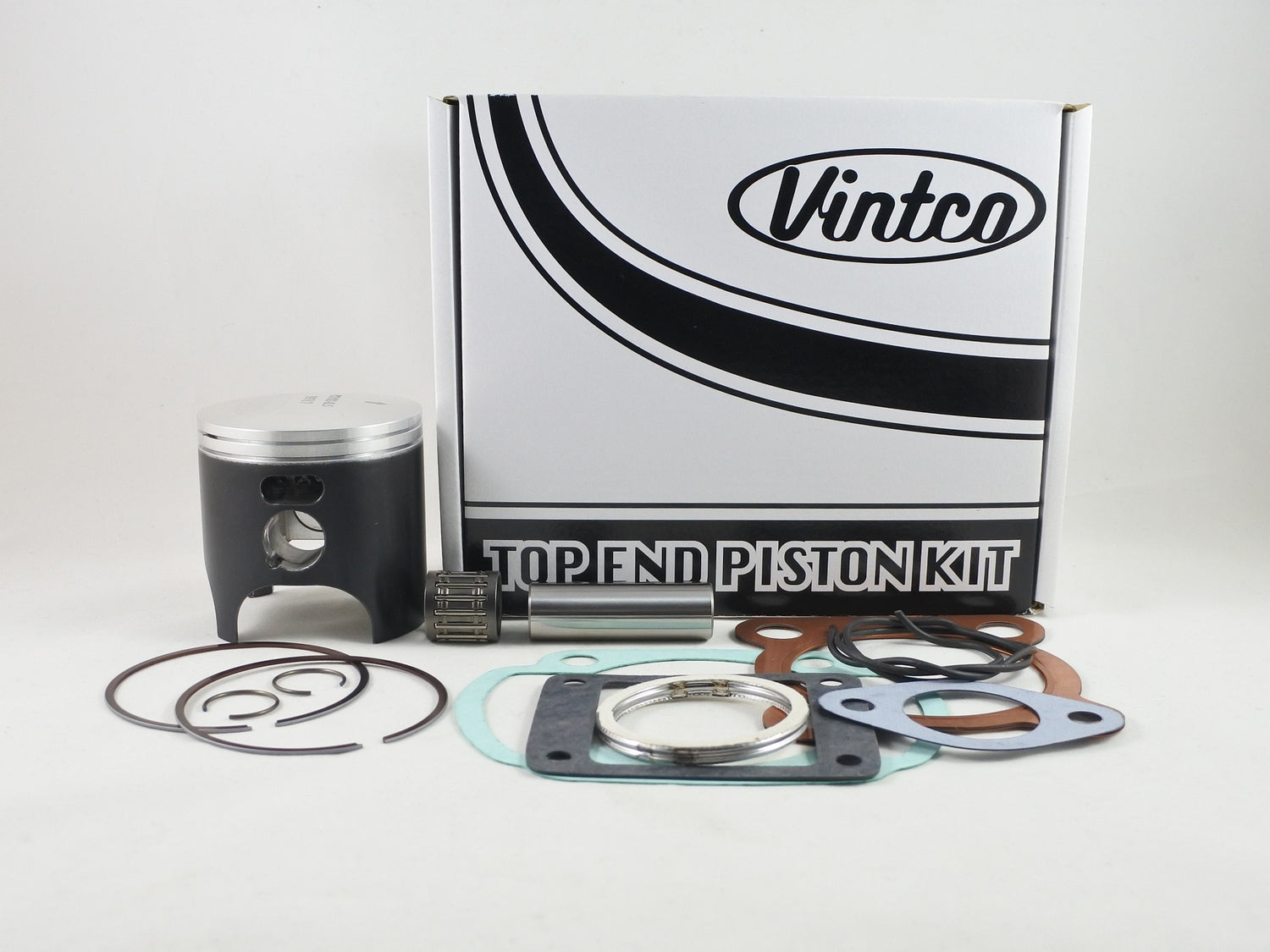

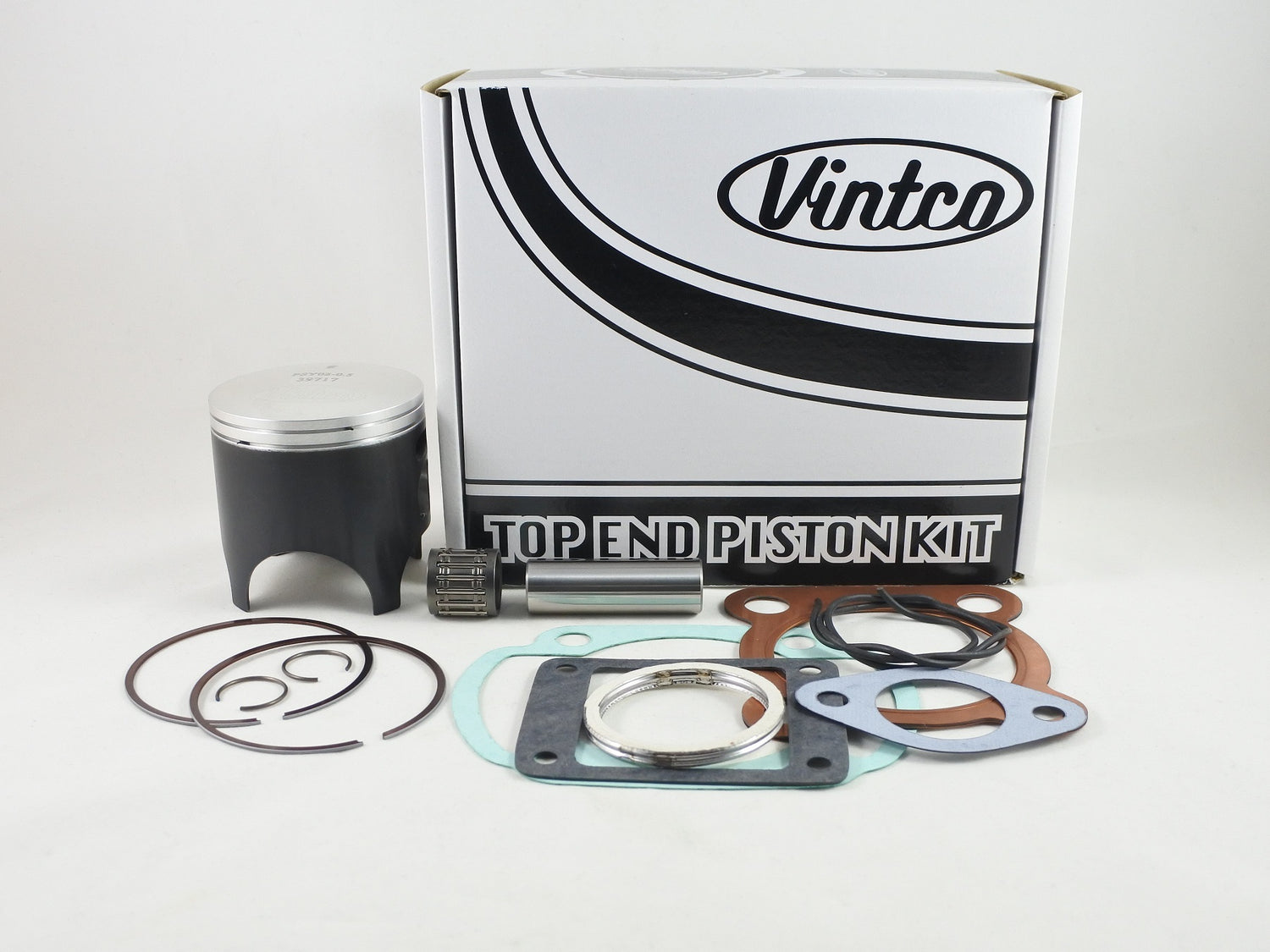

Top end piston kit for 1972-1973 Yamaha DT2, DT3 and DT250 models, supplied as a complete service kit with piston, gaskets and wrist pin bearing. The kit price includes a 10% discount compared with purchasing the individual items separately, and is supplied in 70.5 mm, 0.5 mm oversize.

Features

• Complete top end kit
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes 2 reed valve gaskets
• Includes intake gasket
• Includes 2 exhaust pipe gaskets
• Includes wrist pin bearing
• Piston coated for running-in

Specifications

• VintCo Part Number: KTY54-0.5
• Piston type: Forged
• Country of manufacture: Germany
• Piston coating: MOS2
• Oversize: 0.5 mm
• Nominal size: 70.5 mm
• Piston size: 70.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 214-11181-09-00
• Cylinder Base Gasket: 214-11351-09-00
• Reed Valve Gasket: 3TT-13621-00-00
• Intake Gasket: 275-13556-09-00
• Exhaust Pipe Gasket: 214-14613-09-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1972 Yamaha DT2
• 1972 Yamaha DT250
• 1973 Yamaha DT3
• 1973 Yamaha DT250
