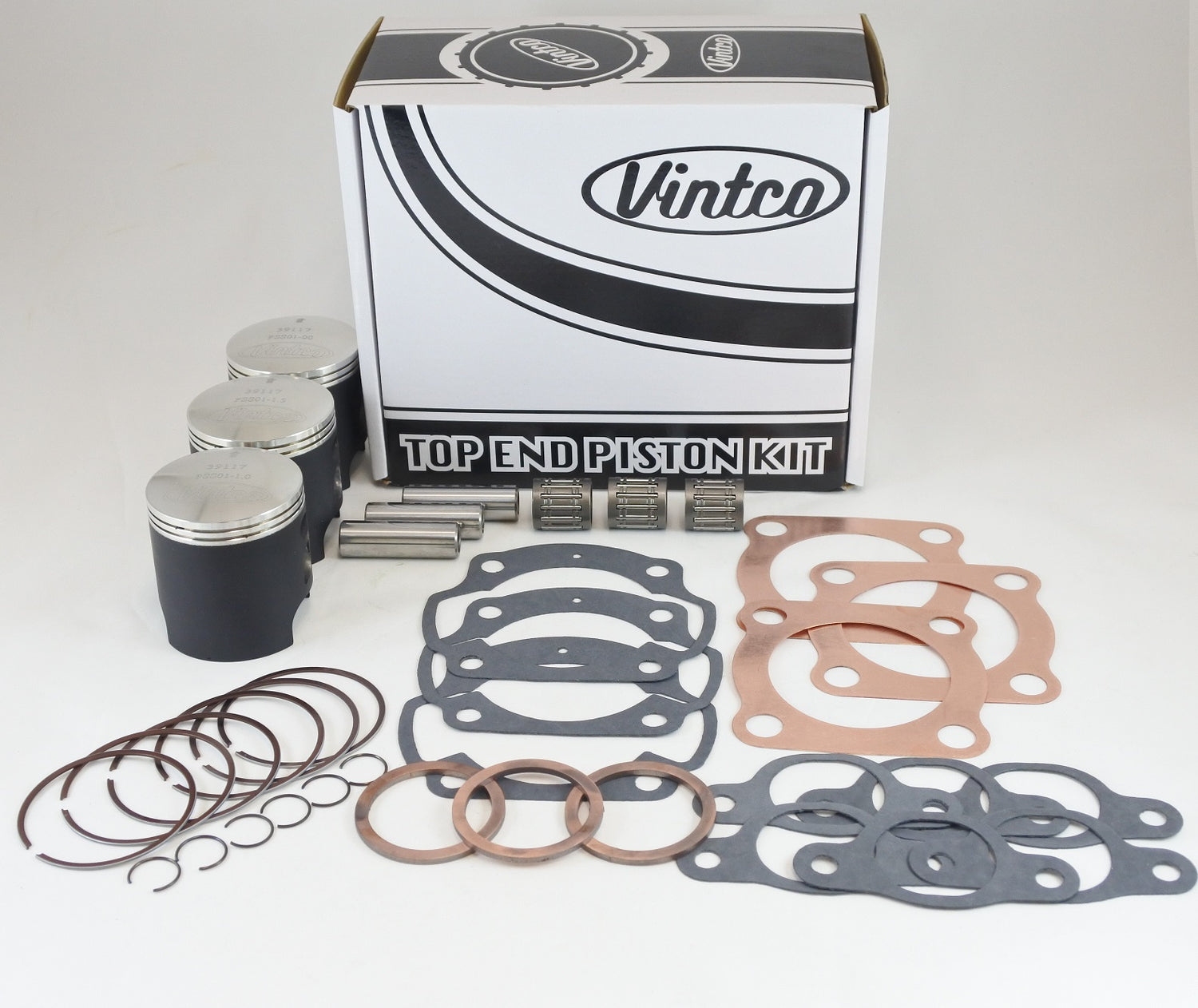

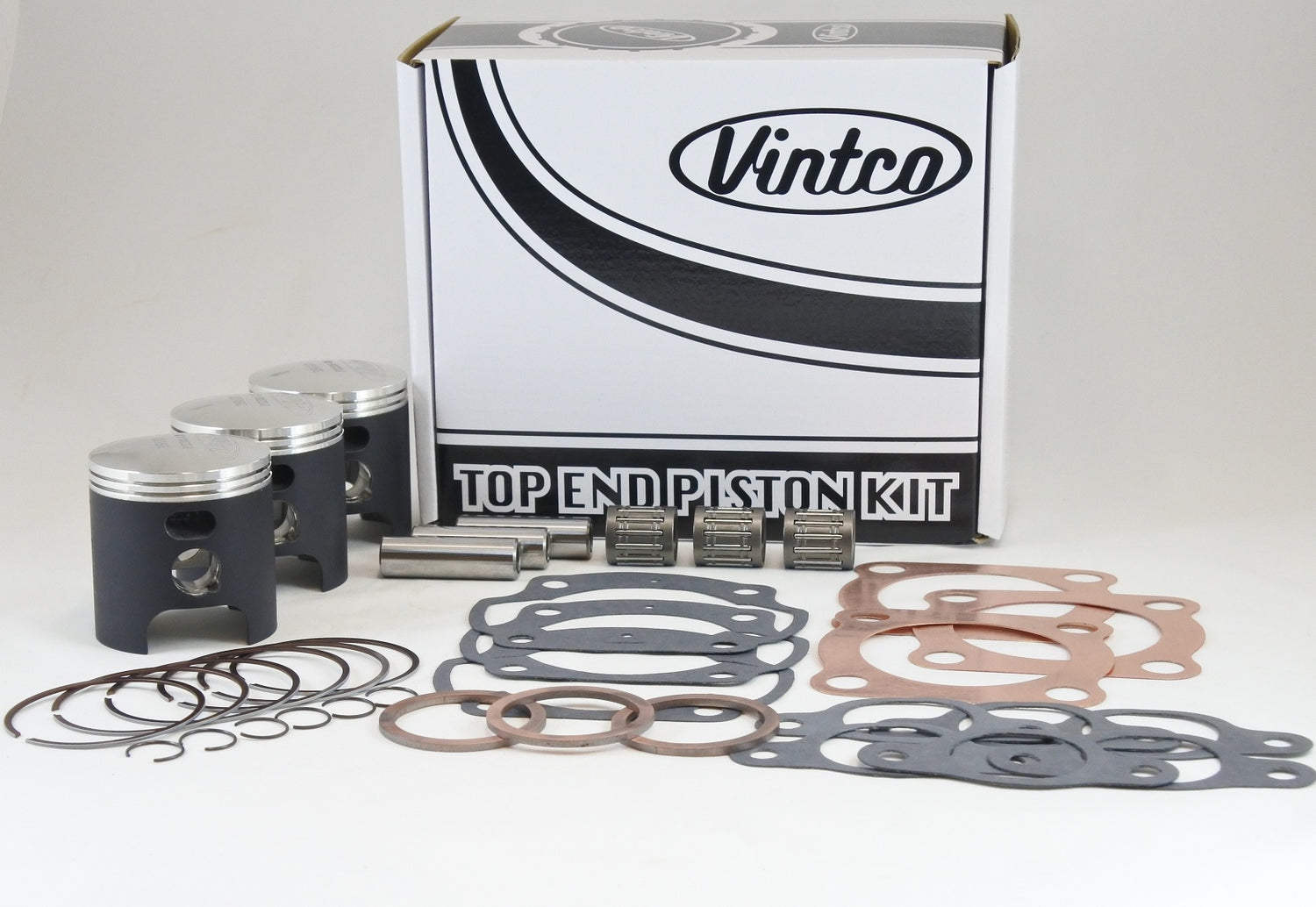

VintCo KTK01-1.0 is a top end piston kit for 1969-1973 Kawasaki H1-500 models, supplied for 61.0 mm bore applications at 1.0 mm oversize. The kit includes three piston assemblies with rings, pins and clips, three wrist pin bearings, and a complete top-end gasket set with head, base, intake and exhaust gaskets for the entire top end.

Features

• Complete top end rebuild kit for Kawasaki H1-500 models
• Includes three high-quality VintCo piston kits
• Piston kits include pistons, rings, pins and clips
• Includes top end bearings
• Includes a full top-end gasket kit
• Covers the entire top end with head, base, intake and exhaust gaskets
• Forged pistons made in Germany
• MoS2-coated pistons for running-in
• Produced with modern materials and manufacturing techniques
• Designed for OEM-equivalent or better fitment and performance
• Kit price includes a 10% discount compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK01-1.0
• Product type: Top End Piston Kit
• Bore size: 61.0 mm
• Oversize: +1.0 mm
• Piston diameter: 60.93 mm
• Clearance: 0.07 mm
• Quantity: 3 pistons
• Quantity: 3 head gaskets
• Quantity: 3 base gaskets
• Quantity: 6 intake gaskets
• Quantity: 3 exhaust gaskets
• Quantity: 3 wrist pin bearings

Cross-Reference OEM Part Numbers

• Piston: 13027-031
• Head gasket: 11004-048
• Base gasket: 11009-019
• Intake gasket: 16062-011
• Exhaust gasket: 18067-008
• Wrist pin bearing: 93310-216E1-00

Vehicle Fitments

• 1969 Kawasaki H1-500
• 1970 Kawasaki H1-500
• 1971 Kawasaki H1-500
• 1972 Kawasaki H1-500
• 1973 Kawasaki H1-500
