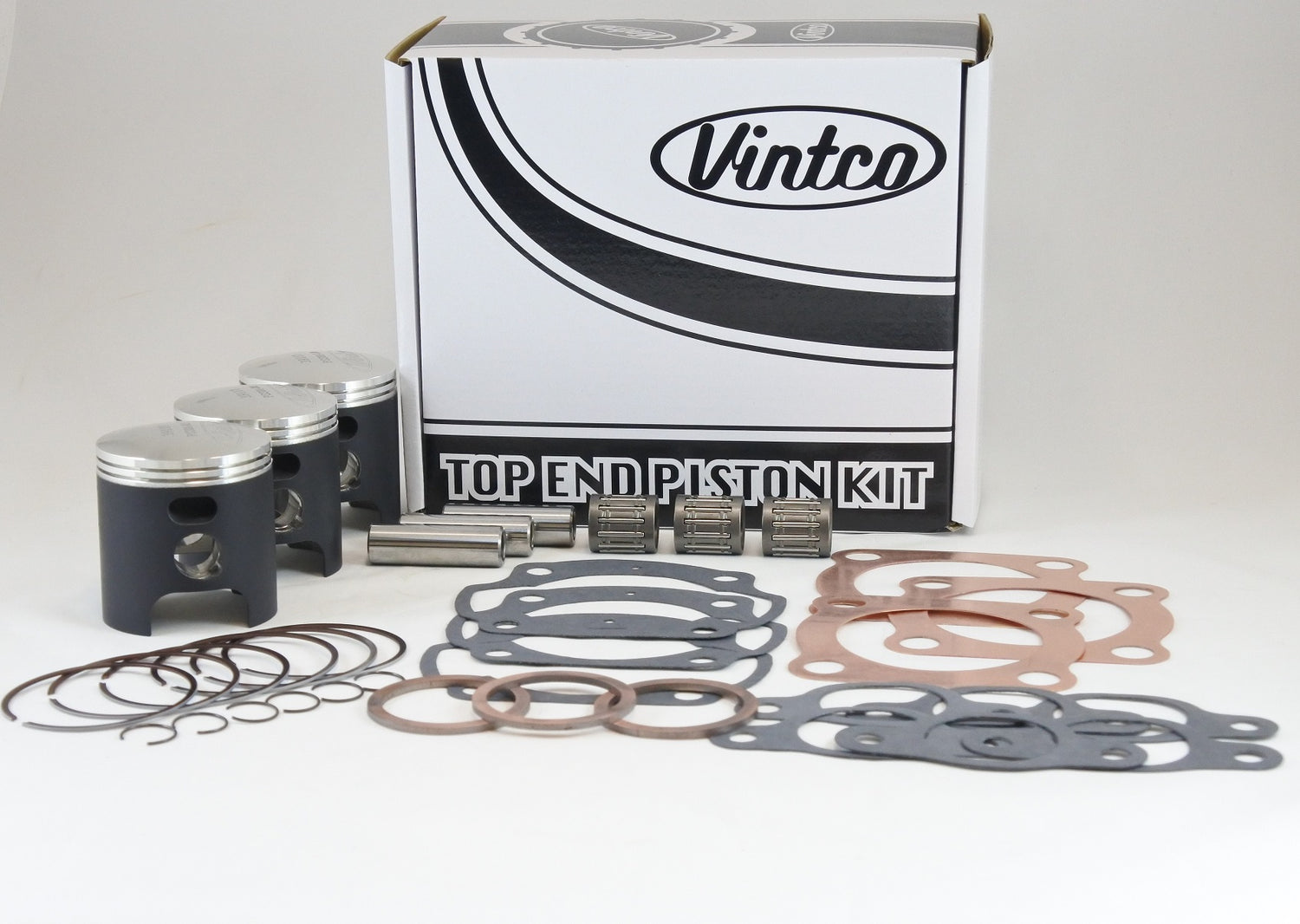

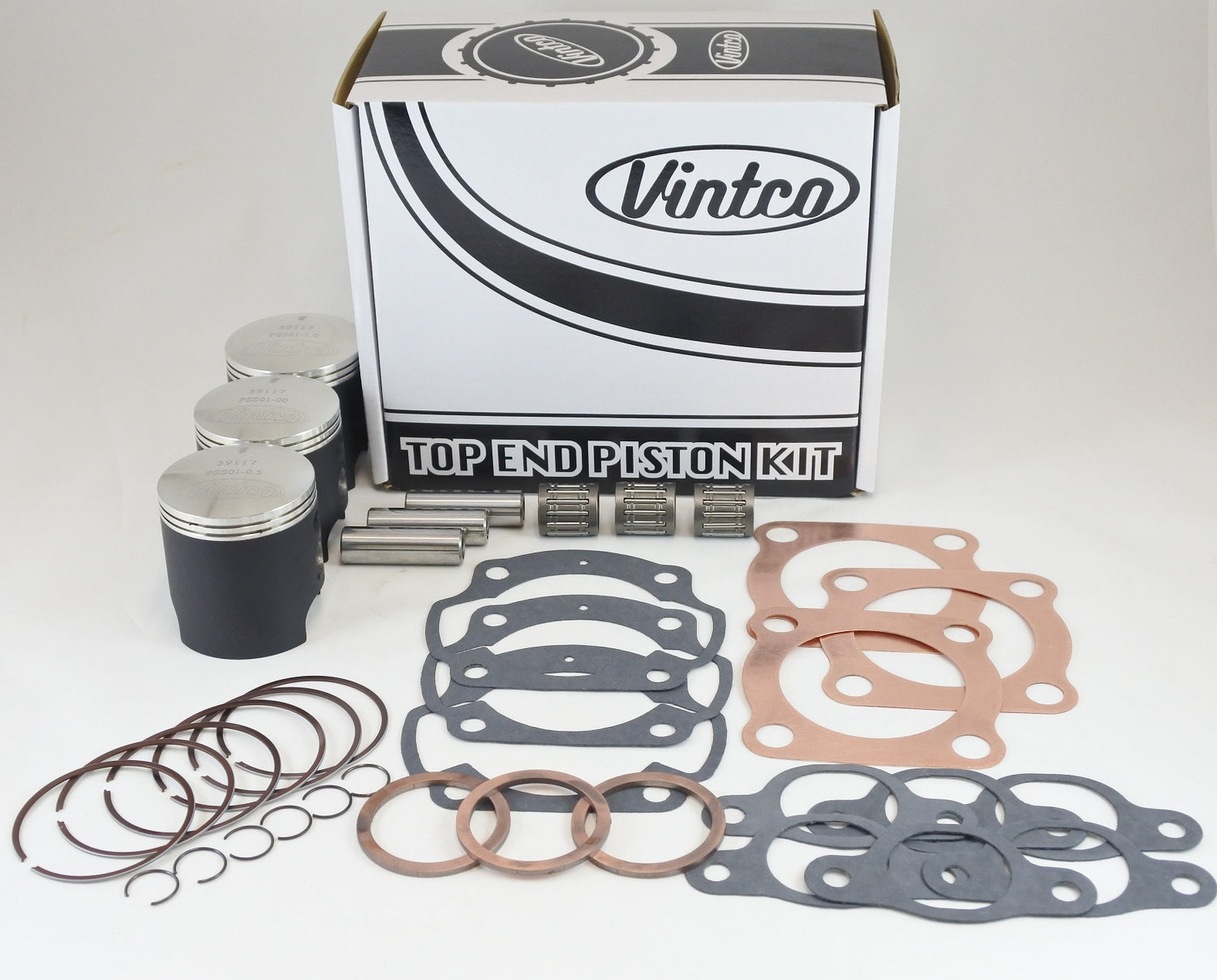

This VintCo top end piston kit is a complete rebuild set for Kawasaki H1-500 models from 1969 to 1973. It is supplied as an oversize kit for top end servicing and includes piston assemblies, wrist pin bearings and a full top-end gasket set for the entire engine top end. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent fitment and performance. Kit pricing is 10% lower than purchasing the included components individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston assemblies with rings, pins and clips
• Includes wrist pin bearings
• Includes full top-end gasket set
• Covers the entire engine top end
• MoS2-coated pistons for break-in
• OEM part numbers provided for fitment verification
• Additional size options available

Specifications

• VintCo Part Number: KTK01-0.5
• Application: Kawasaki H1-500 top end piston kit
• Piston size: 60.5 mm
• Oversize: +0.5 mm over
• Piston diameter listed: 60.43 mm
• Piston clearance: 0.07 mm
• Pistons included: 3
• Head gaskets included: 3
• Base gaskets included: 3
• Intake gaskets included: 6
• Exhaust gaskets included: 3
• Wrist pin bearings included: 3
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Pistons: 13029-031
• Head gasket: 11004-048
• Base gasket: 11009-019
• Intake gasket: 16062-011
• Exhaust gasket: 18067-008
• Wrist pin bearing: 93310-216E1-00

Vehicle Fitments

• 1969 Kawasaki H1-500
• 1970 Kawasaki H1-500
• 1971 Kawasaki H1-500
• 1972 Kawasaki H1-500
• 1973 Kawasaki H1-500
