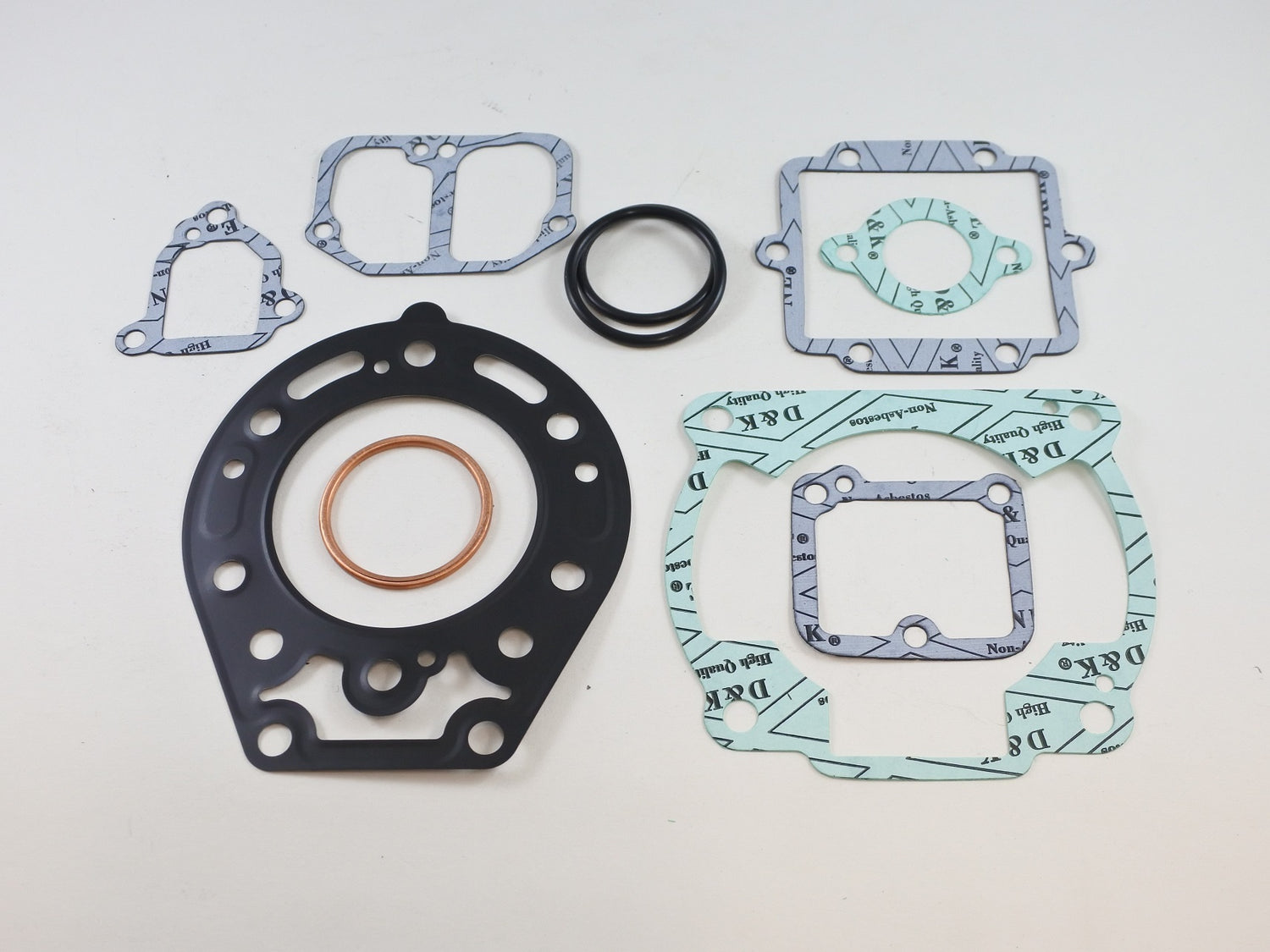

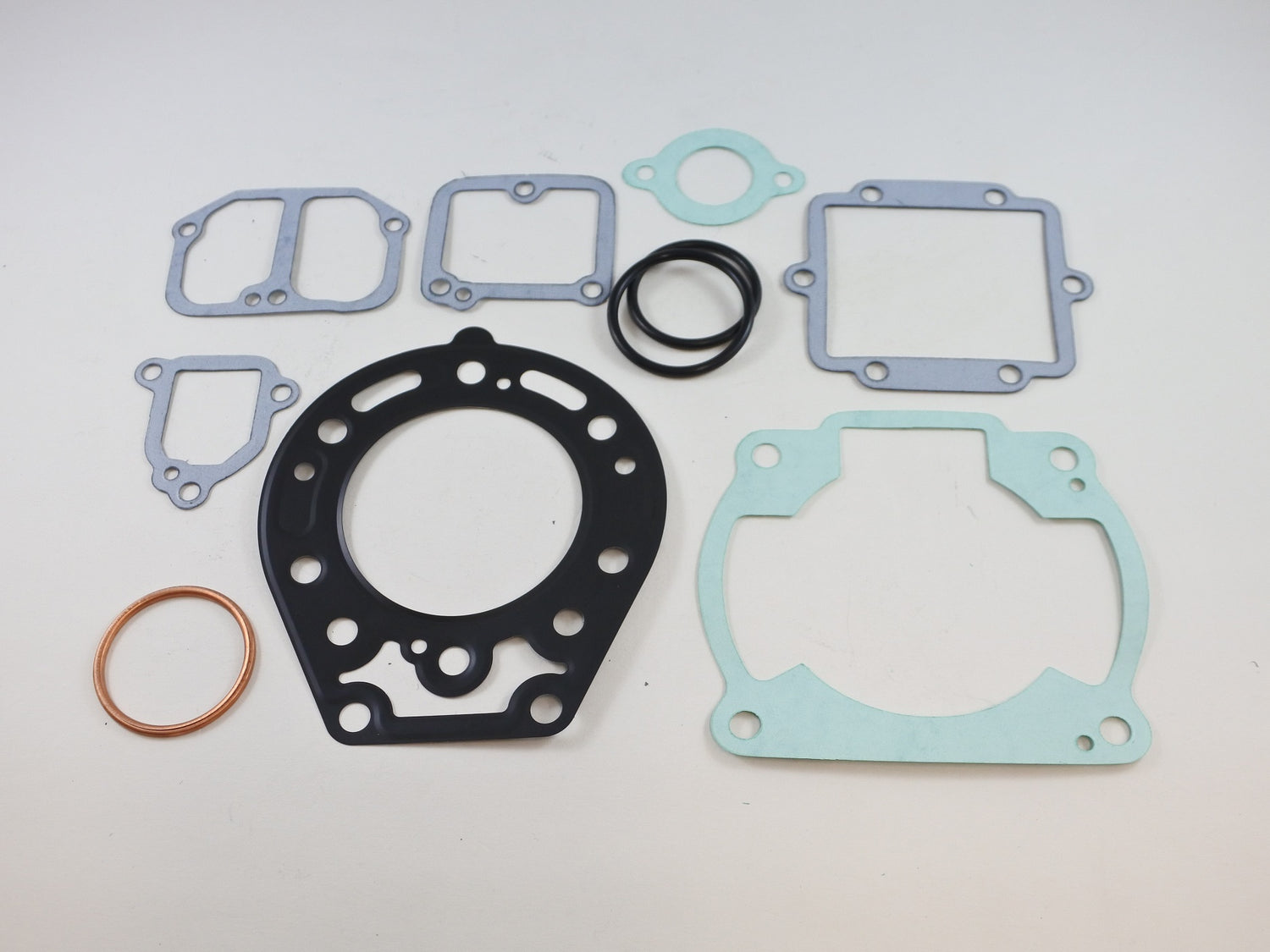

Top end gasket kit for 1997-2005 Kawasaki KDX220 models, comprising the main sealing components required for top-end service, including cylinder head, cylinder base, intake, exhaust pipe and cylinder cover gaskets, along with exhaust pipe O-rings.

Features

• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes exhaust pipe O-rings
• Includes cylinder cover gaskets
• Suitable for top-end engine service on Kawasaki KDX220 models

Specifications

• VintCo Part Number: KTE182

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11004-1299
• Cylinder Base Gasket: 11060-1659
• Intake Gasket: 11009-1941
• Exhaust Pipe Gasket: 11009-1995
• Exhaust Pipe O-Rings (x2): 670E3039
• Cylinder Cover Gasket: 11060-1629
• Cylinder Cover Gasket: 11060-1628
• Cylinder Cover Gasket: 11009-1993
• Cylinder Cover Gasket: 11060-1627

Vehicle Fitments

• 1997 Kawasaki KDX220
• 1998 Kawasaki KDX220
• 1999 Kawasaki KDX220
• 2000 Kawasaki KDX220
• 2001 Kawasaki KDX220
• 2002 Kawasaki KDX220
• 2003 Kawasaki KDX220
• 2004 Kawasaki KDX220
• 2005 Kawasaki KDX220
