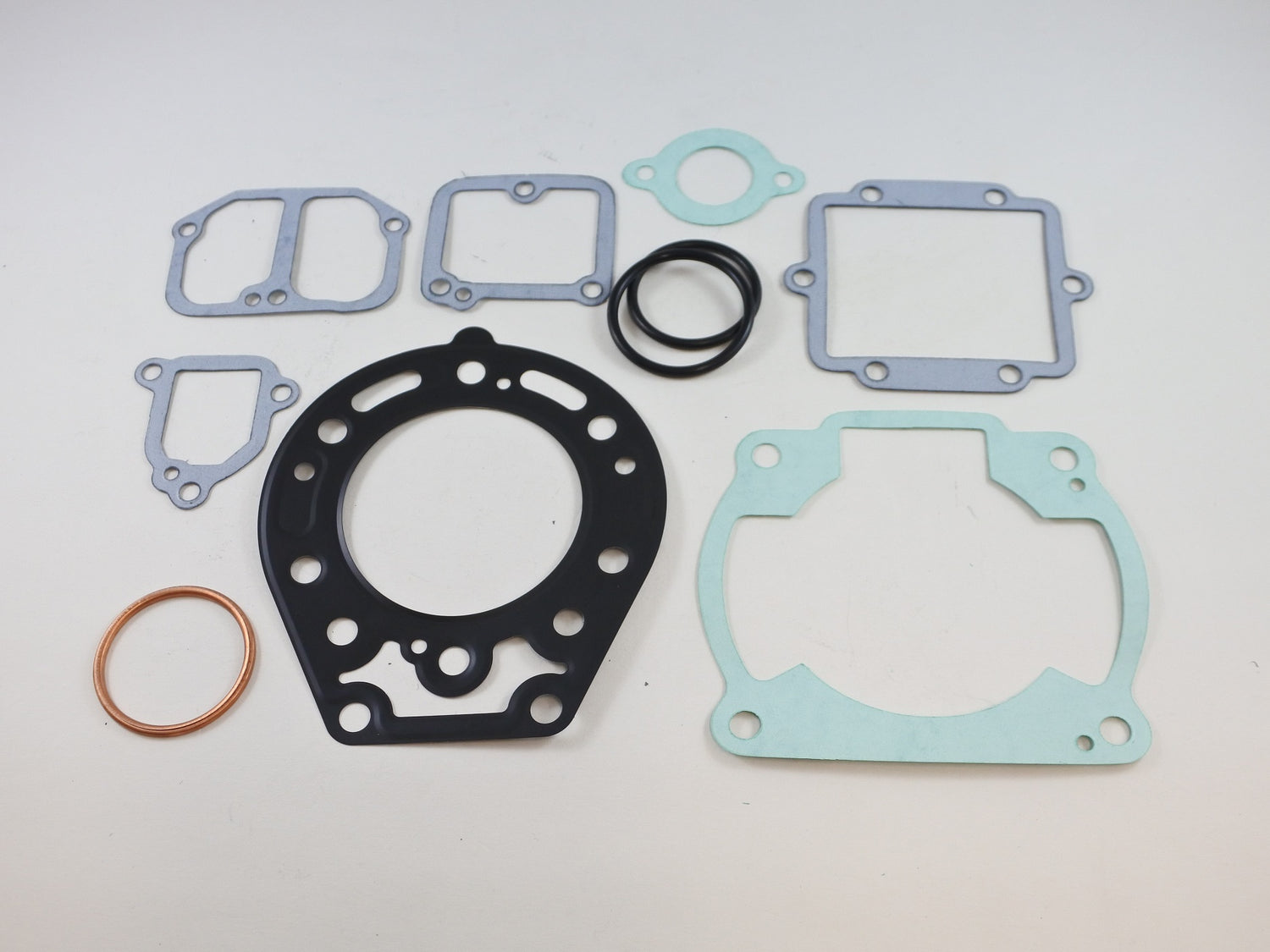

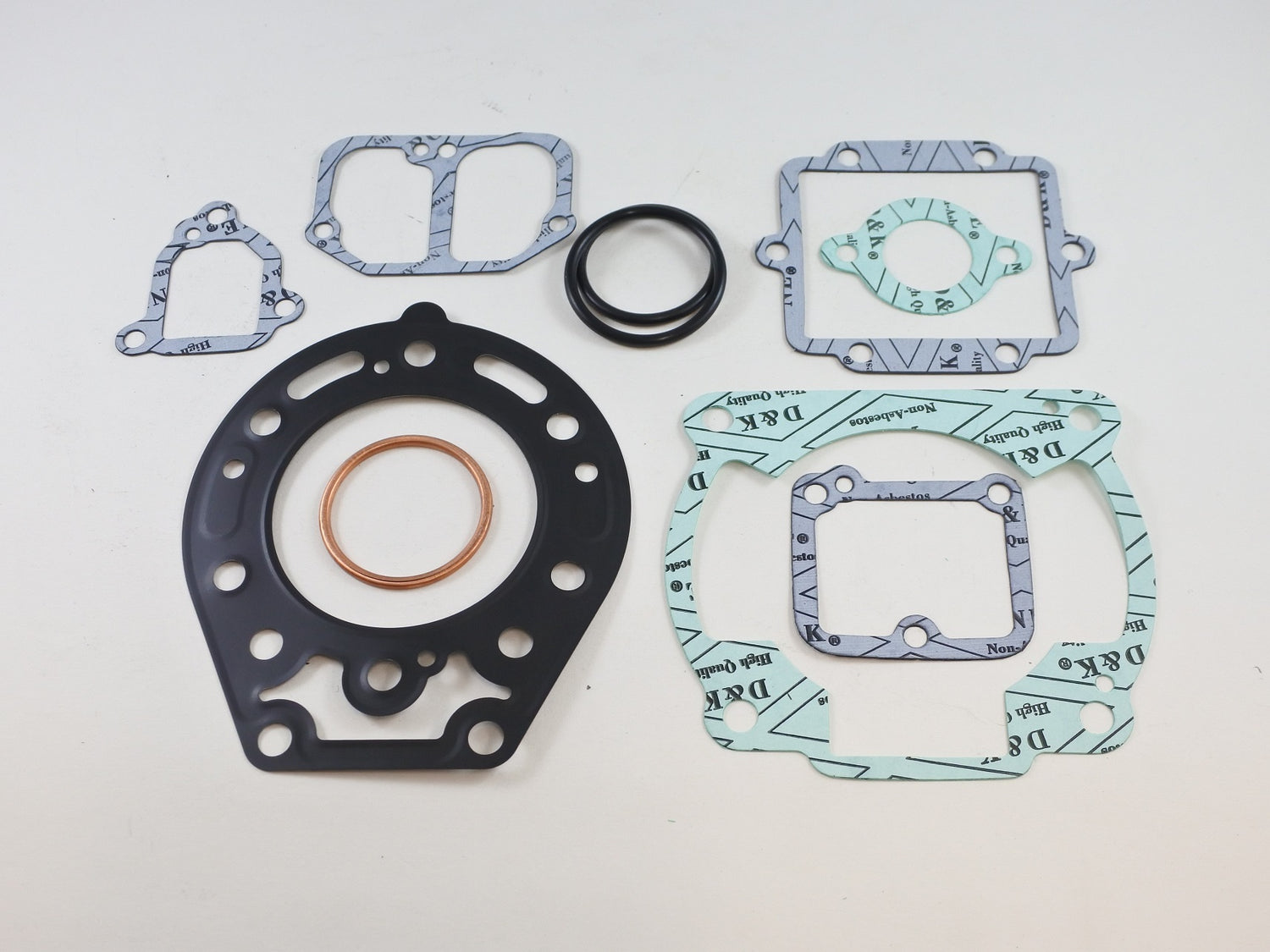

VintCo KTE181 is a top-end gasket kit for 1995-2006 Kawasaki KDX200 models, intended for top-end engine service and replacement of key sealing components. The kit includes a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, two exhaust pipe O-rings, and four cylinder cover gaskets.

Features

• Replacement gasket kit for top-end engine service
• Covers cylinder head, cylinder base, intake, exhaust pipe and cylinder cover sealing points
• Includes two exhaust pipe O-rings
• Intended for 1995-2006 Kawasaki KDX200 models

Specifications

• VintCo Part Number: KTE181
• Product Type: Top-end gasket kit
• Total Pieces: 10

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11004-1298
• Cylinder Base Gasket: 11060-1659
• Intake Gasket: 11009-1941
• Exhaust Pipe Gasket: 11009-1995
• Exhaust Pipe O-Ring (x2): 670E3039
• Cylinder Cover Gasket: 11060-1629
• Cylinder Cover Gasket: 11060-1628
• Cylinder Cover Gasket: 11009-1993
• Cylinder Cover Gasket: 11060-1627

Vehicle Fitments

• 1995 Kawasaki KDX200
• 1996 Kawasaki KDX200
• 1997 Kawasaki KDX200
• 1998 Kawasaki KDX200
• 1999 Kawasaki KDX200
• 2000 Kawasaki KDX200
• 2001 Kawasaki KDX200
• 2002 Kawasaki KDX200
• 2003 Kawasaki KDX200
• 2004 Kawasaki KDX200
• 2005 Kawasaki KDX200
• 2006 Kawasaki KDX200
